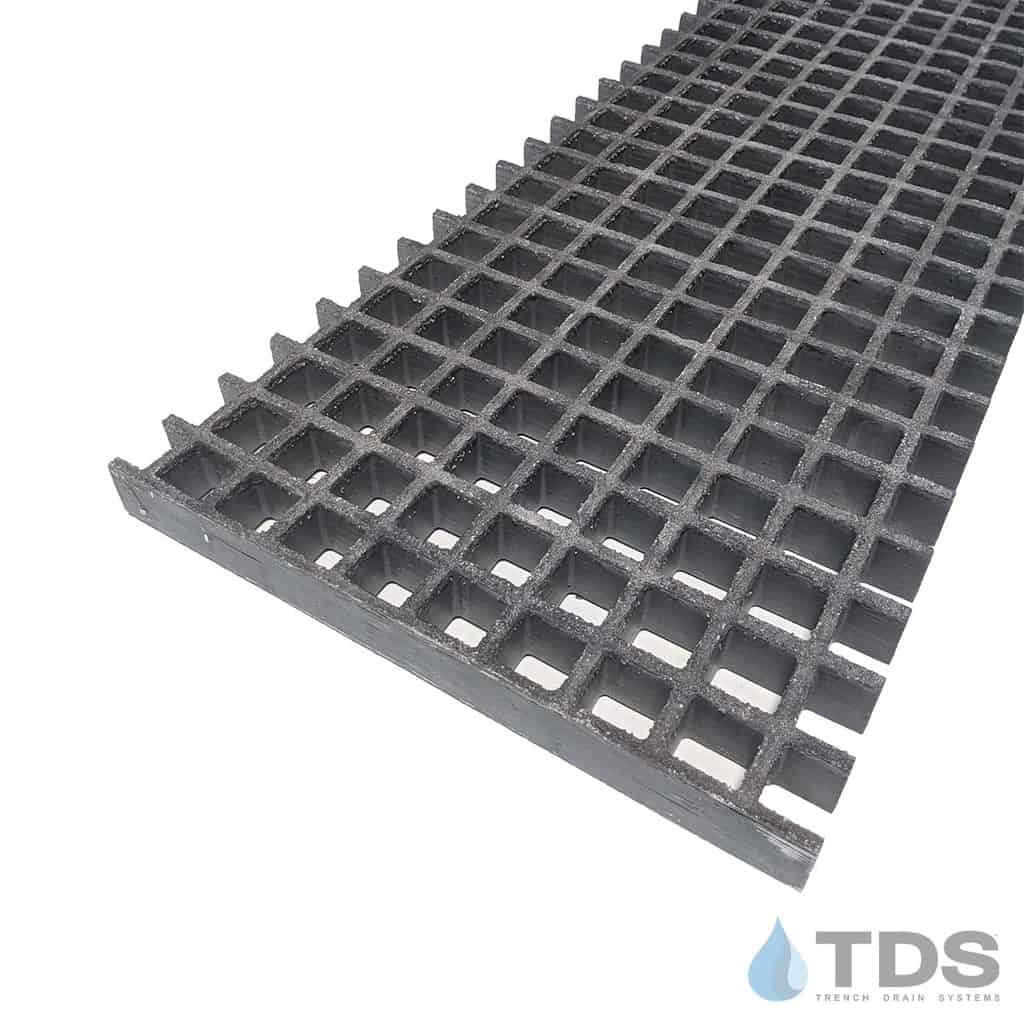

FG-MESH-1448 Mesh Fiberglass 14"X48" x1.5" Grate Load Class C

Fiberglass mesh grate

Actual grate dimensions: 14″ x 48″ x 1.5″

Load Class C

The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. Actual grate width is 14 inches. This grate, when properly installed, has a load class C traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels.

FG-MESH-1448 Specification Sheet

FG-734250 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)

Benefits of Fiberglass Mesh Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Load class C rating
• Grate open area of 70%
• Grate openings 1.25" x 1.25" (1.5" x 1.5")
• Grate depth 1.5"

* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
