FG-MESH-1048 Mesh Fiberglass 10" X 48"x1.5" Grate Load Class C

Grate Width: 10.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - 1.50" Sq Mesh

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: Fibergrate Kit

Grate Load Class: Class A

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Fibergrate - WYE and Frame - Fibergrate - EZ

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

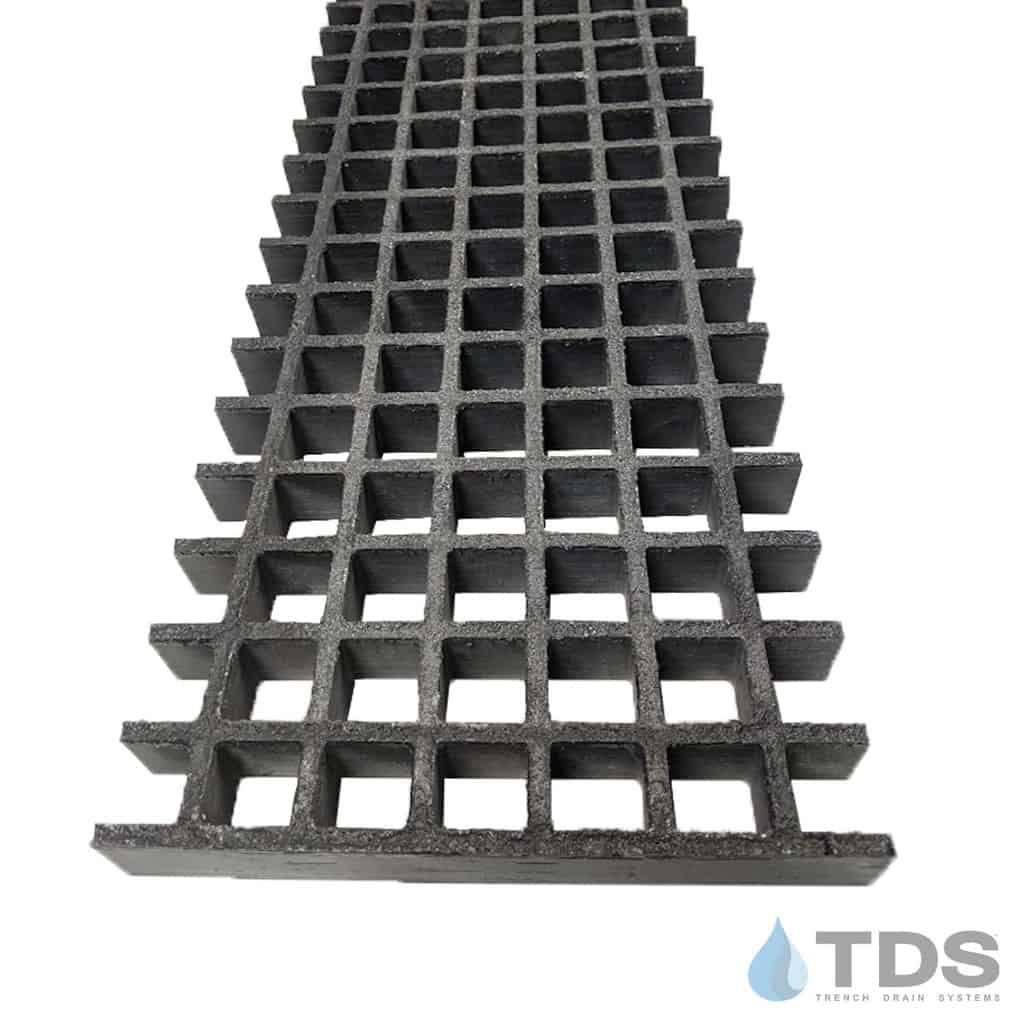

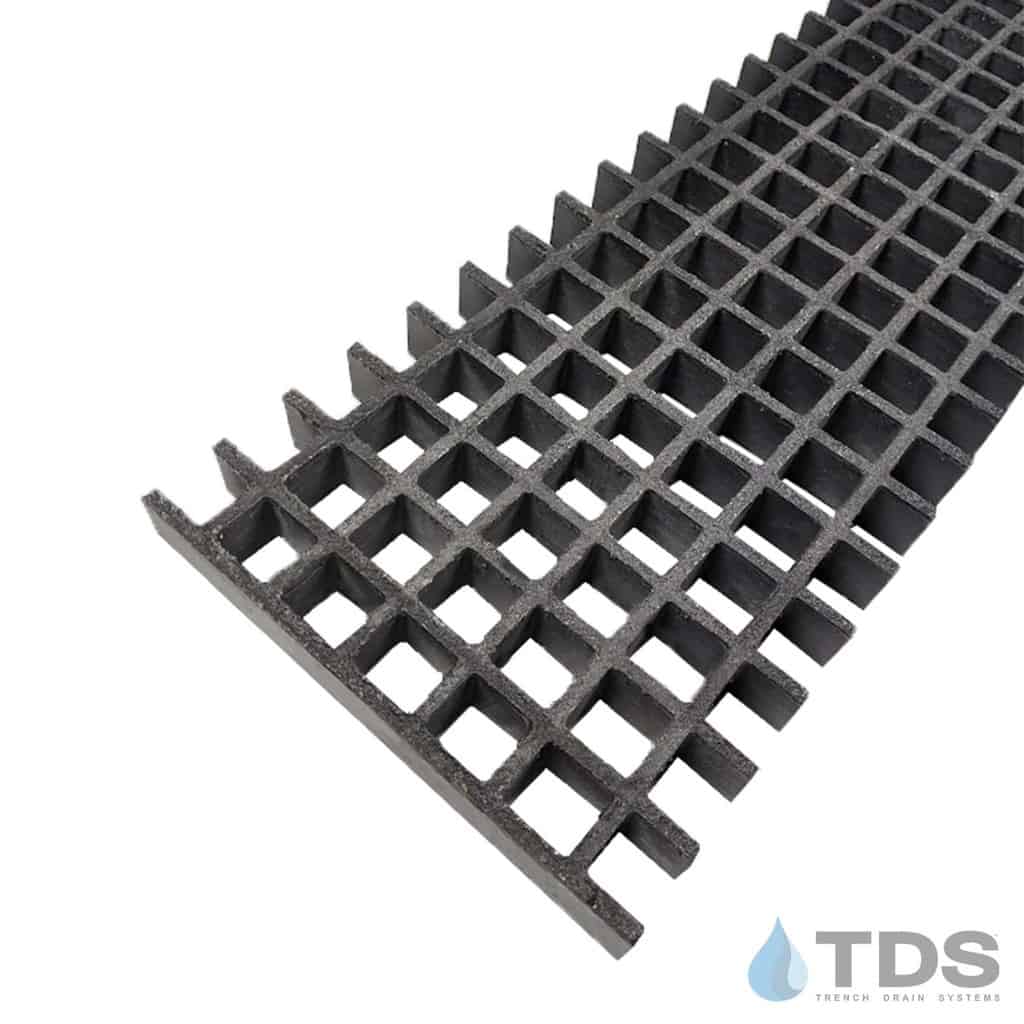

Fiberglass mesh grate

Actual grate dimensions: 10″ x 48″ x 1.5″

The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. Actual grate width is 10 inches with a height of 1.5". This grate, when properly installed, has a load class C traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels.

FG-MESH-1048 Specification Sheet

FG-734250 Locking devices (4 per grate) sold separately - Requires 1/4-20 hardware (not included)

Benefits of Fiberglass Mesh Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Load class C rating*
• Grate open area of 70%
• Grate openings 1.25" x 1.25" (1.5" x 1.5")
• Grate depth 1.5"

* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
