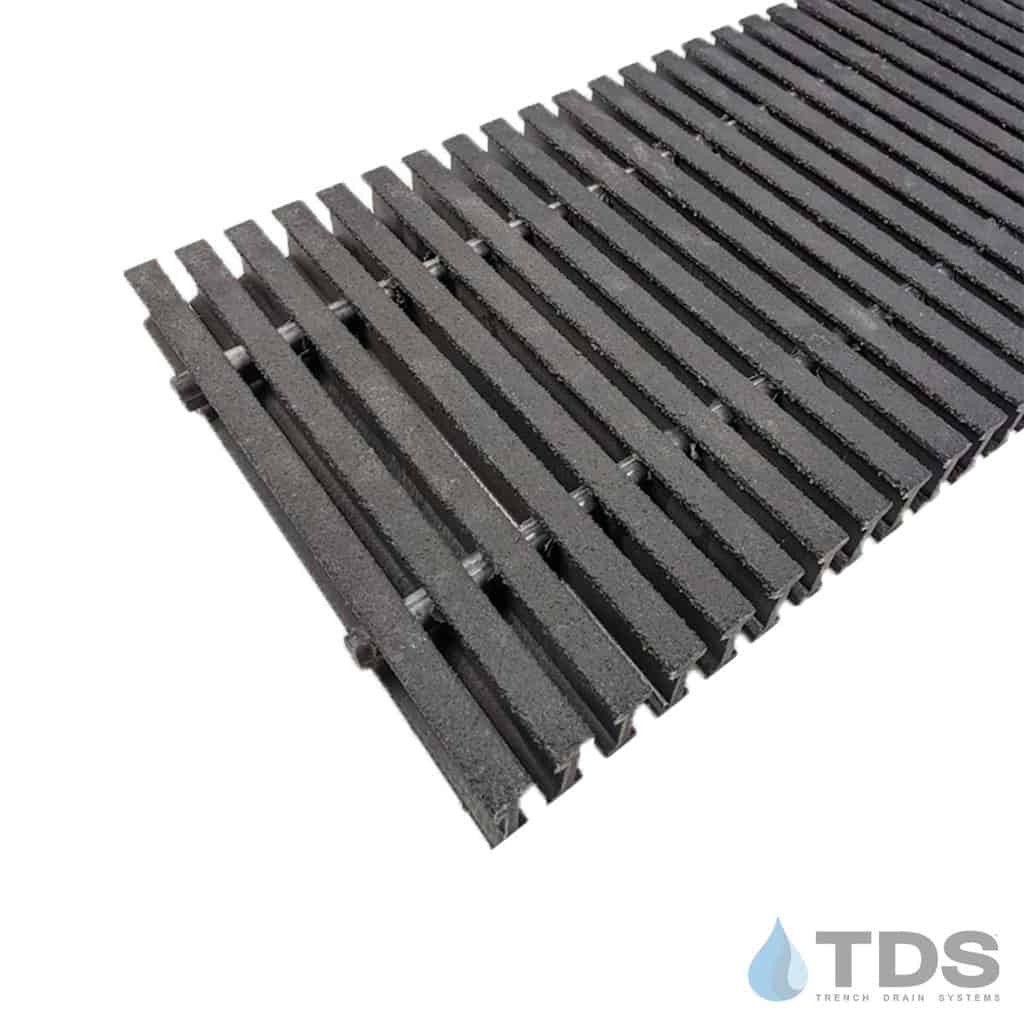

The FG-I4015-1248 fiberglass I-Bar grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. It is lightweight and made of safe-T span grating manufactured from a fire-retardant isophthalic polyester resin (ISOFR).
The high percentage of glass provides durability and high unidirectional strength and stiffness, making this the ideal product for applications where longer support spans are required, such as roadways and parking areas. Support loads in the span direction only. When properly installed, this grate has a Load Class C traffic rating.
The grate has an open area of 40% and is ADA-compliant.
Actual dimensions: 12"W x 48"L x 1.5"H
FG-I4015-1248 Specification Sheet
FG-734300 Locking devices ( 4 per grate) are sold separately. - Accepts 1/4-20 hardware
(not included)
Benefits of Fiberglass I-Bar Grate:
