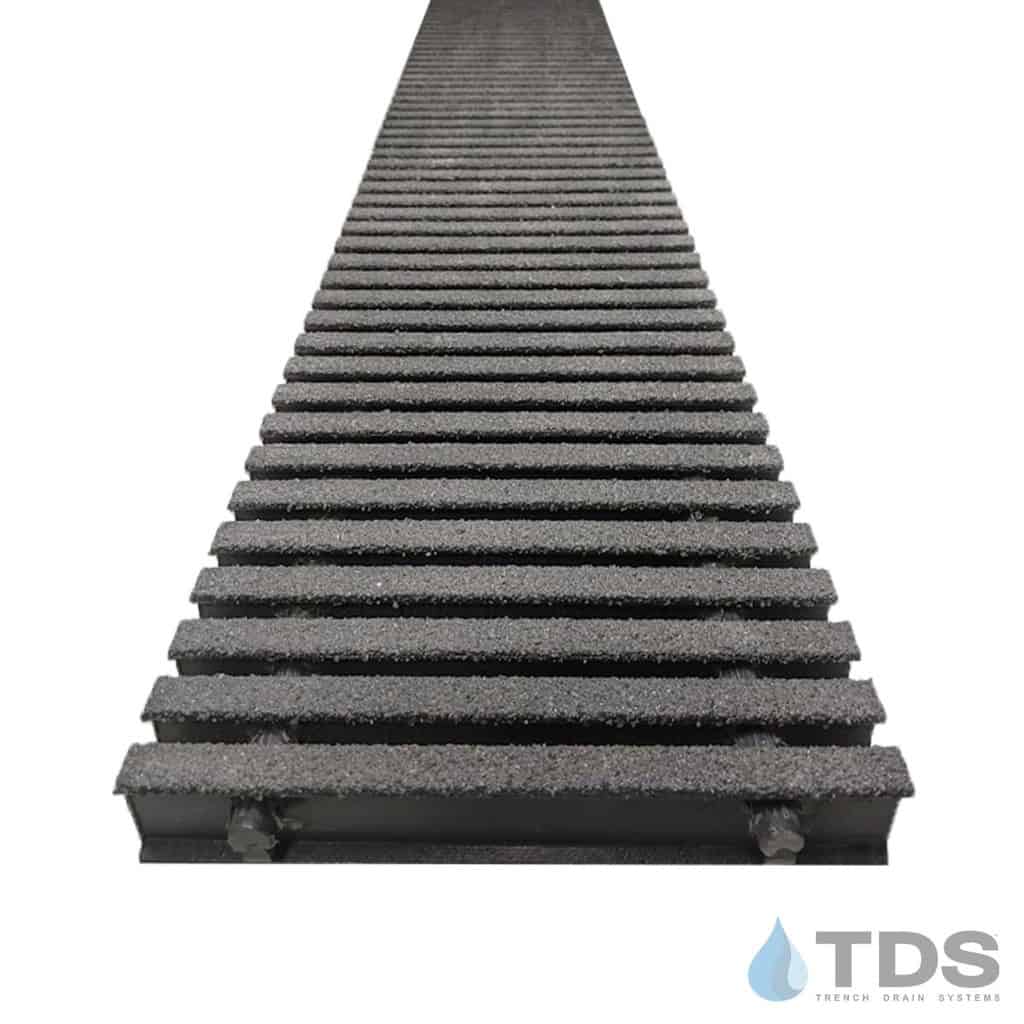

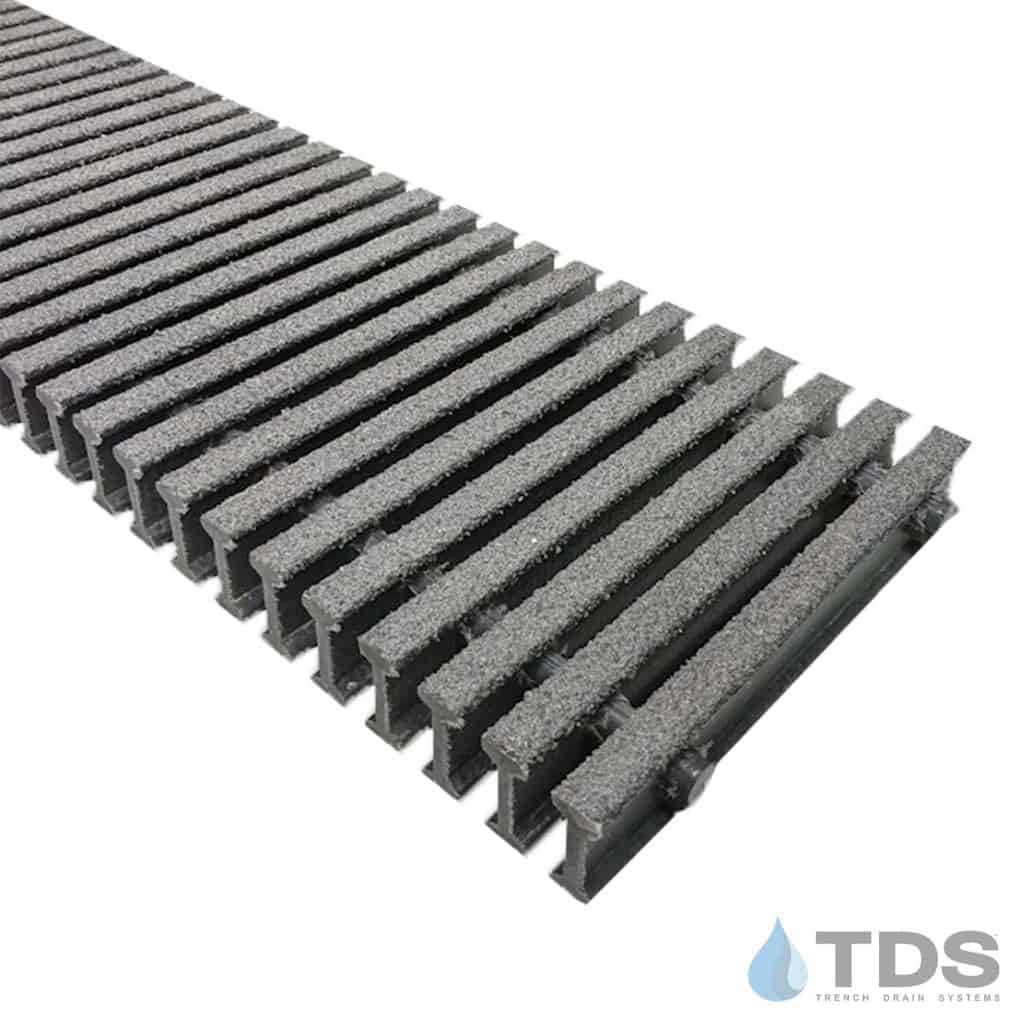

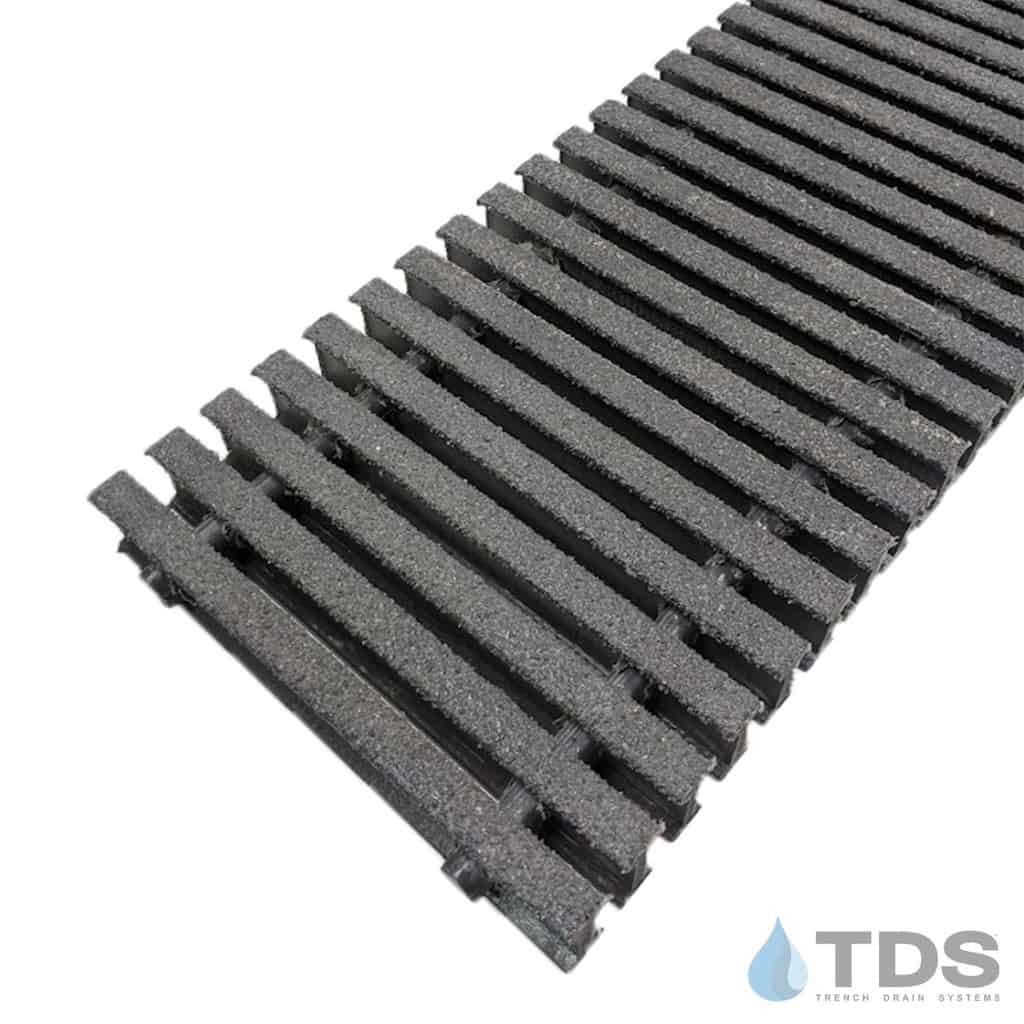

FG-I4015-0948 Fiberglass I-Bar Grate 9"X48" Grate Load Class C

Grate Width: 9.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - I-Bar

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: Fibergrate Kit

Grate Load Class: Class C

Grate Pattern: I-BAR

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Fibergrate - WYE and Frame - Fibergrate - EZ

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

The FG-I4015-0948 fiberglass I-Bar grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. It is lightweight and made of safe-T span grating manufactured from a fire-retardant isophthalic polyester resin (ISOFR). The high percentage of glass provides durability and high unidirectional strength and stiffness, making this the ideal product for applications where longer support spans are required, such as roadways and parking areas. Support loads in the span direction only. When properly installed, it has a load class C traffic rating.FG-734300 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)

Actual dimensions: 9"W x 48"L x 1.5"H

FG-I4015-0948 Specification Sheet

Benefits of Fiberglass I-Bar Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Load class C rating
• Grate depth 1.5"
• Grate open area of 40%
• Grate openings 0.4"
• ADA compliant
