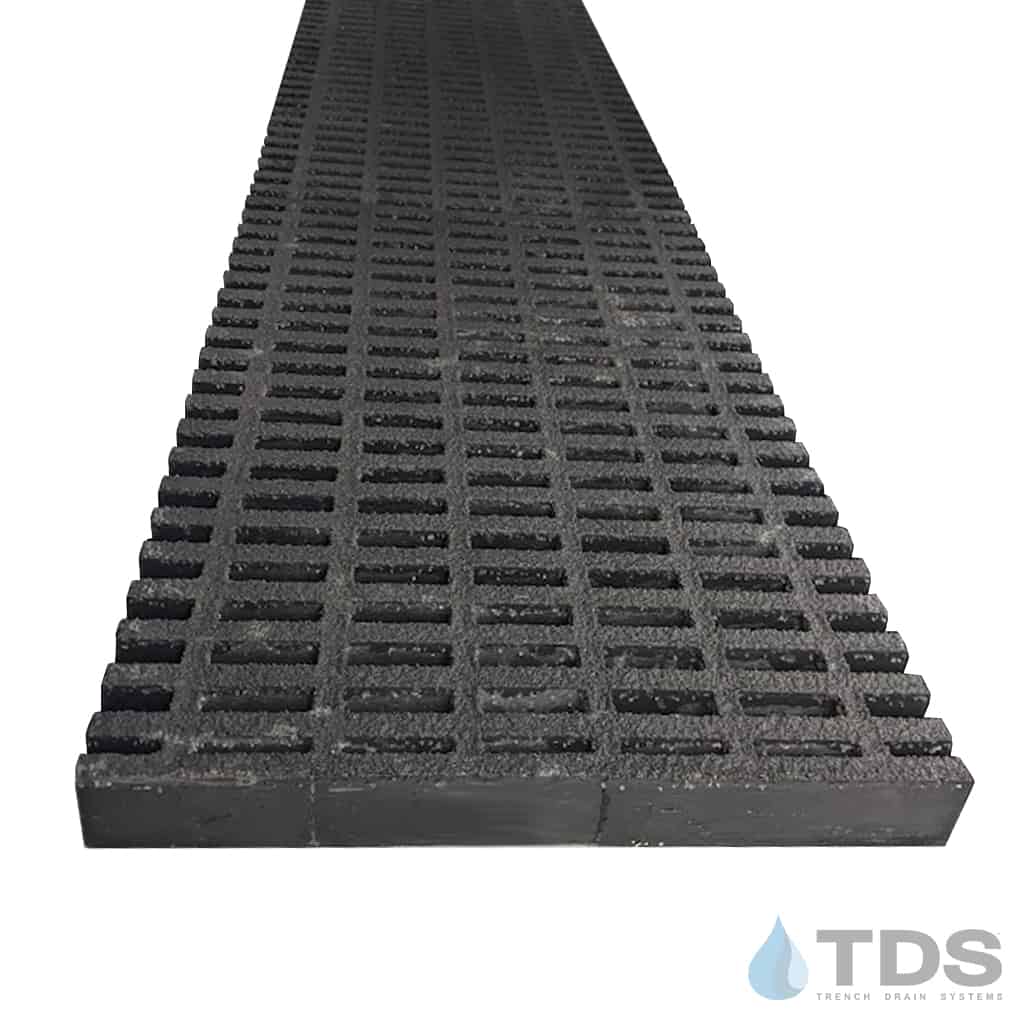

FG-HLC-1248 Mesh Fiberglass 12"X48" Grate Load Class C

Grate Width: 12.33"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - 1.00" x 2.00" HLC

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: Fibergrate Kit

Grate Load Class: Class C

Grate Pattern: HLC

Grate Pattern Style: INDUSTRIAL

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Fibergrate - WYE and Frame - Fibergrate - EZ

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Fiberglass High Load Capacity (HLC) grate

Actual grate dimensions: 12.33″ x 48″ x 1.5″

Load Class C

The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. The actual grate width is 12.33 inches. This grate, when properly installed, has a Load Class C traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels.

FG-HLC-1248 Specification Sheet

FG-734891 Locking devices sold separately (4 per grate)- Requires 1/4-20 hardware (not included)

Fiberglass Kit Installation Guide

Benefits of Fiberglass HLC Mesh Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Load class C rating
• Grate open area of 48%
• Grate openings 0.57" x 1.67" (1"x2")
• Grate depth 1.5"
