FG-HLC-1048 Mesh Fiberglass 10" X 48" Grate | Load Class C

Grate Width: 10.33"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - 1.00" x 2.00" HLC

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: Fibergrate Kit

Grate Load Class: Class C

Grate Pattern: HLC

Grate Pattern Style: INDUSTRIAL

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Fibergrate - WYE and Frame - Fibergrate - EZ

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

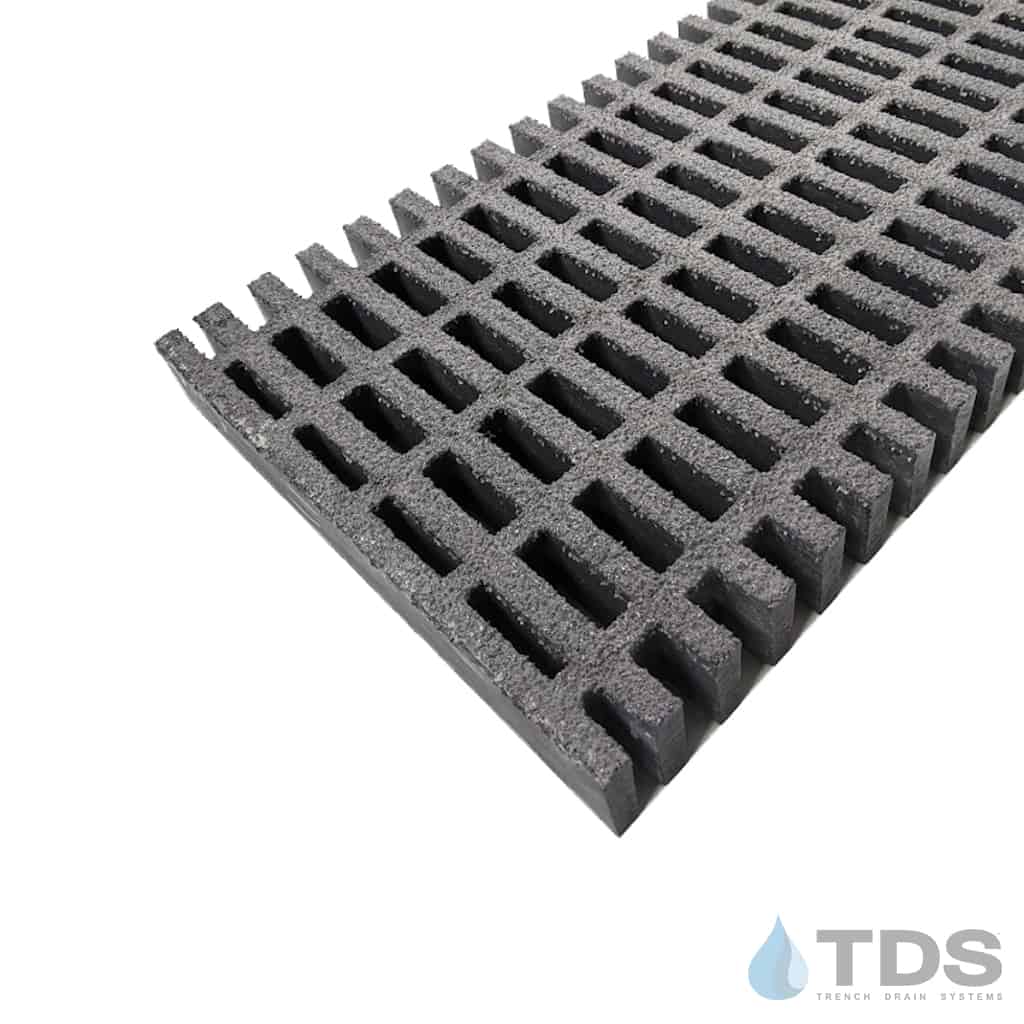

Fiberglass High Load Capacity (HLC) grate

Actual grate dimensions: 10.33″ x 48″ x 1.5″

The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. Actual grate width is 10.33 inches. This grate, when properly installed, has a load class C traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels.

FG-HLC-1048 Specification Sheet

FG-734891 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)

Benefits of Fiberglass HLC Mesh Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Load class C rating*
• Grate open area of 48%
• Grate openings 0.57" x 1.67" (1"x2")
• Grate depth 1.5"

* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
