J-4222-04 Heavy Duty Cast Iron 12" x 24" x 1.5" Grate | D&L Foundry

Grate Width: 12.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: D & L Foundry and TDS (Trench Drain Systems)

System: Foundry

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Edging - Ductile Iron, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Stainless, and Frame - Galvanized

Application:

Heavy Duty Gray Iron Grate

Heel Proof & ADA Compliant

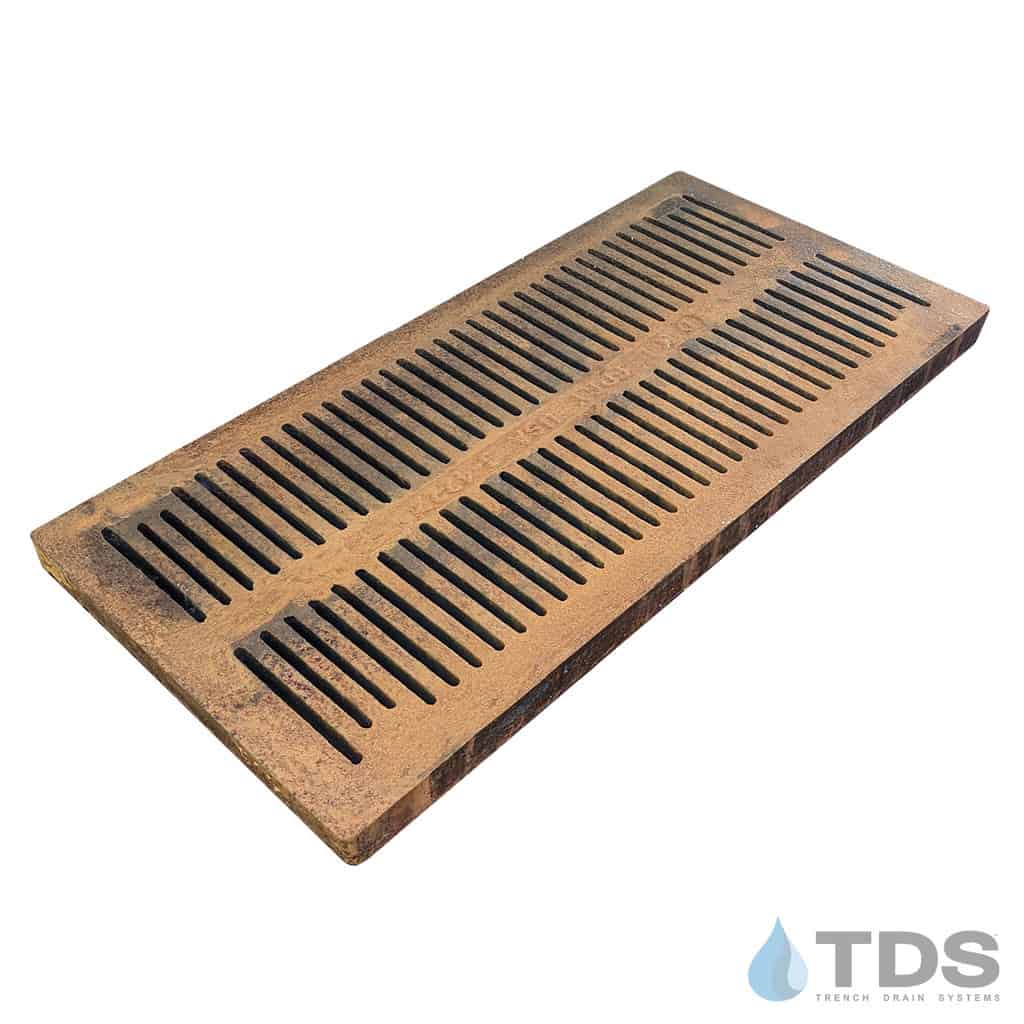

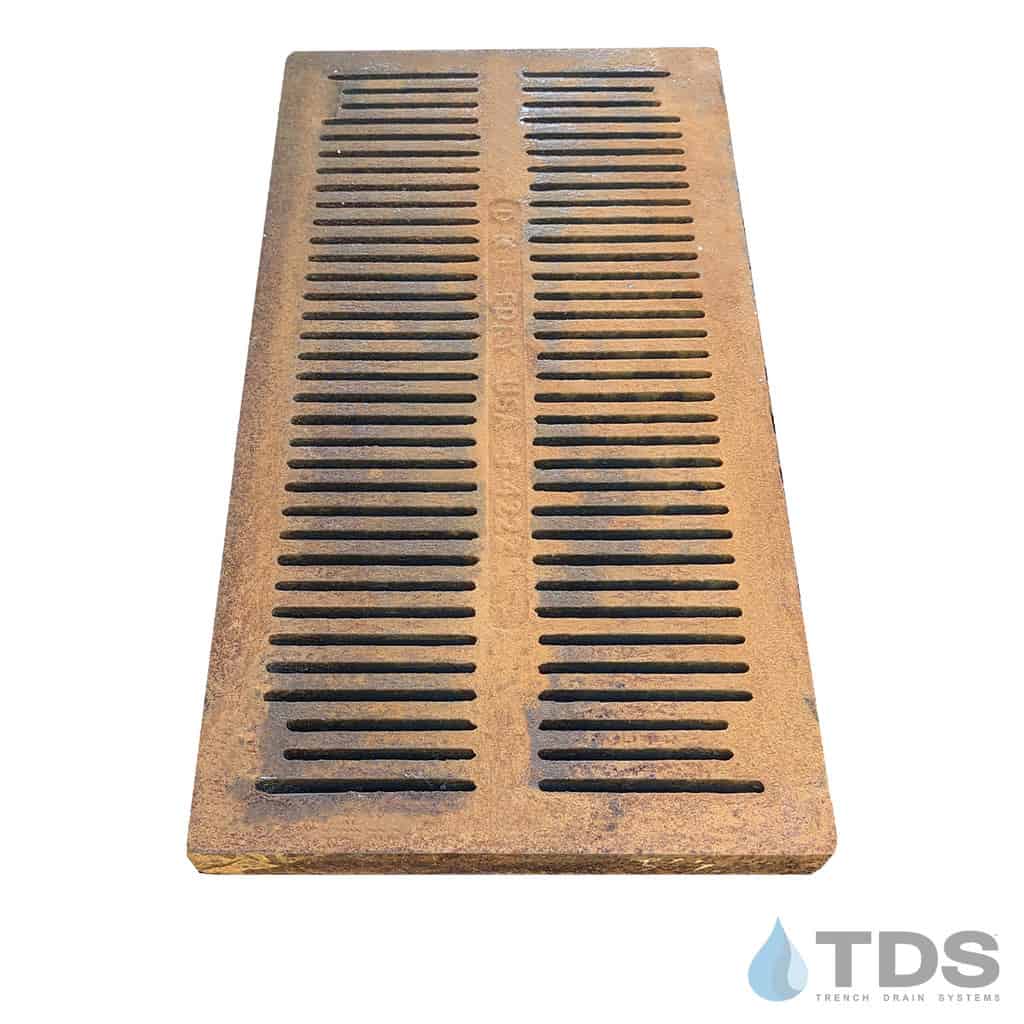

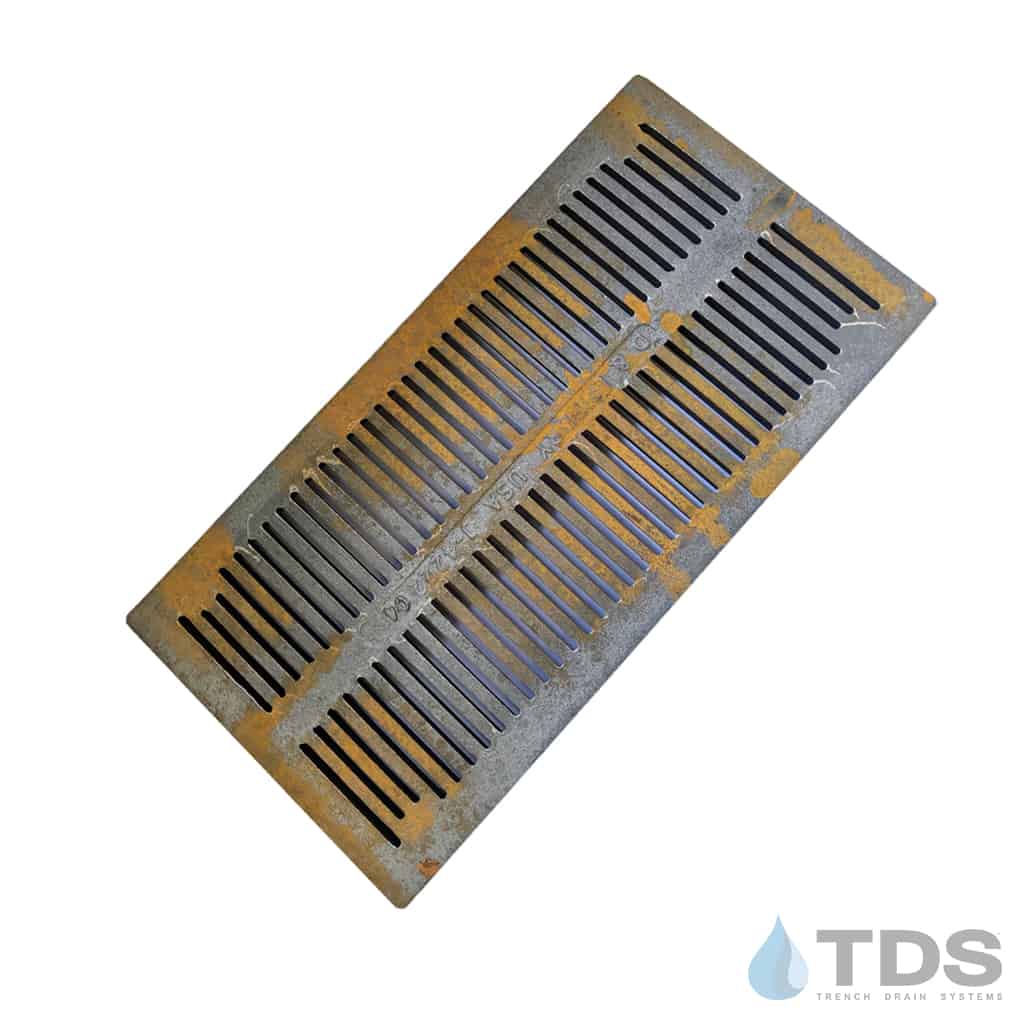

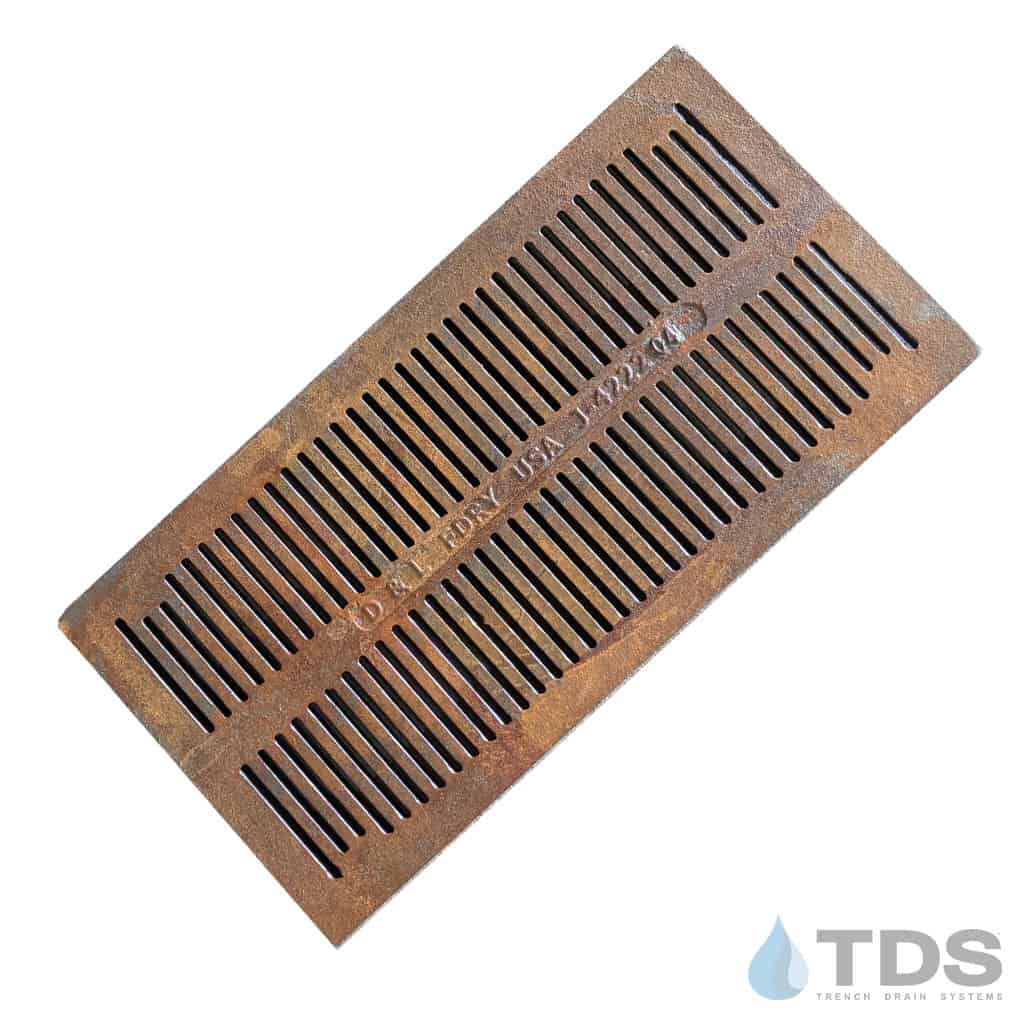

Gray Iron heavy-duty grate that measures 11.88" x 23.75" x1.5". Grate openings/flow areas measure 4-1/4" x 1/4". Bottom 'leveling feet' can be ground for proper height adjustment.

Each individual grate weighs 49 lbs each. ASTM A48 CL35B, H-20. Heel Proof and ADA compliant.

Looking to create a trench drain system with these grates? We have a variety of rails/frames to make the build easier.

NOTE: Due to the weight of this product, expect higher than normal shipping costs. All raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

Specification Sheet for J-4222-04
