ULMA ID100 Installation Chair

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: ULMA

System: D100, U100K, U100KX, M100V, M100K, and M100KX

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application:

Simplifies the installation of ULMA Polymer concrete channels

Made to fit ULMA:

• U100K
• U100KX
• U100
• D100
• M100K
• M100KX
• M100

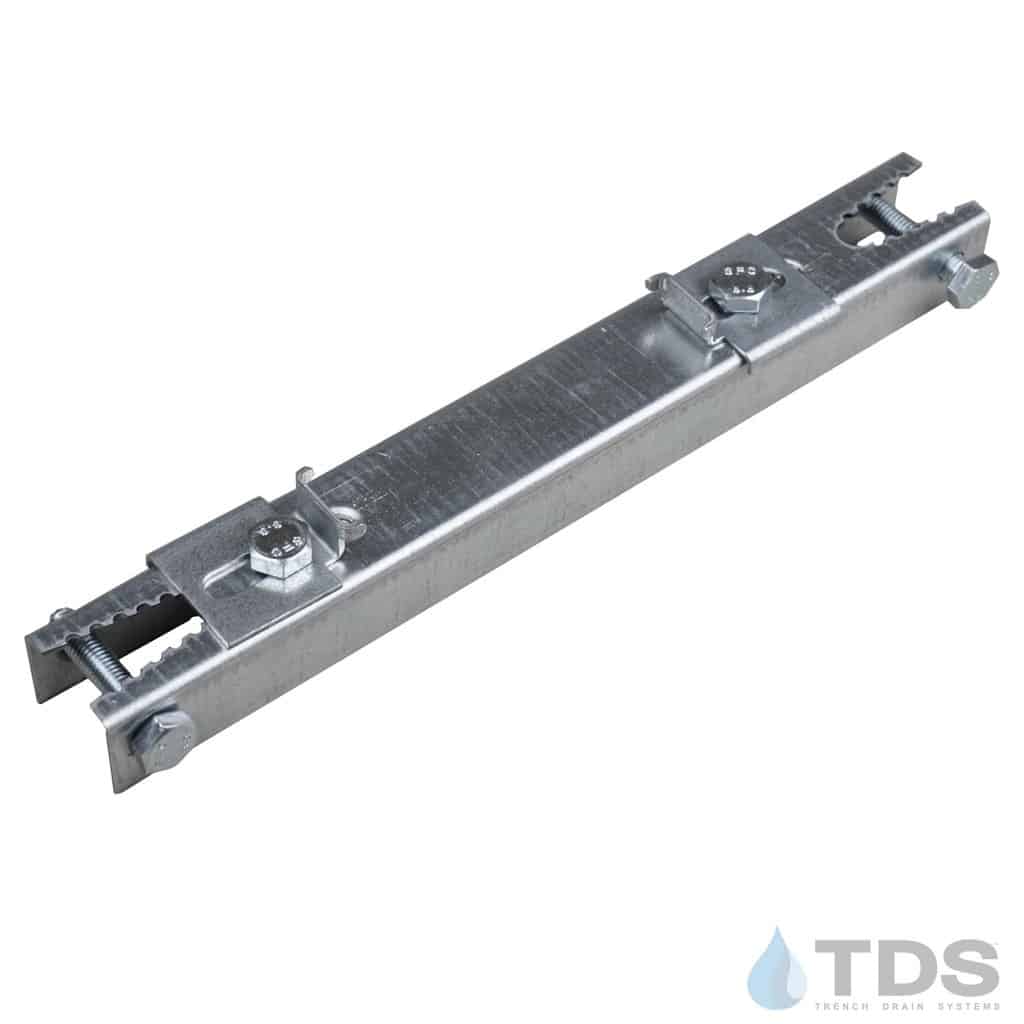

The ULMA installation bracket ID100 assists with setting a precast trench drain system. Installation chairs support the ends of the channels, aligns and locks the joint rigidly together and prevents the channels from floating. Adjusting channel elevation on the rebar is easy with the ULMA installation bracket.

Used under the joints of channels to suspend the system with areas on each side that allow for the attachment of rebar.

Install chairs are sold individually.

Compatible with:

• U100K
• U100KX
• U100
• D100
• M100K
• M100KX
• M100
