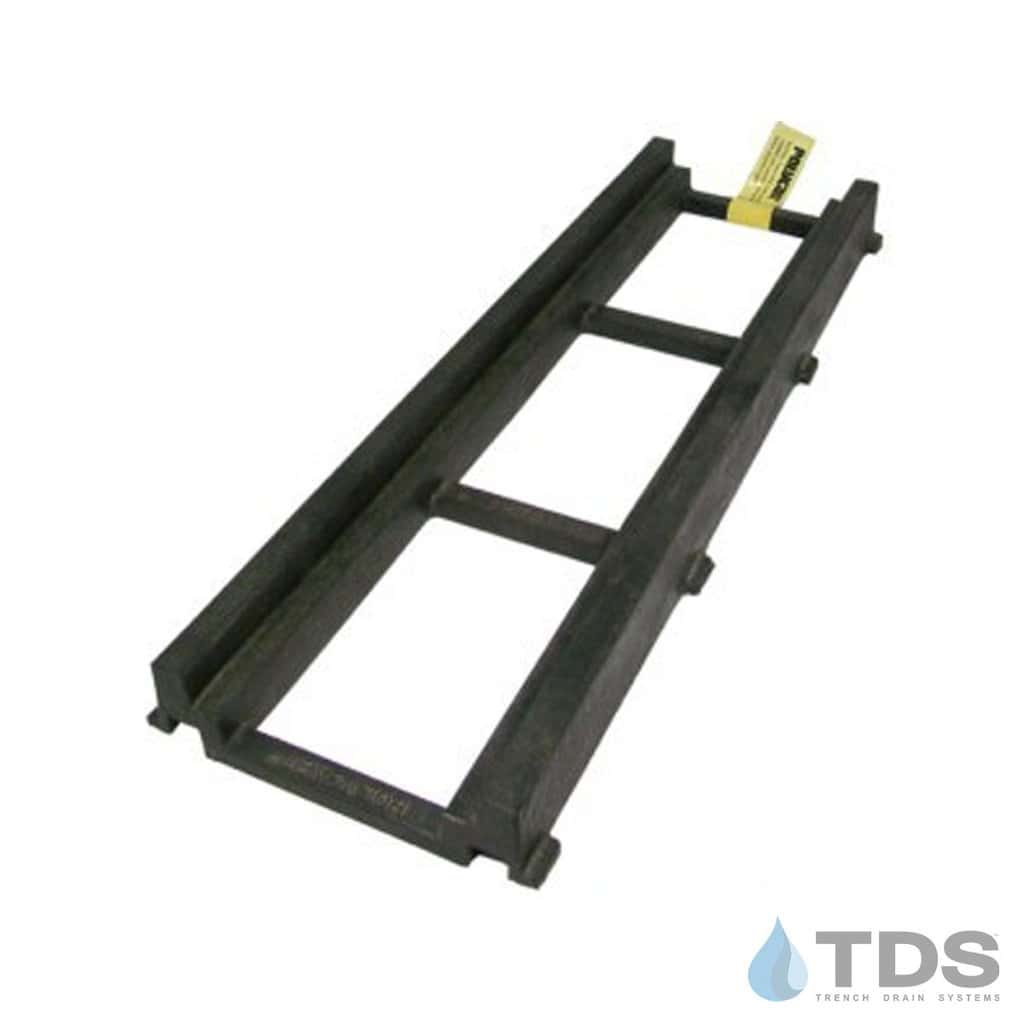

DG0700PE POLYCAST Duraguard® 700 Series HPDE Frame

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Black

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500, POLYCAST 600, and POLYCAST 700

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

The DURAGUARD® Channel Frame improves heavy load performance and impact resistance.
Strengthen your POLYCAST® 500, 600, and 700 series install.

Utilizing a high-density polyethylene composite, the DURAGUARD® channel frame reinforces the channel edge to dramatically improve the load performance and impact resistance of the standard 500 Series and 600 Series channels. In addition, DURAGUARD® is extremely resistant to environmental exposure and many corrosive chemicals. The anchoring flanges on the outer edge of the DURAGUARD® frame permanently and mechanically engage the frame into the concrete. This cost-friendly option is ideal for many markets including transportation, utilities, agriculture, food processing, public/government housing, industry, manufacturing, recreational and chemical plants.
