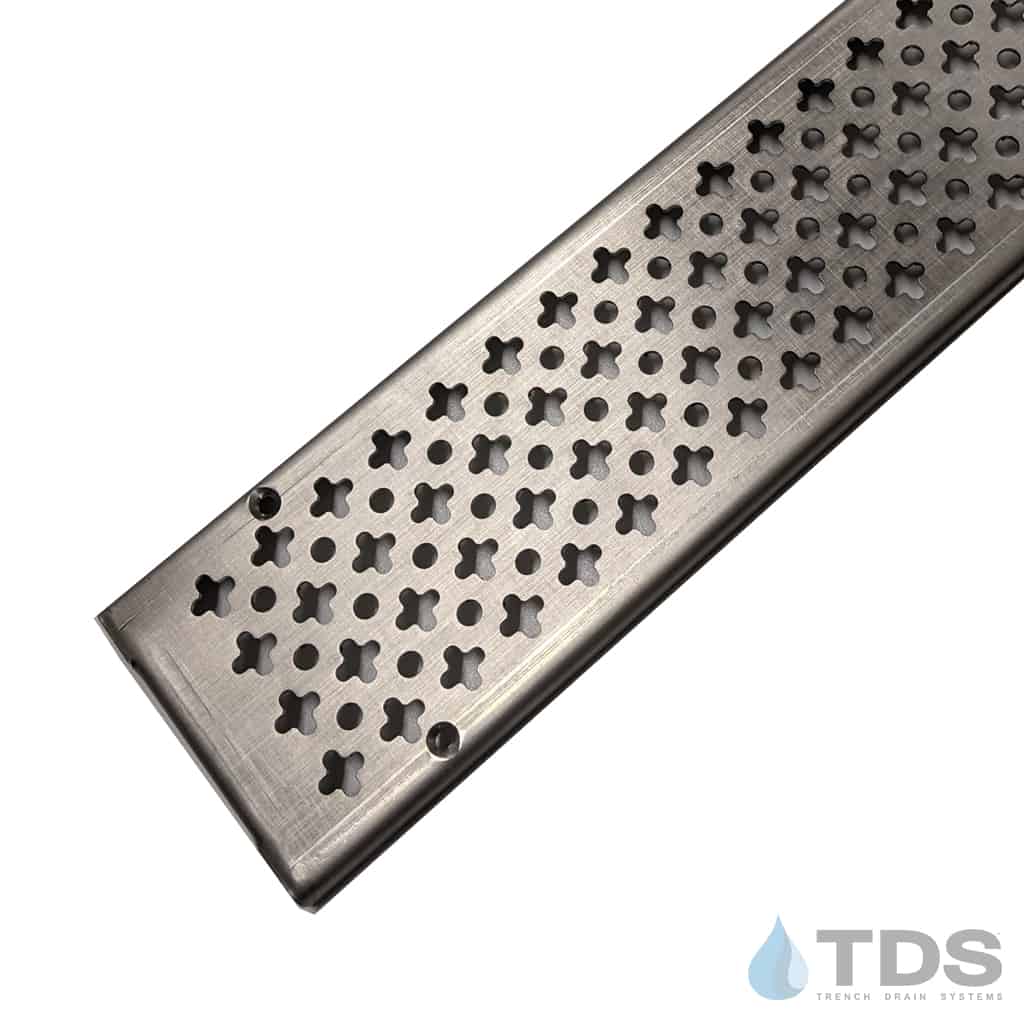

Cathedral 304 Stainless Steel Heel Proof Grate 3″x12″ Load Class B

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel and MAX Mini

Grate Load Class: Class B

Grate Pattern: CATHEDRAL

Grate Pattern Style: TRADITIONAL and PERFORATED

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None, Edging - None, and Edging - Stainless

Application: Decorative, Residential, and Sports Complex - Recreational

Fits the NDS Mini Channels
and the TDS MAX Mini drainage system

Exclusively through TDS

Limited Stock. Call for availability. 610-882-3630

As part of the Bronze Age grate collection, this 304 stainless steel cathedral grate pattern is an exclusive product of TDS.

Compatible with NDS Mini Channels or consider Trench Drain Systems' MAX mini drainage system with decorative stainless steel grates. They are a low-maintenance option that provides a high-end look to pool and patio areas.

Rated as a Load Class B, it is also ideal for light pneumatic tires traffic, pedestrian applications, sidewalks, and residential parking. Grates can be secured in place with 4 fasteners, TDS529 (not included).

Actual Dimensions: 11.88" x 2.69" x 0.34"

Also available in 316L - Marine grade stainless steel: CLICK HERE

Cathedral Stainless Steel Grate Specification Sheet | Class A or B
