Bronze Age TDS-FOAM-0448-S 304 Stainless Steel 4.09" x 48" (Nominal) Grate

Grate Width: 4.13" for NDS Spee-D

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Spee-D

Grate Load Class: Class B

Grate Pattern: CATHEDRAL

Grate Pattern Style: TRADITIONAL and PERFORATED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

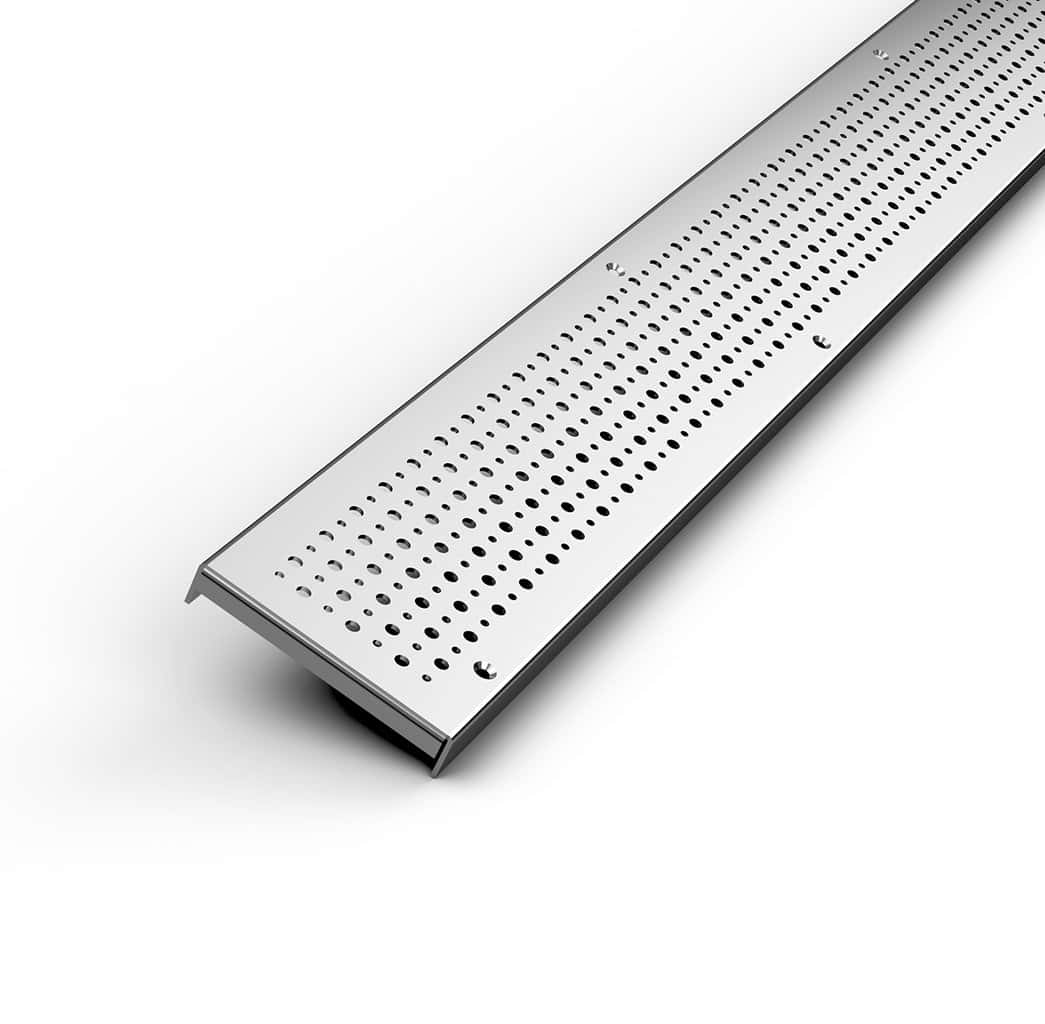

The decorative TDS-FOAM-0448-S Foam grate is designed to fit the NDS Spee-D® Channel trench drain system. Made of 304 stainless steel, this 4.09" wide grate offers a very clean look with lasting beauty. The Foam grate features an attractive and exclusive TDS pattern and is rated as Load Class A for lighter loads. These grates are perfect for pedestrians, bicycles, and golf carts. Made in the USA.

Load Class A

The grate measures 4.09"W x 0.75"H, with length options of 24" and 48". It is ADA-compliant and heel-friendly.

Actual Grate Dimensions: 4.09" W x 47.94" L

Designed to fit: NDS Spee-D® Channel

Specification Sheet for TDS-FOAM-0448-S

Requires (4) per 24" or (8) per 48" Locking devices (Sold Separately): NDS229

• 8-32 x 1″  stainless steel

Caution: Avoid using 304 stainless steel near saltwater pools, coastal, or marine areas due to increased susceptibility to corrosion.

Marine-grade 316L is available. Request a quote now.
