Bronze Age TDS-CATH-0336-L Cathedral 316L Stainless Steel 3″x36″ Grate Load Class B

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Stainless Steel 316L

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel and MAX Mini

Grate Load Class: Class B

Grate Pattern: CATHEDRAL

Grate Pattern Style: TRADITIONAL and PERFORATED

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Made in the USA
Fits the NDS Mini Channel and MAX Mini drainage systems
ADA-compliant and heel-friendly

Salt Water Grade

Large project? Request a Quote

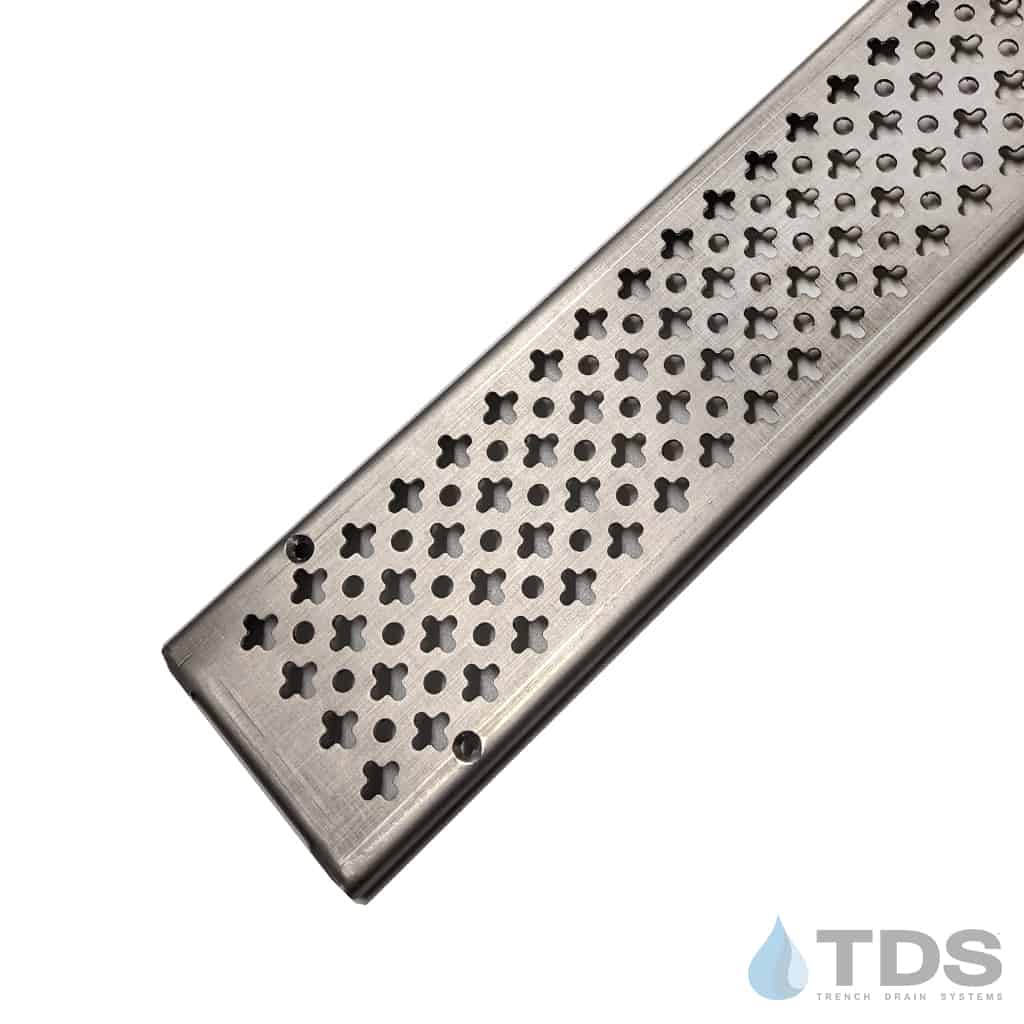

This decorative stainless steel grate is made in the USA and measures 2.69" width and a length of 35.88". The Cathedral grate features an attractive and exclusive TDS pattern.

Compatible with the NDS Mini Channel and the TDS MAX Mini drainage system.

The marine-grade 316L stainless steel material is made to withstand corrosive environments and saltwater applications, such as saltwater pools and oceanfront sidewalks and patios.

Grates can be secured in place with 8 fasteners, TDS529 (not included).

ADA-compliant and heel-friendly, the Cathedral design is perfect for residential use, pedestrians and bicycles. This grate can also be used for sidewalks, parking lots and driveways when installed according to the Load Class B rating.

This grate has a Load Class rating of A but can be rated for a B Load Class if properly installed; see specification sheet for details.

Cathedral Stainless Steel Grate Specification Sheet | Class A or B
