Bronze Age™ DG0632H Foam 304 Stainless Steel 5.25"x24"Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500 and POLYCAST 600

Grate Load Class: Class A

Grate Pattern: FOAM

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Exclusive TDS Pattern
Made in the USA
Fits the POLYCAST 500, POLYCAST 600 and TDS SS600 drainage systems

Large project? Request a Quote

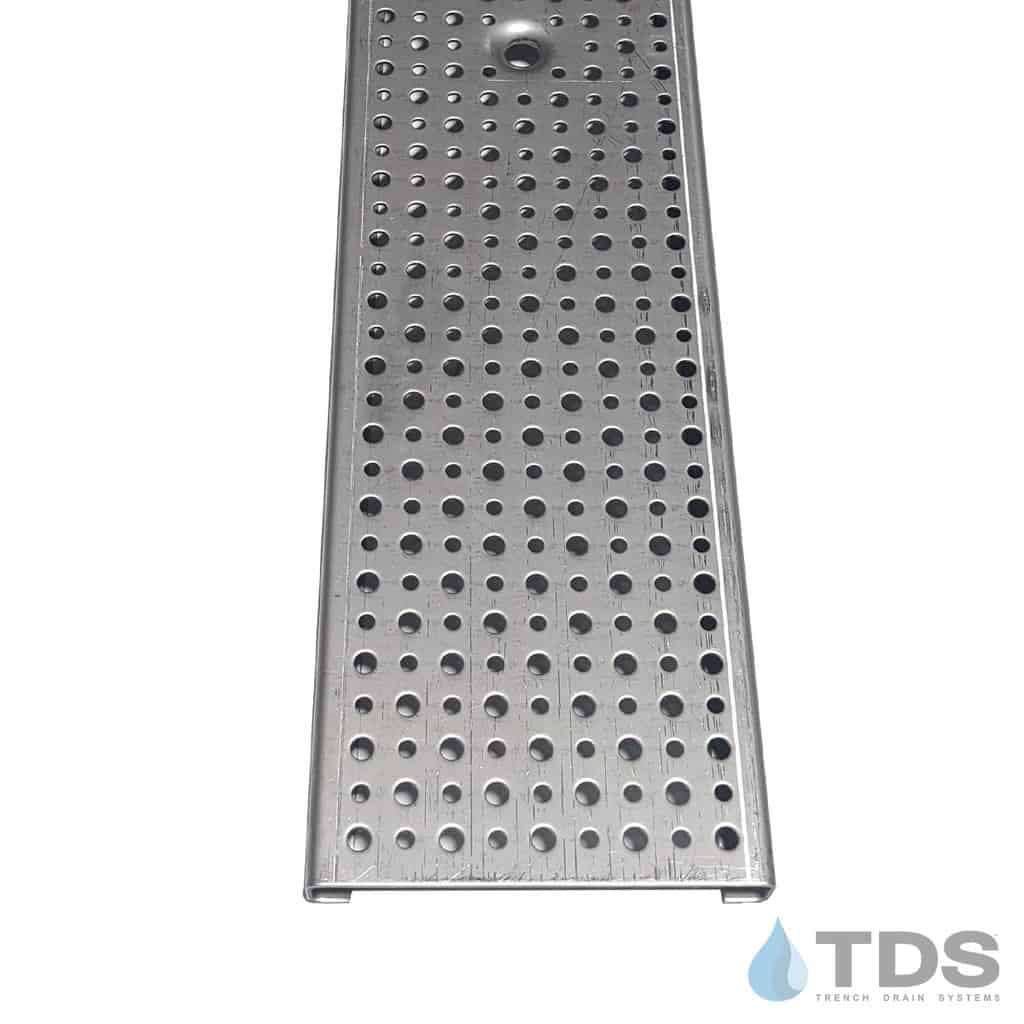

The decorative DG0632H Foam perforated light-duty grate is made in the USA and designed to fit the POLYCAST 500, POLYCAST 600 and TDS SS600 drainage systems. Made of 304 stainless steel, this 5.25" wide grate offers a very clean look with lasting beauty. This grate is ideal for applications, such as pools, spas, kennels, zoos, breweries, wineries and food processing facilities with foot traffic.

ADA-compliant and heel-friendly pattern.

Grate measures 5.19"W x 0.75"H, with length options of 24" and 48". The Foam perforated grate features an attractive and exclusive TDS pattern and is rated as load class A for light loads. These grates are perfect for any low-traffic applications such as pedestrians, bicycles and golf carts.

Load Class A

Locking devices not included:

• For POLYCAST® 500 locking device (DA0542S) click here
• For POLYCAST® 600 locking device (DA0642S) click here
• For TDS SS600 locking device (SS0642S) click here

Made in the USA
