Bronze Age™ DG0622H Foam Perforated Galvanized Steel 5.19" x 24" Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500 and POLYCAST 600

Grate Load Class: Class A

Grate Pattern: FOAM

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Exclusive TDS Pattern
Made in the USA
Fits POLYCAST 500 and  POLYCAST 600 systems

Large project? Request a Quote

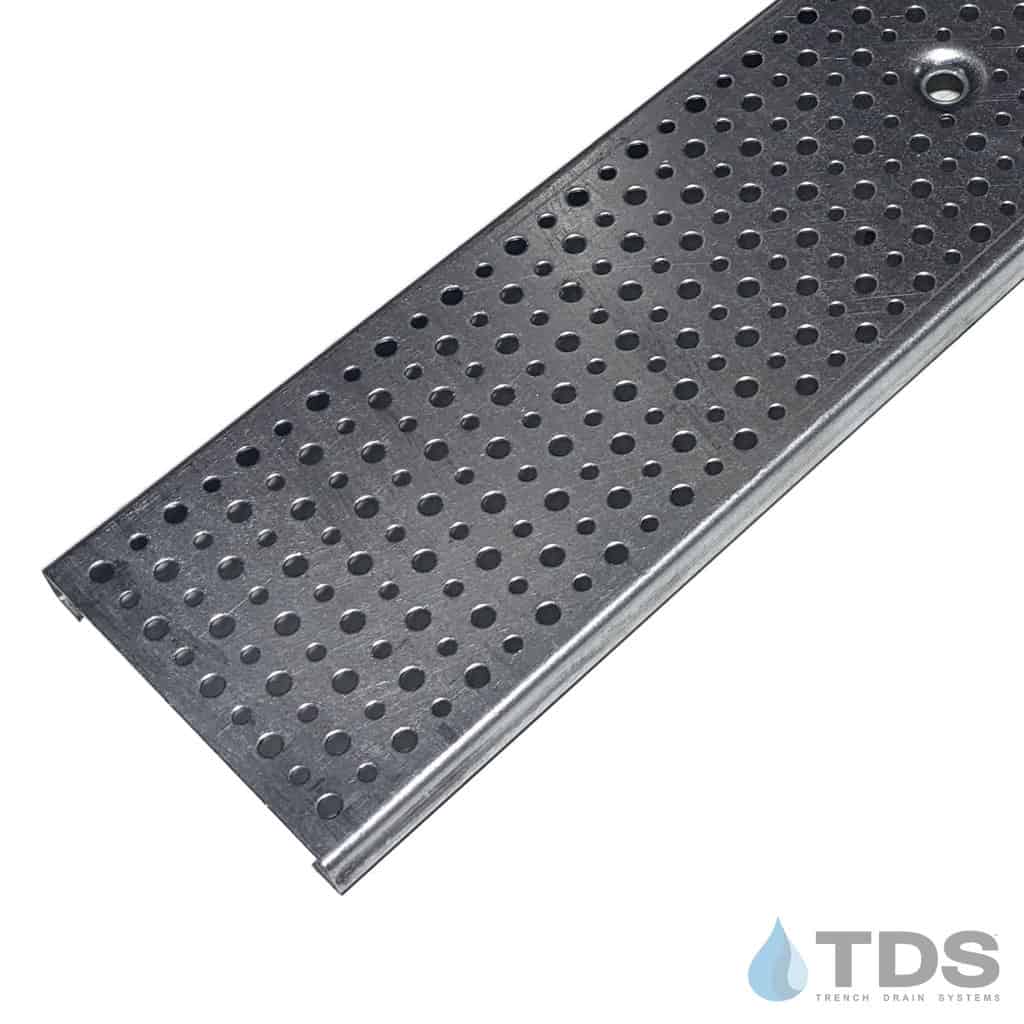

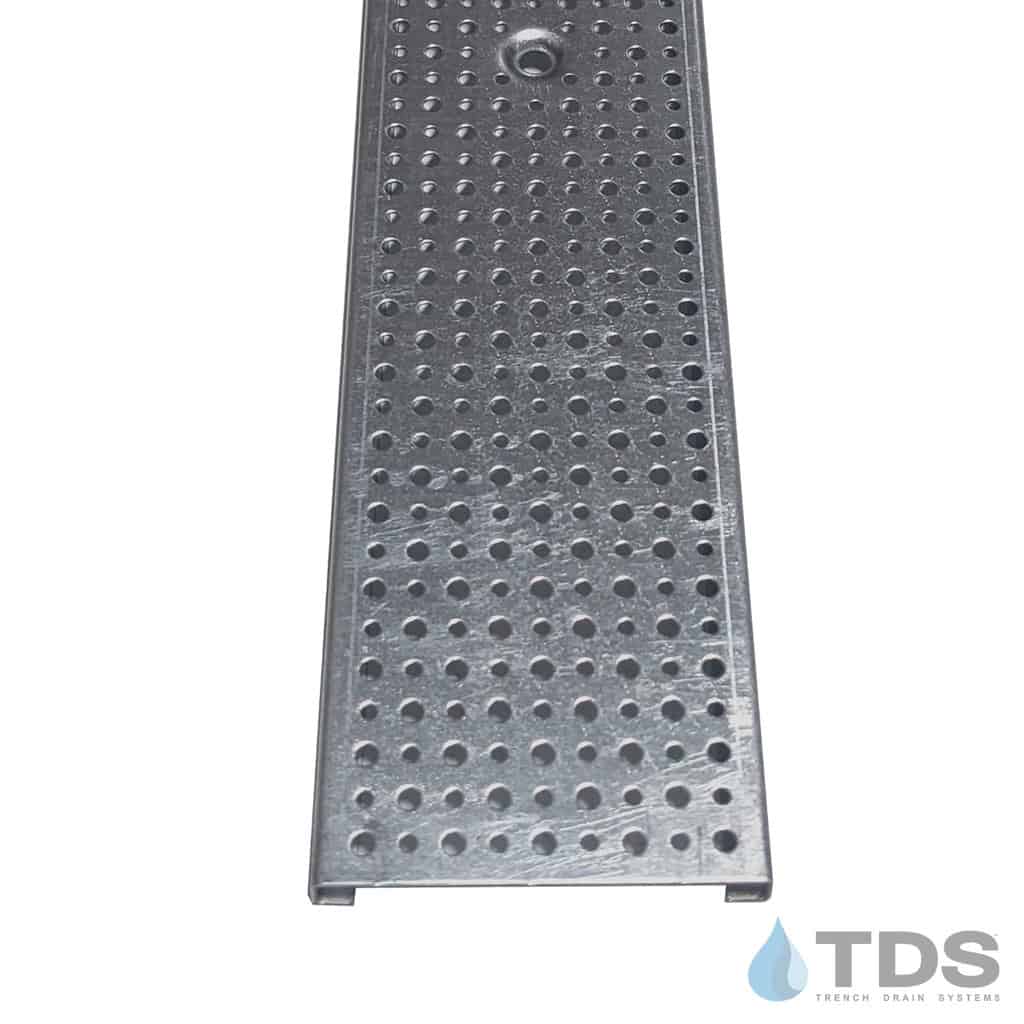

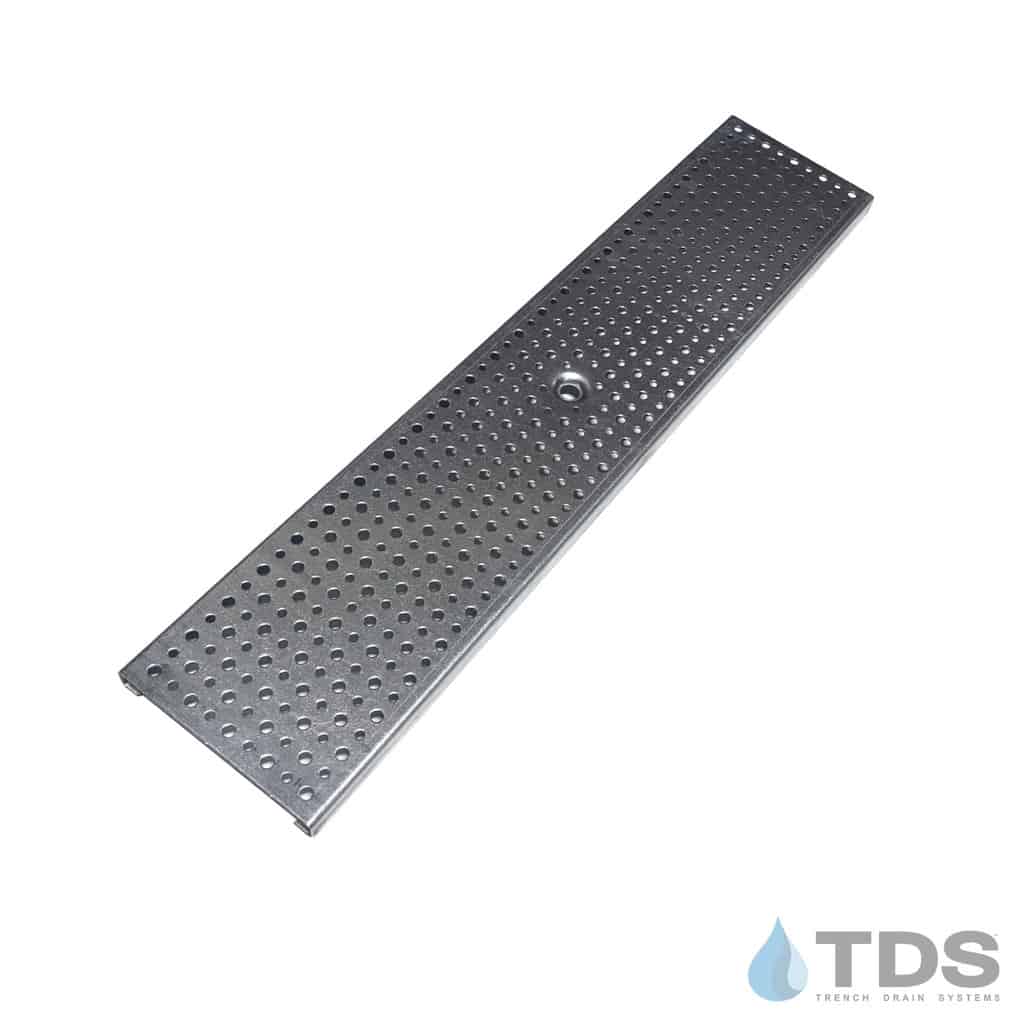

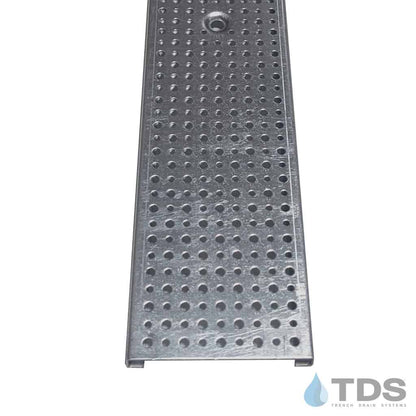

The galvanized steel decorative DG0622H Foam perforated light-duty grate is made in the USA and designed to fit the POLYCAST 500 and POLYCAST 600 drainage systems.

ADA-compliant and heel-friendly pattern.

Grate measures 5.19"W x 0.75"H, with length options of 24" and 48". The Foam perforated grate, which features an attractive and exclusive TDS pattern, and is rated as load class A for light loads. These grates are perfect for any low-traffic applications such as pedestrians, bicycles and golf carts.

Load Class A

Locking devices not included:

• For POLYCAST® 500 locking device DA0542, click here
• For POLYCAST® 600 locking device DA0642, click here

Made in the USA
