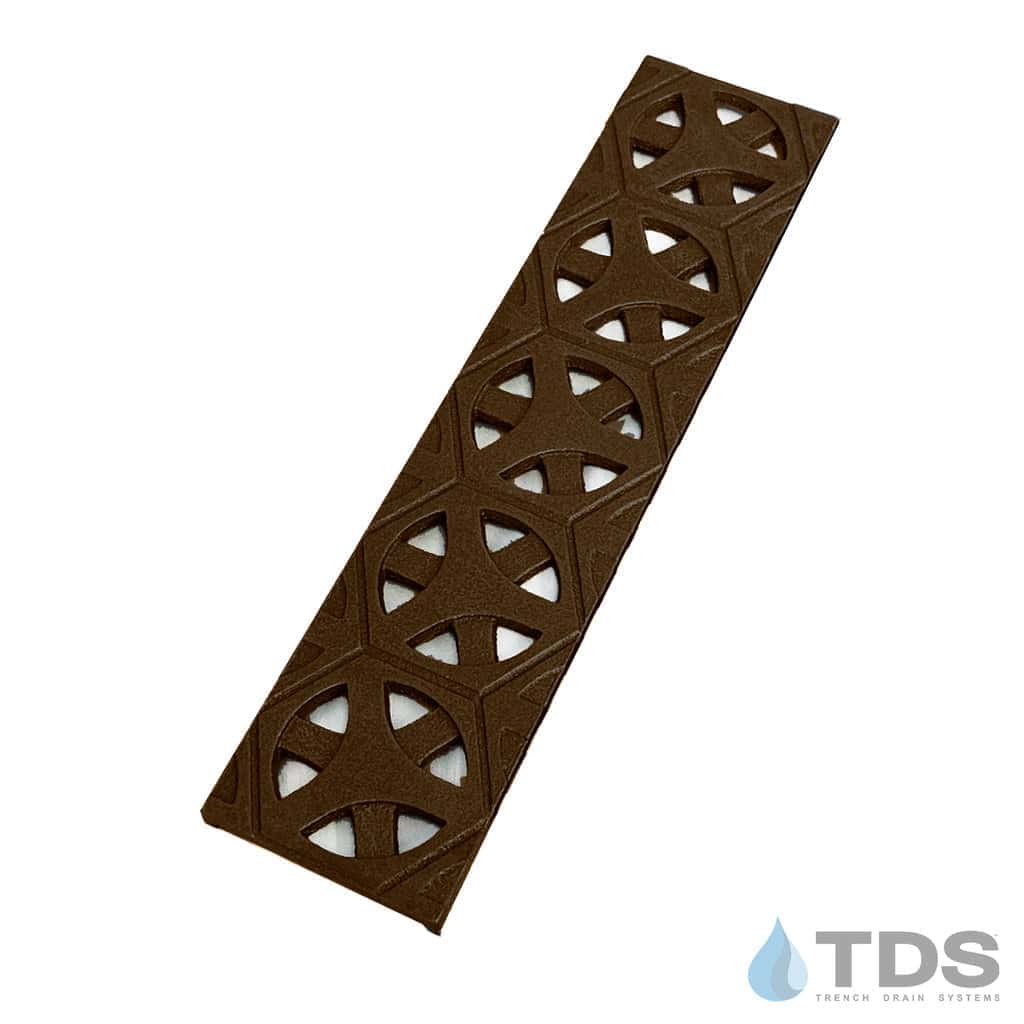

Bronze Age™ BA-TAR-0312-BF Ductile Iron 3" x 12" Grate -BoOF

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: TARDIS

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Actual Dimensions: 2.72″ [69mm] x 12″ [305mm] x .34″ [9mm]

Available for NDS® Mini Channel

Large project? Request Quote.

Bronze Age™ decorative ductile iron grate with the Tardis pattern is a TDS exclusive. This grating comes in a natural raw finish (temporarily painted black for transportation), is heelproof, ADA-compliant, and made to fit the NDS® 3″ Mini-Channel linear trench drain system.

Each grate includes 2 holes for securing to channel using NDS-529 fasteners (sold separately).

Actual Dimensions: 2.72" [69mm] x 12" [305mm] x .34" [9mm]

Designed to fit: NDS® Mini Channel & TDS Max Mini™

This system has a Load Class rating of A if properly installed; see the specification sheet for details.

Specification Sheet BA-TAR-0312-BF
