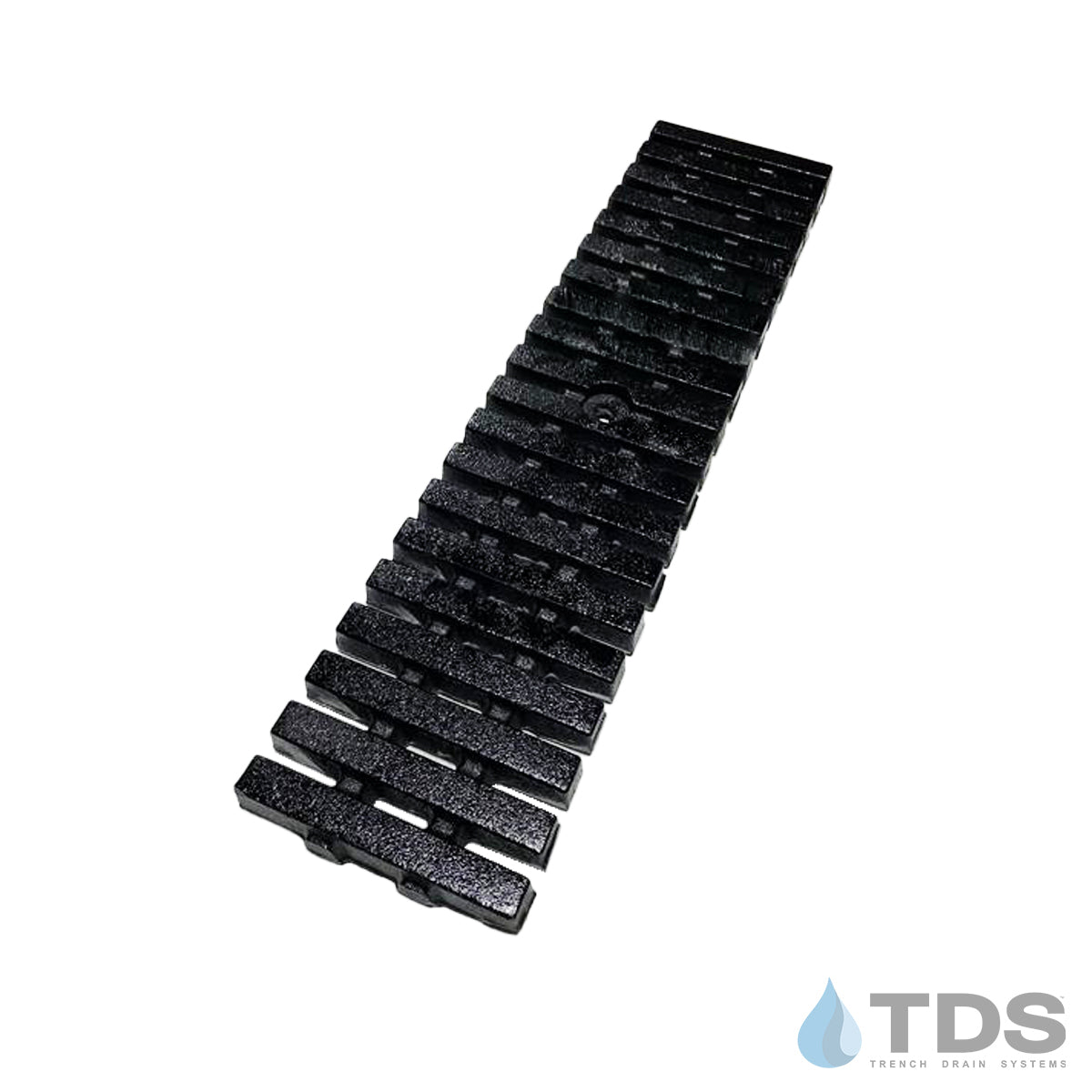

Bronze Age™ BA-PED-0520 Ductile Iron 5" x 20" Grate - RAW

Bronze Age™ BA-PED-0520 Ductile Iron 5" x 20" Grate - RAW

  • BA-PED-0520
1 1

Drainage Kits

BA-PED-0520

  Actual Dimensions: 4.81" [122 mm] x 19.60" [498 mm] x .75" [19mm] Large project? Request a Quote
$87.50 USD
$87.50 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 5"
  • Grate Thickness: 0.75"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: Bronze Age, TDS
  • System: D100, HYDROPLUS, HYDROPLUS Mini, M100K, M100KX, MEA100, MEArin 100, U100K, U100KX
  • Grate Load Class: C
  • Grate Pattern: Pedreda
  • Grate Pattern Style: Slotted
  • Channel Material: None
  • Frame/Edging: No Frame, No Edging
  • Application: Decorative

Description



Actual Dimensions: 4.81″ [122 mm] x 19.60″ [498 mm] x .75″ [19mm]

Large project? Request a Quote

Bronze Age™ decorative ductile iron grate with the Pedreda pattern is a TDS exclusive. This grating comes in a natural raw finish, is heelproof, ADA-compliant, and made to fit a variety of 5" linear trench drain systems.

Actual Dimensions: 4.81" [122 mm] x 19.60" [498 mm] x .75" [19mm]

Designed to fit:

    • ULMA - HYDROPLUS
    • ULMA - U100 and M100
    • MEA-Josam - MEArin 100
    • MEA-Josam - MEA J1000
    • MultiDrain - Alfa Channel
    • J.R. Smith - Enviro-Flo
    • ABT - Polydrain

Please note that all raw ductile-iron grates begin to naturally rust with exposure to any form of moisture and may appear bright orange before settling to a dark brown.
