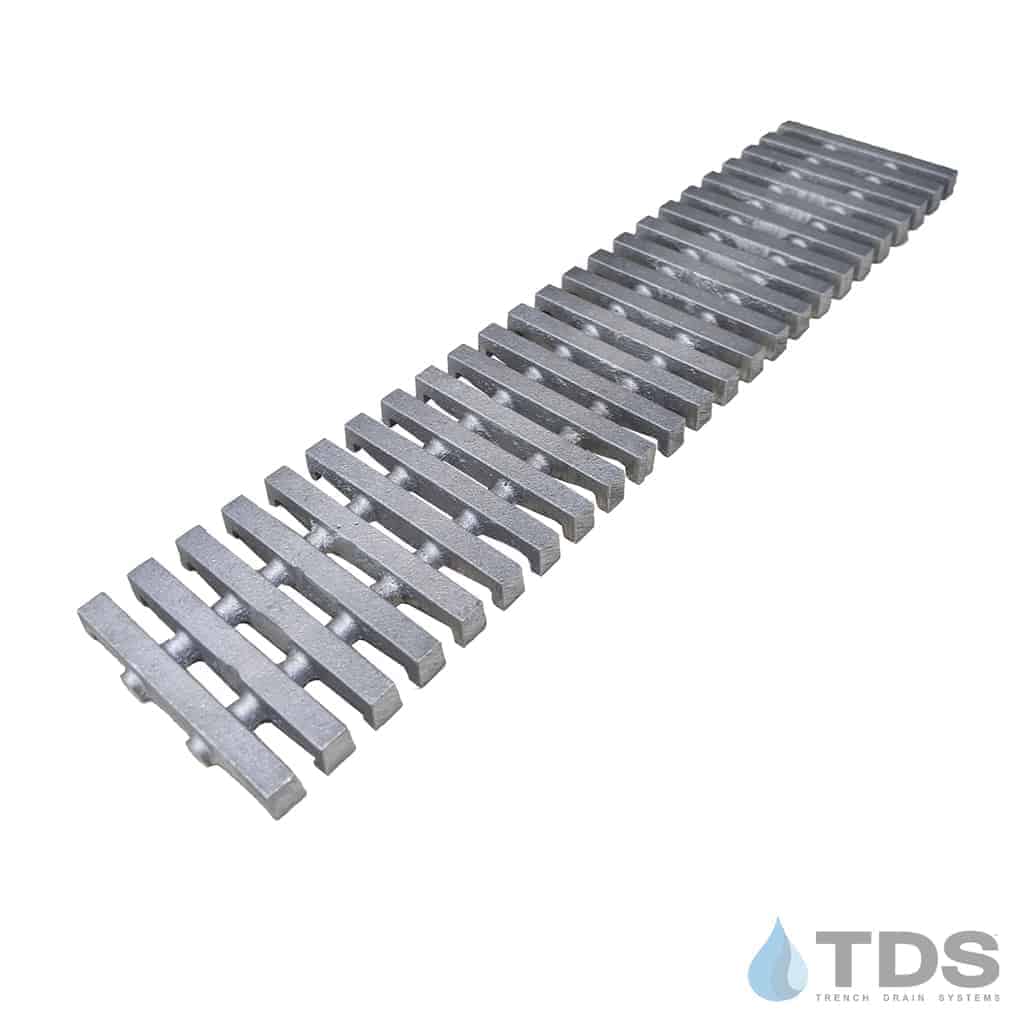

Bronze Age™ BA-PED-0312-A Class A Pedreda Aluminum 3" x 12" Grate

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Aluminum

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: PEDREDA

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Large project? Request a Quote

This grate comes in 12″ sections with a 3″ (nominal) width.

Actual Dimensions: 2.72″ [69mm] x 12″ [305mm] x .34″ [9mm]

This decorative aluminum grate with a natural finish is made in the USA and measures 2.72" width and a length of 12". The Pedreda grate features an attractive and exclusive TDS pattern.

Designed to fit: NDS Mini Channel

Decorative Bronze Age grate with the Pedreda pattern and is available in Aluminum. Grates can be secured in place with 2 fasteners, NDS529 (not included).

This grate has a Load Class rating of A but can be rated for a B Load Class if properly installed; see specification sheet for details.

Pedreda Grate Specification Sheet | Class A or B

Actual Dimensions: 2.72" [69mm] x 12" [305mm] x .34" [9mm]
