Bronze Age BA-CATH-0312 Class A Cathedral Bronze Natural Finish 3" x 12" Grate

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Bronze - Natural

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: CATHEDRAL

Grate Pattern Style: TRADITIONAL and PERFORATED

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Actual Dimensions: 2.72″ [69mm] x 12″ [305mm] x .34″ [9mm]

Large project? Request a Quote

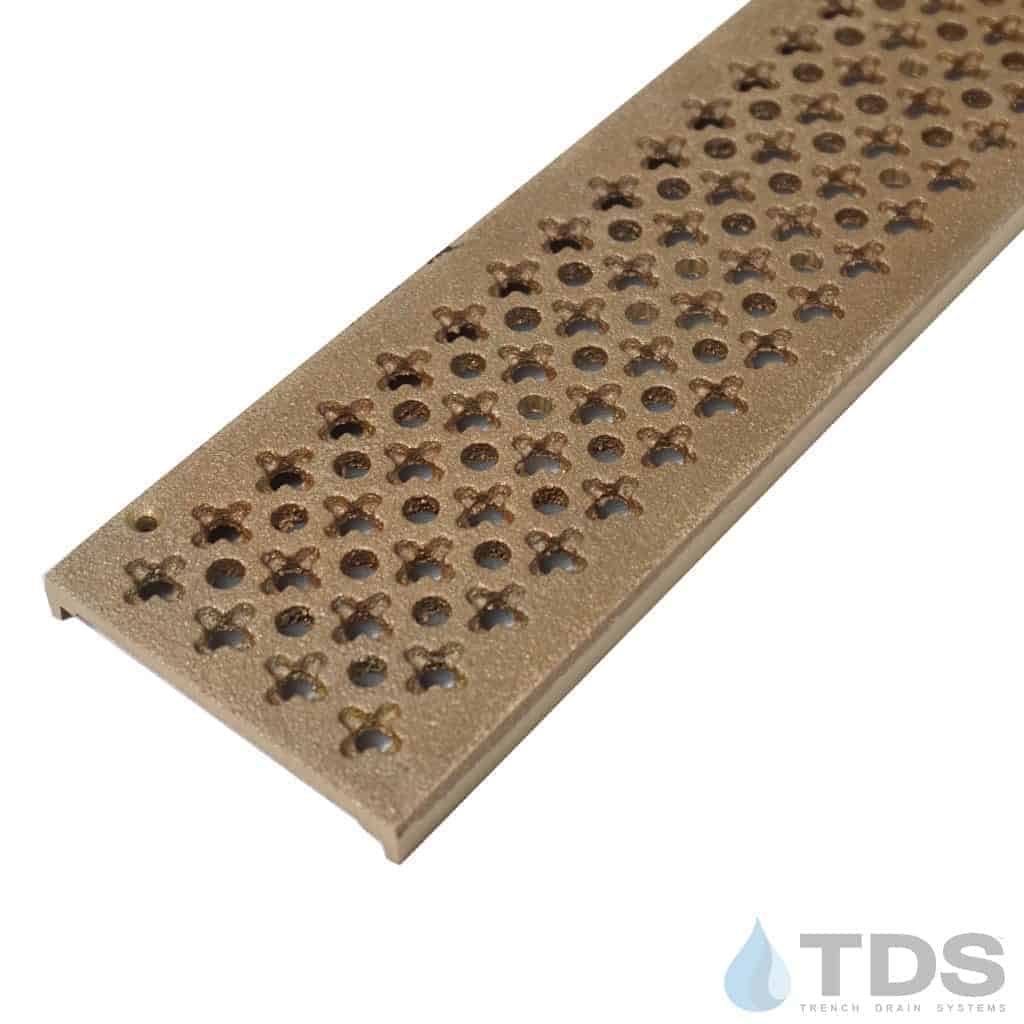

Decorative Bronze Age grate with the Cathedral pattern in Bronze. Bronze Cathedral grates are made to fit your NDS® 3″ Mini-Channel trench drain.

Each grate includes 2 holes for securing to channel using NDS-529B fasteners (sold separately).

Actual Dimensions: 2.72" [69mm] x 12" [305mm] x .34" [9mm]

Designed to fit: NDS Mini Channel & TDS Max Mini

This system has a Load Class rating of A but can be rated for a B Load Class if properly installed; see specification sheet for details.

Cathedral Grate Specification Sheet | Class A or B
