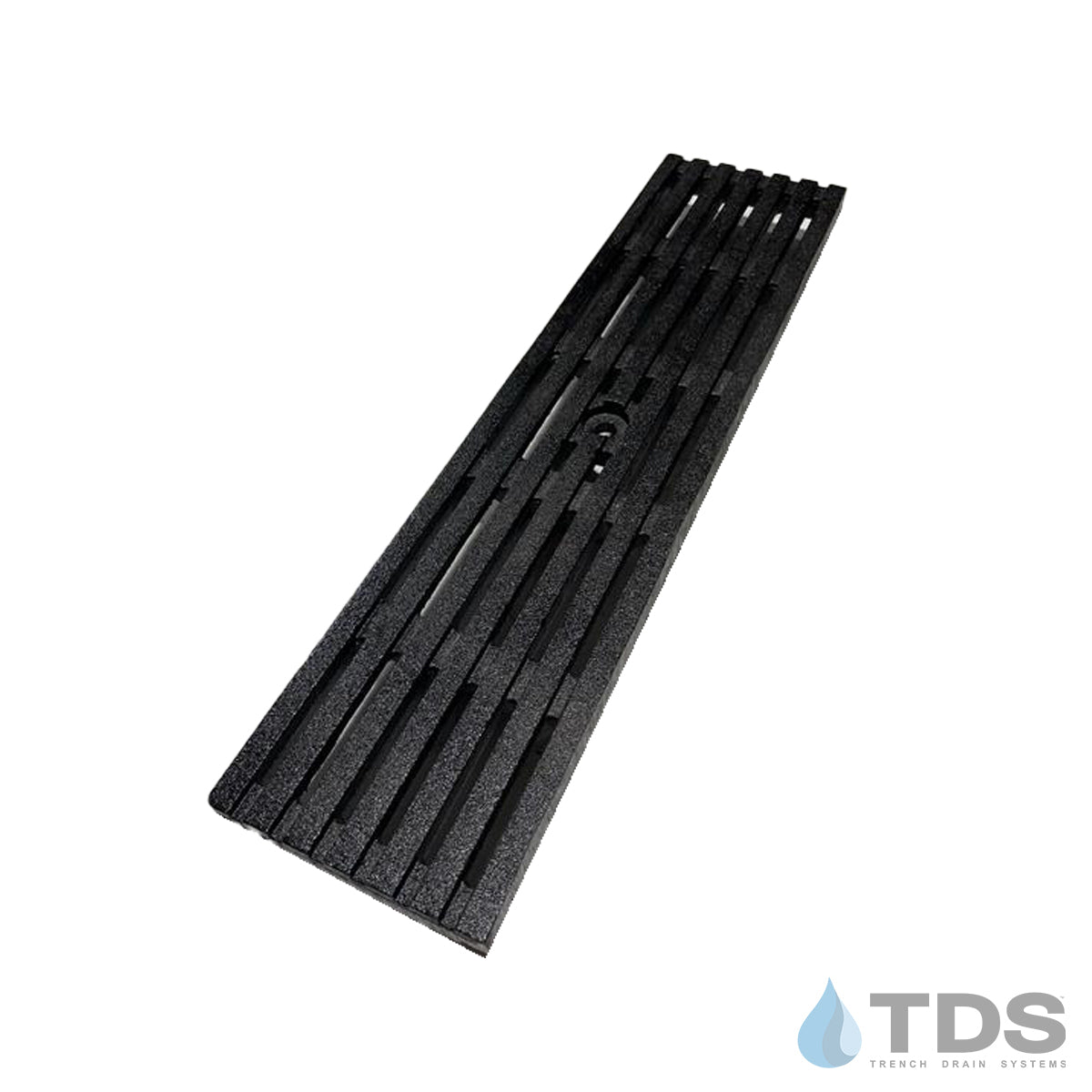

Bronze Age™ BA-BARS-0520 Ductile Iron 5" x 20" Grate - RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: TDS (Trench Drain Systems)

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class C

Grate Pattern: BARS

Grate Pattern Style: SLOTTED

Channel Material:

Channel Frame / Edging:

Application: Decorative

Bronze Age™ decorative ductile iron grate with the Bars pattern is a TDS exclusive. This grating comes in a natural raw finish, is heelproof, ADA-compliant, and made to fit a variety of 5" linear trench drain systems.

Actual Dimensions: 4.81" [122 mm] x 19.60" [498 mm] x .75" [19mm]
Locking device sold separately: LD100X-3

Specification Sheet for BA-BARS-0520

Large project? Request a Quote

Designed to fit:

• • ULMA - HYDROPLUS
  • ULMA - U100 and M100
  • MEA-Josam - MEArin 100
  • MEA-Josam - MEA J1000
  • MultiDrain - Alfa Channel
  • J.R. Smith - Enviro-Flo
  • ABT - Polydrain

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.

This decorative grate is also available in a Baked-on Oil Finish. Request your quote today!
