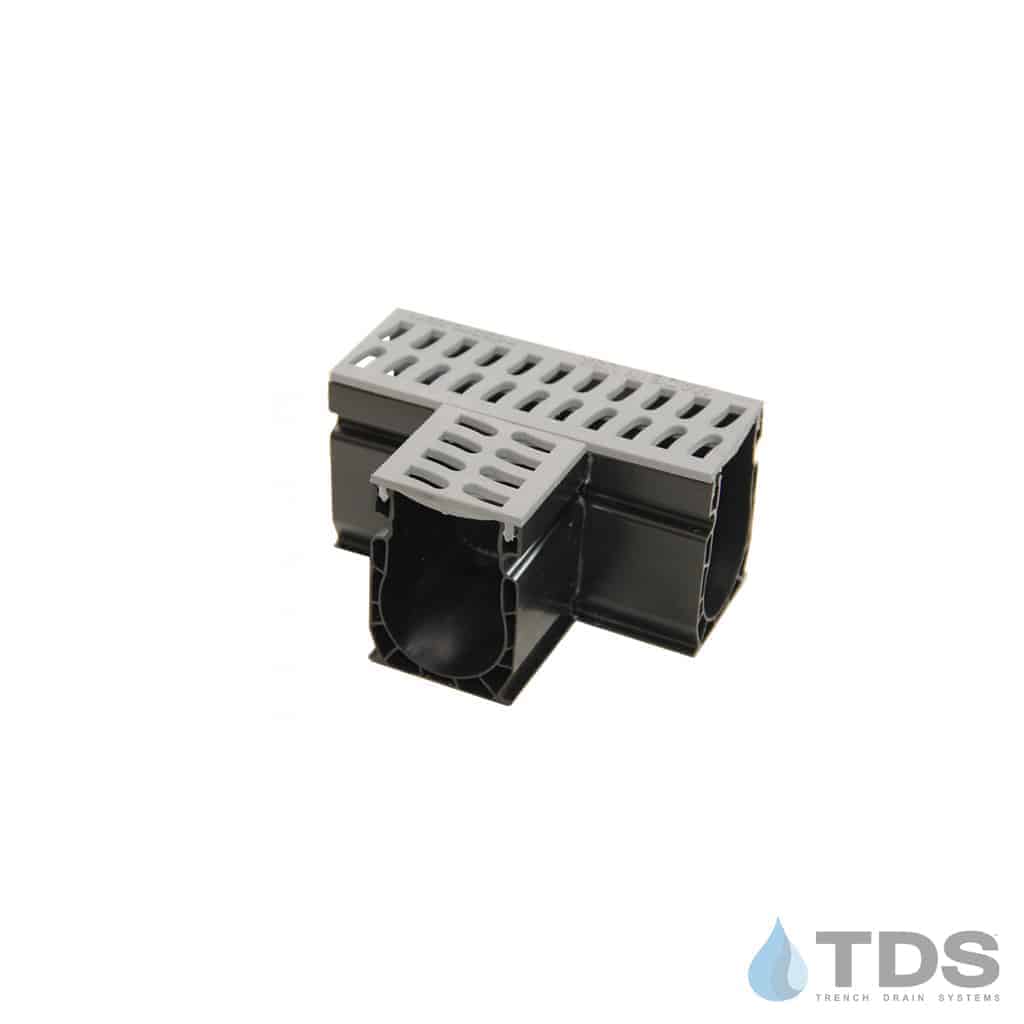

NDS 9373 Slim Channel TEE with Gray Slotted Grate

Grate Width: 2.25" for NDS Slim Channel

Grate Thickness: 0.25" with T-Top

Grate Material / Color / Finish: Plastic/HDPE - Gray

Manufacturer: NDS

System: Slim Channel

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Residential

NDS Slim Channel offers a convenient patio and landscape drainage option with the fabricated Tee Channel with Grey Slotted Grate.

This NDS Fabricated Channel Tee with Grey Slotted Grate is the perfect addition to the NDS 2.25 inch wide Slim Channel System. NDS Slim Channel is the newest and most innovative channel drain product line yet from NDS. Taking inspiration from both the Micro and Mini Channel series, the Slim Channel system captures the best aspects of both prior channel series. The Slim Channel series by NDS interfaces with SCH 40 PVC pipe fittings.

Materials: PVC Channel, Polypropylene Grates

• ADA Compliant
• Class A Load Rating (1-60 PSI)
• Use With NDS Slim Channel Drain
• Recommended for pedestrians, bicycles, and wheelchair traffic
• Heel-Proof
• Made from UV Protected Material

NOTE: Couplers (Part# 9248) must be ordered separately

Slim Channel Overview WATCH VIDEO

Slim Channel Parts and Features WATCH VIDEO

Slim Channel Accessories Spec Sheet
