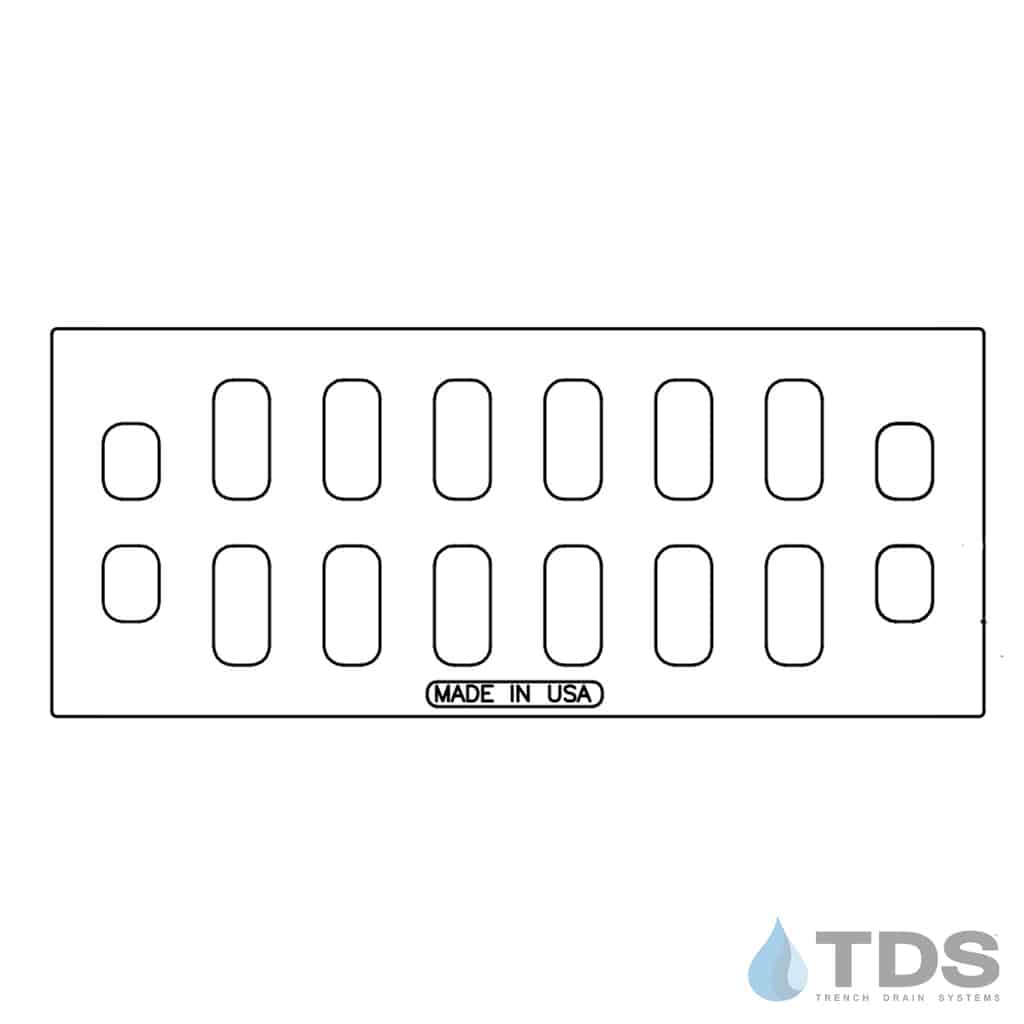

6902M2 Heavy Duty Cast Iron 10″ x 24″ x 2" Grate

Grate Width: 10.00"

Grate Thickness: 2.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: EJCO (East Jordan)

System: Foundry

Grate Load Class: H-20

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Edging - Ductile Iron, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Stainless, and Frame - Galvanized

Application:

Heavy Duty Grate

Class 35B

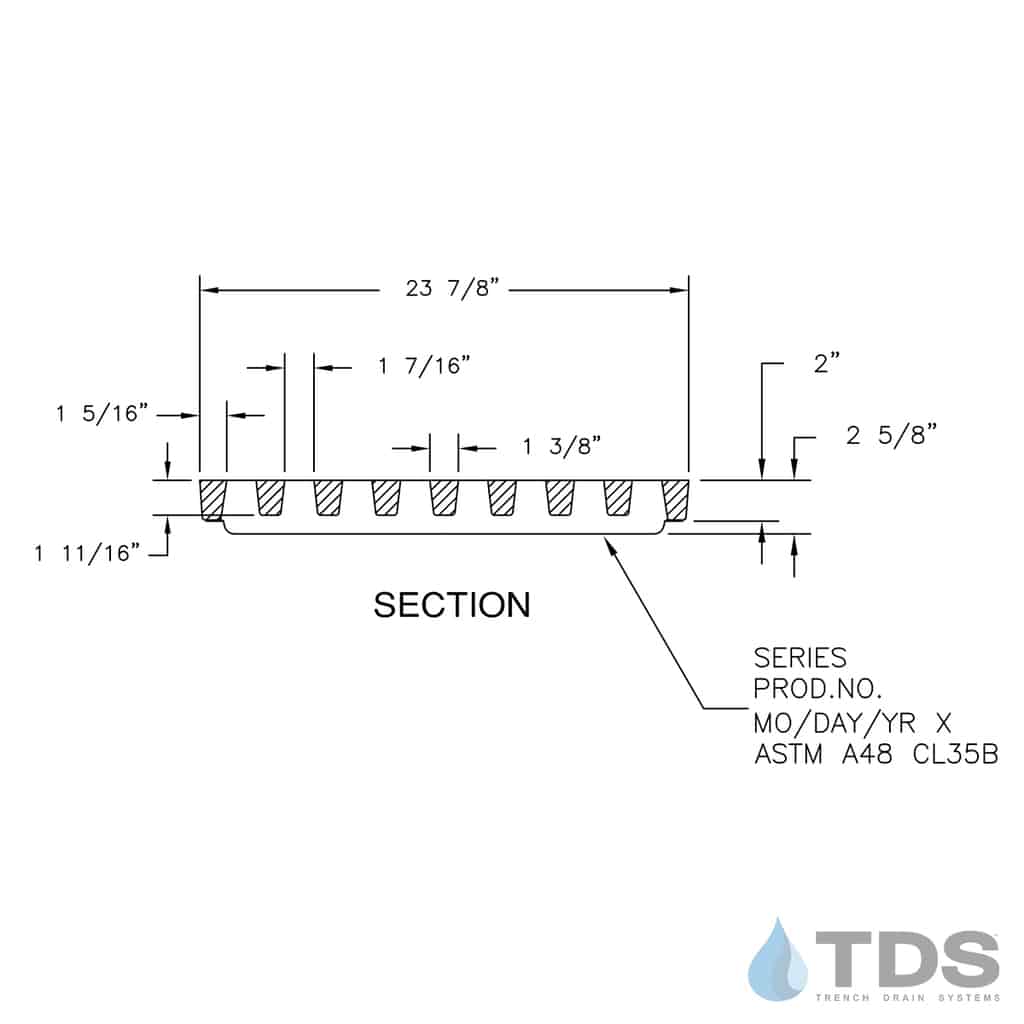

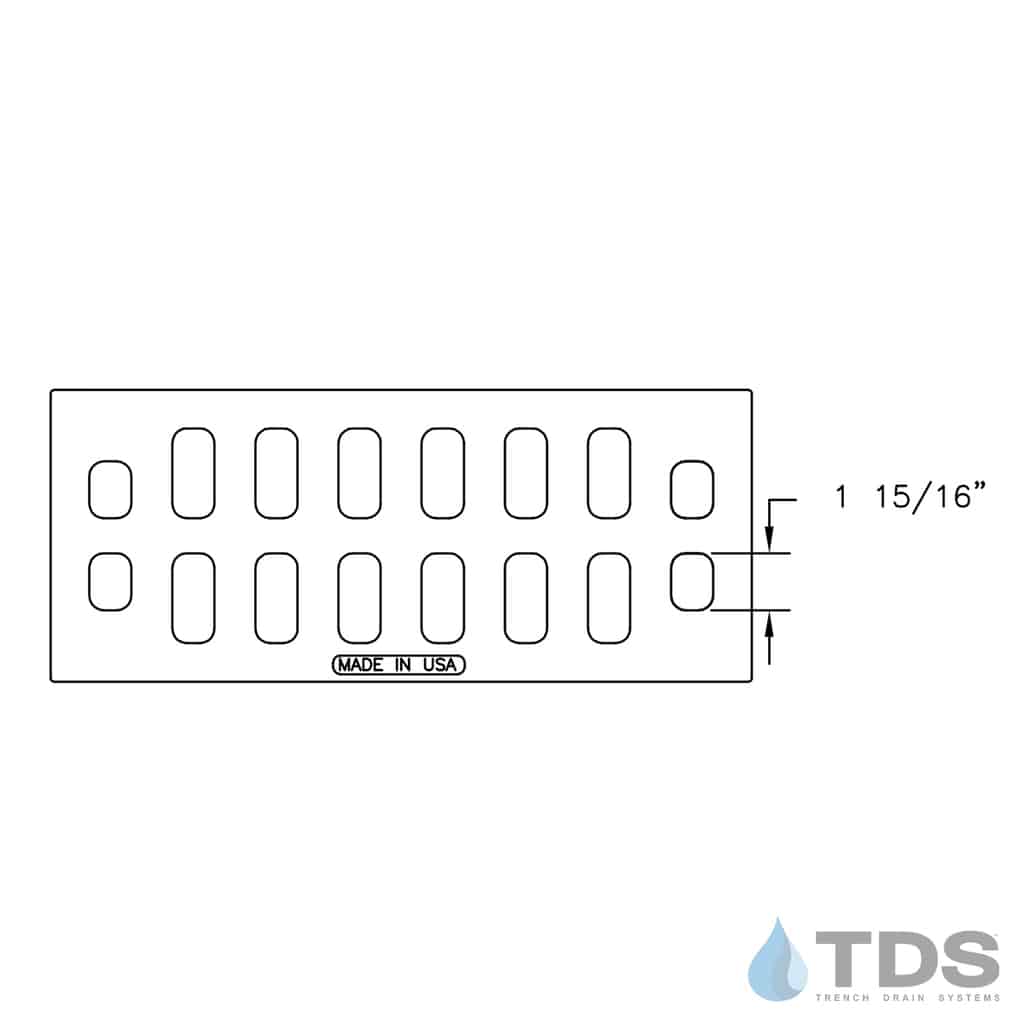

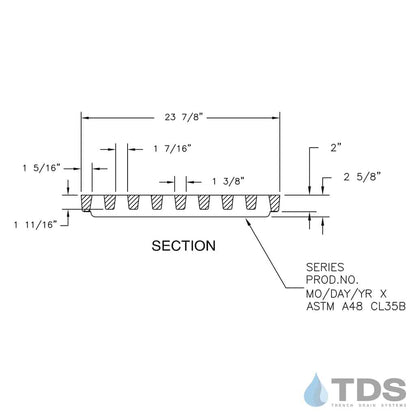

Cast iron heavy duty grate. Grate openings are 1-7/16" wide. Bottom "leveling feet" can be ground for proper height adjustment. Each individual grate weighs 50 lbs each.

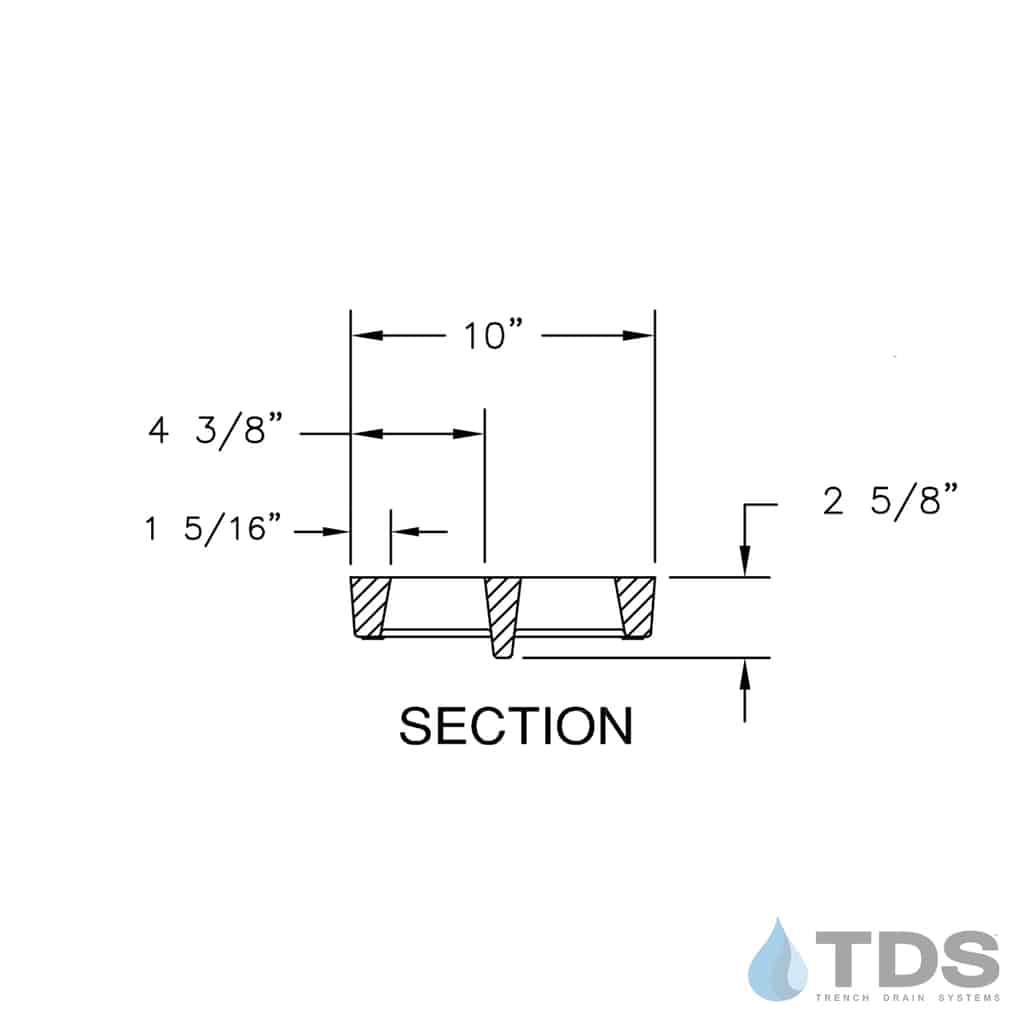

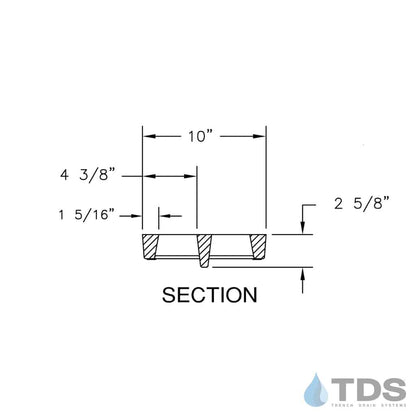

Measures: 10″ x 24″ x 2"

Class 35B, ASTM A48, Heavy Duty

Made in the USA

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
