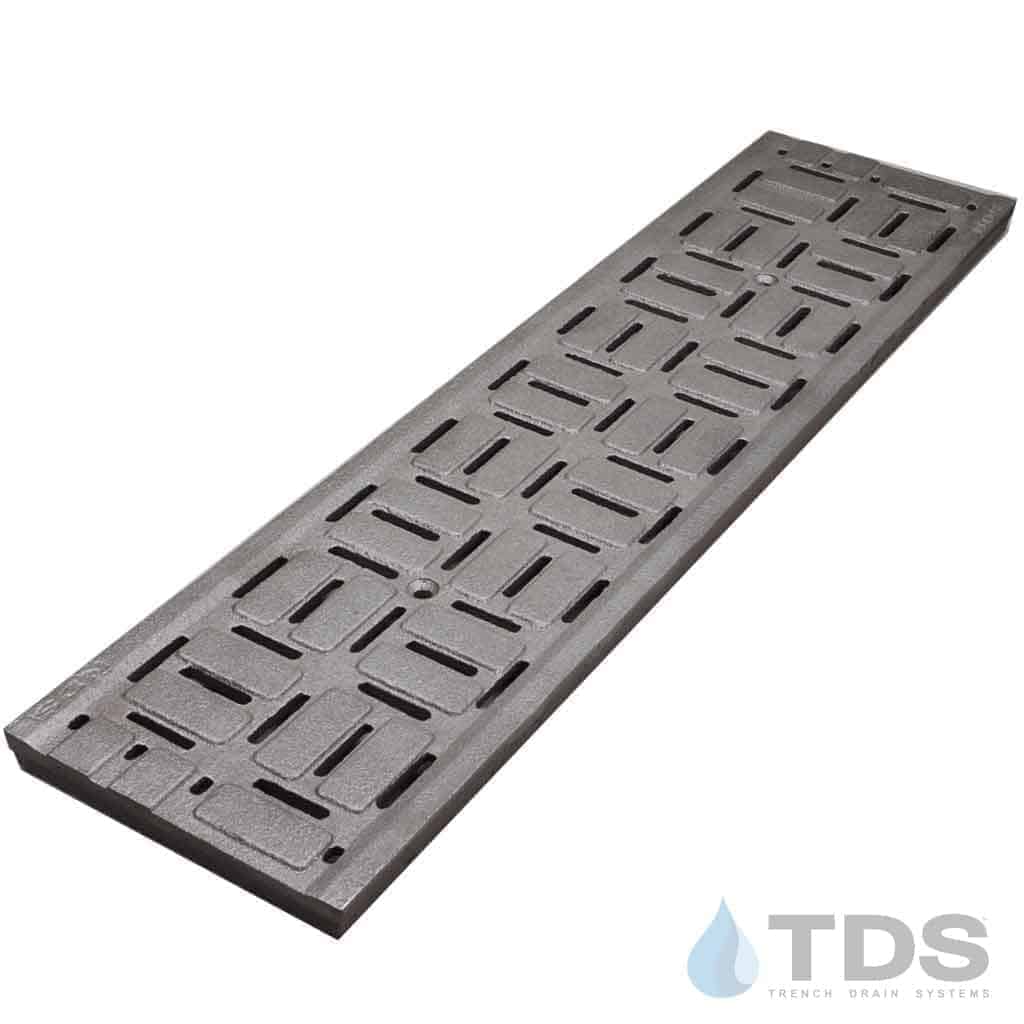

NDS® DS-604 Class D Brick Ductile Iron 6" x 24" Grate - RAW

Grate Width: 6.00" for NDS DuraSlope

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS

System: Dura Slope

Grate Load Class: Class D

Grate Pattern: BRICK

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Ductile Iron decorative grate in a Brick pattern for the NDS® Dura Slope trench drain system. Open surface area is 11.35 square inches per foot. Class D: Loads 176-325 psi. Recommended for heavy-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph. H-20 rated.

Replacement grate for your Dura Slope trench drain.
Large project? Request a Quote

• Width 6"
• Length 24"
• Height 3/4"
