TDS DG0900 Class F H-20 Slotted Ductile Iron 6" x 16" Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 900

Grate Load Class: Class F

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - Ductile Iron

Application: General Purpose Drainage - External and Transportation

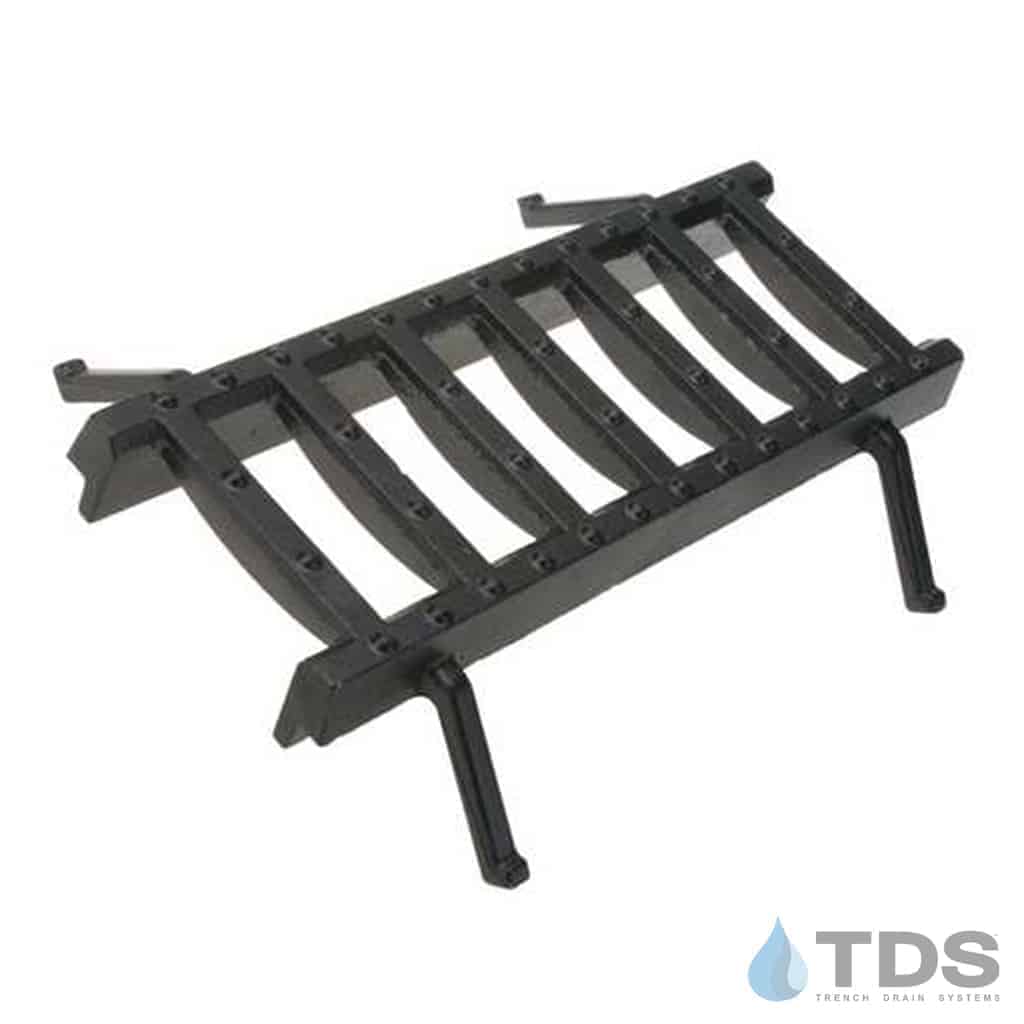

One-Piece Ductile Iron Grate and Frame offered exclusively by TDS, for Heavy Duty Applications, Load Class F, H-20, with four (4) integral cast lugs for permanent and secure anchoring.

This heavy-duty slotted ductile iron grate can replace old POLYCAST® grates as a safe and secure option. The 900 Series One-piece (Non-Removable) Frame and Grate is used with the POLYCAST®600 channel and features four (4) integral cast lugs every 16 inches to permanently and securely anchor it to the surrounding concrete. The 9/16 inch diameter integral lugs help the grate to withstand high-speed highway traffic and snowplow blades, preventing channels from shifting after installation and distribute heavy loads into the surrounding concrete.

Meets Load Class F, H-20 Loading Requirements for Extra Heavy Loads
Measures 5.7 in x 16 in (nominal)
Slot Size: 1.63 in x 4.72 in, 60% Open Area

These grates are perfect for any high-traffic, heavy load applications such as:

• Highways
• Airport Runways
• Ports & Shipyards
• Fire Stations
• Military Bases
• and much more.

TDS Slotted Ductile Iron Grate - Class F
