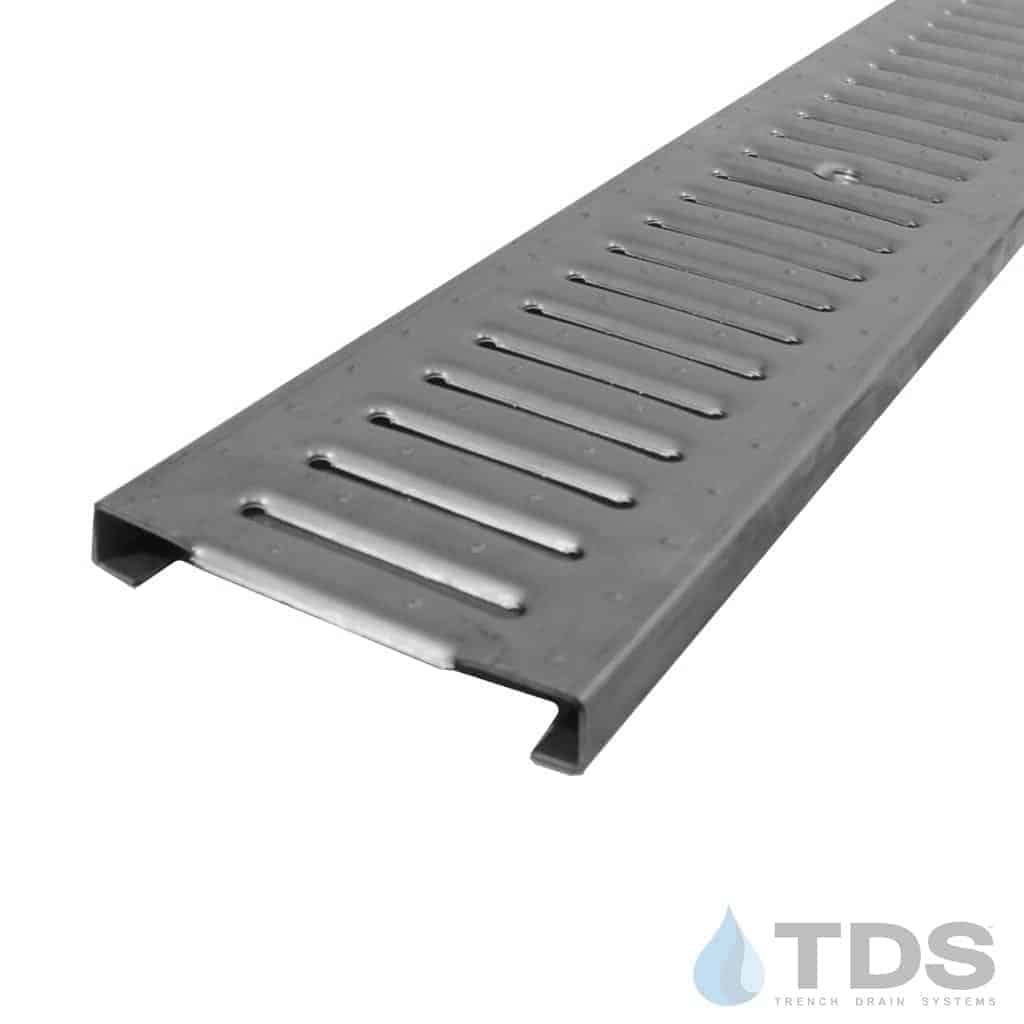

POLYCAST DG0647 Class B Slotted Stainless Steel 6" x 48" Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500 and POLYCAST 600

Grate Load Class: Class B

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Stainless steel for sanitary applications.
Large project? Request a Quote

DG0647 - Class B stainless slotted grate for pedestrian traffic.  Fits SS600 Series drain and POLYCAST® 500 and 600 series polymer concrete trench drain and others. Stainless steel for acidic situations such as breweries and industrial kitchens.

Grating:

• DG0647 - Stainless slotted grate - (Class B Load Rating)
• Open Surface Area: 17% (34IN2)
• Color: Silver

DG0647 Specification Sheet

Locking device not included. Click below on the system for the related locking devices:

POLYCAST® 600 locking device for DG0647

POLYCAST® 700 locking device for DG0647
