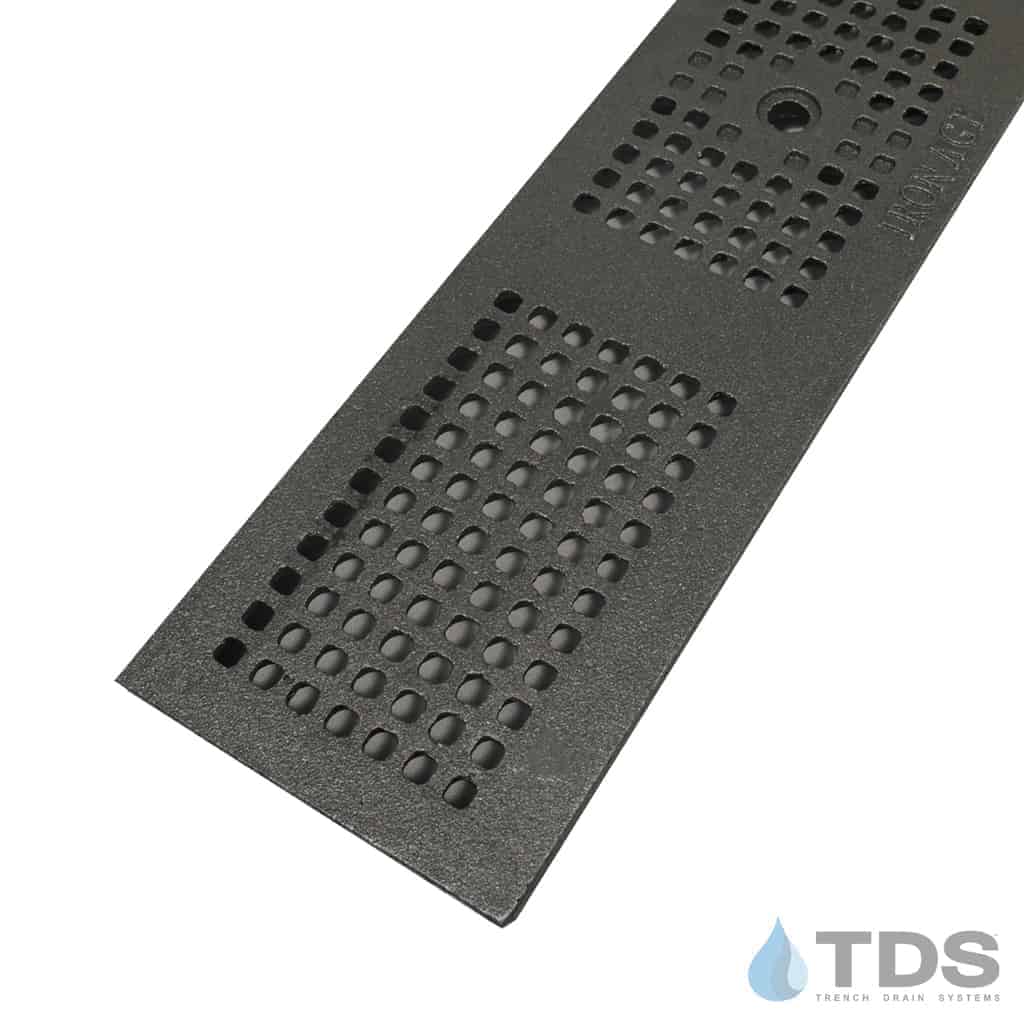

Iron Age IA-BAY-0520-HP Class B Heel-Proof Mission Bay Cast Iron 122mm x 500mm Grate - RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: MISSION BAY

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age grate MBA5-20I21HP

Actual Dimensions: 4.81″ [122 mm] x 19.56″ [497 mm] x .81″ [20.5 mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the ULMA U100, MEArin 100 Channel drain system and others. The Mission Bay pattern is available in either the raw casting or baked-on oil finish (BoOF).

Actual Dimensions: 4.81" [122 mm] x 19.56" [497 mm] x .81" [20.5 mm]

Specification Sheet IA-BAY-0520-HP

Designed to fit:

• ULMA
• MEArin 100 by MEA-Josam
• MEA J1000 by MEA-Josam
• Enviro-Flo by J.R. Smith
• Alfa Channel by MultiDrain
• ABT - Polydrain
• Other metric drain systems

Locking device sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish (BoOF)? Click Here to learn more
