DG3043D Class D ADA Compliant Transverse Slotted Ductile Iron 8"x24"x1.5" Grate

DG3043D Class D ADA Compliant Transverse Slotted Ductile Iron 8"x24"x1.5" Grate

  • DG3043D 3000 Series Black Transverse Slotted ADA Grate Class D400
1 1

Drainage Kits

DG3043D

ADA Compliant Large Project? Request Quote.
$101.03 USD
$101.03 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 8.00"
  • Grate Thickness: 1.50"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: TDS
  • System: 3000 Series, FE0600, FF Series, FP1200
  • Grate Load Class: D
  • Grate Pattern: Slotted
  • Grate Pattern Style: Slotted
  • Channel Material: Fiberglass, EPS Foam, Form Your Own OR Site Built
  • Frame/Edging: Galvanized, Stainless
  • Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Transportation

Description

ADA Compliant

Large Project? Request Quote.

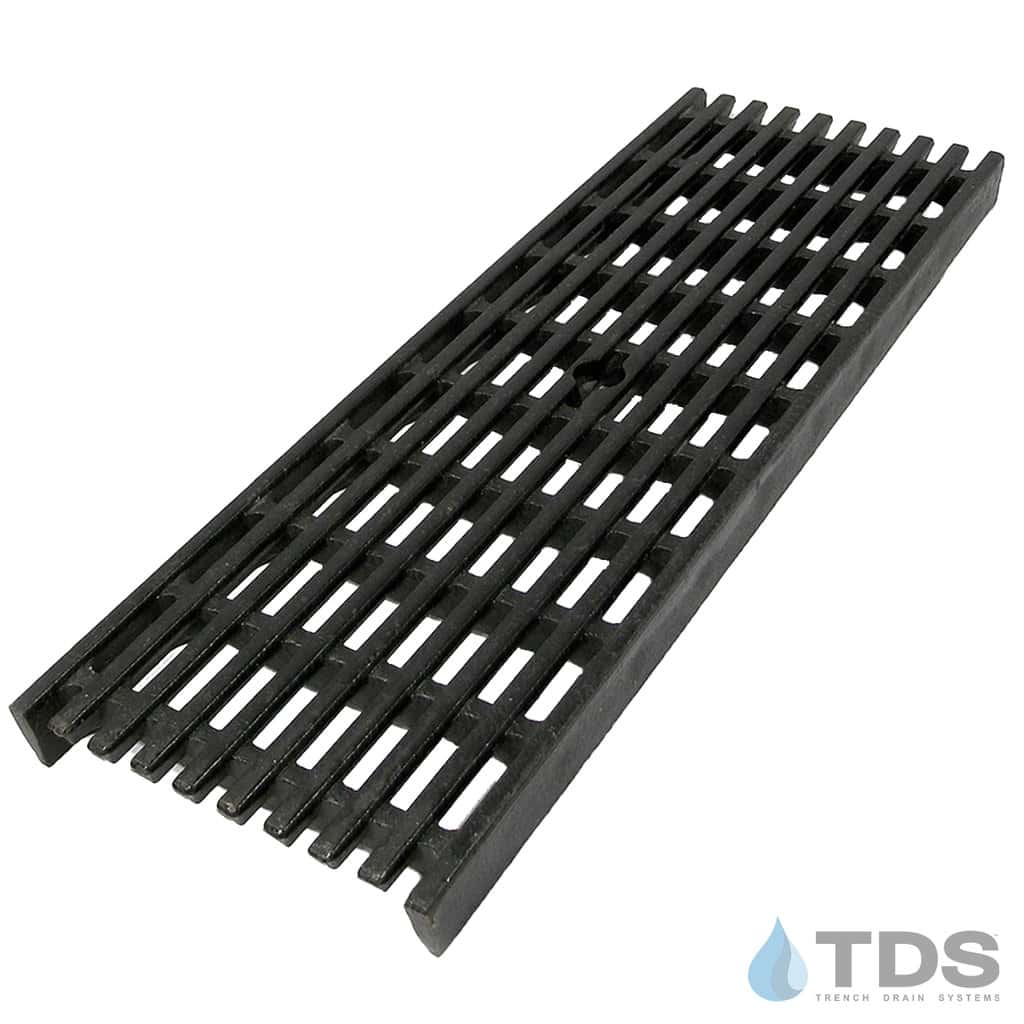

Designed to fit the TDS 3000 Series and the Trench•Era™ drainage systems, this ductile iron grate is ADA-compliant and carries a Load Class D rating. The transverse slotted pattern makes it ideal for pedestrian areas where a heavier load rating is needed.

Accommodates one (1) DA3042B locking device (sold separately)

Measurements: 8″ x 24" x 1 1/2" high, openings measure 1/2" x 2", longitudinal bars are 3/8" wide
Weight: 19 lbs.

DG3043D Grate Specification Sheet

DG3043D Spec Drawing

This ADA-compliant ductile iron grate meets Class D loading requirements.

These grates are perfect for any heavy-duty applications such as:
