NDS 3" Sand Mini Channel Kit with TDS Bronze Age Slotted Grate -Aluminum

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Aluminum

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE) - Sand

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

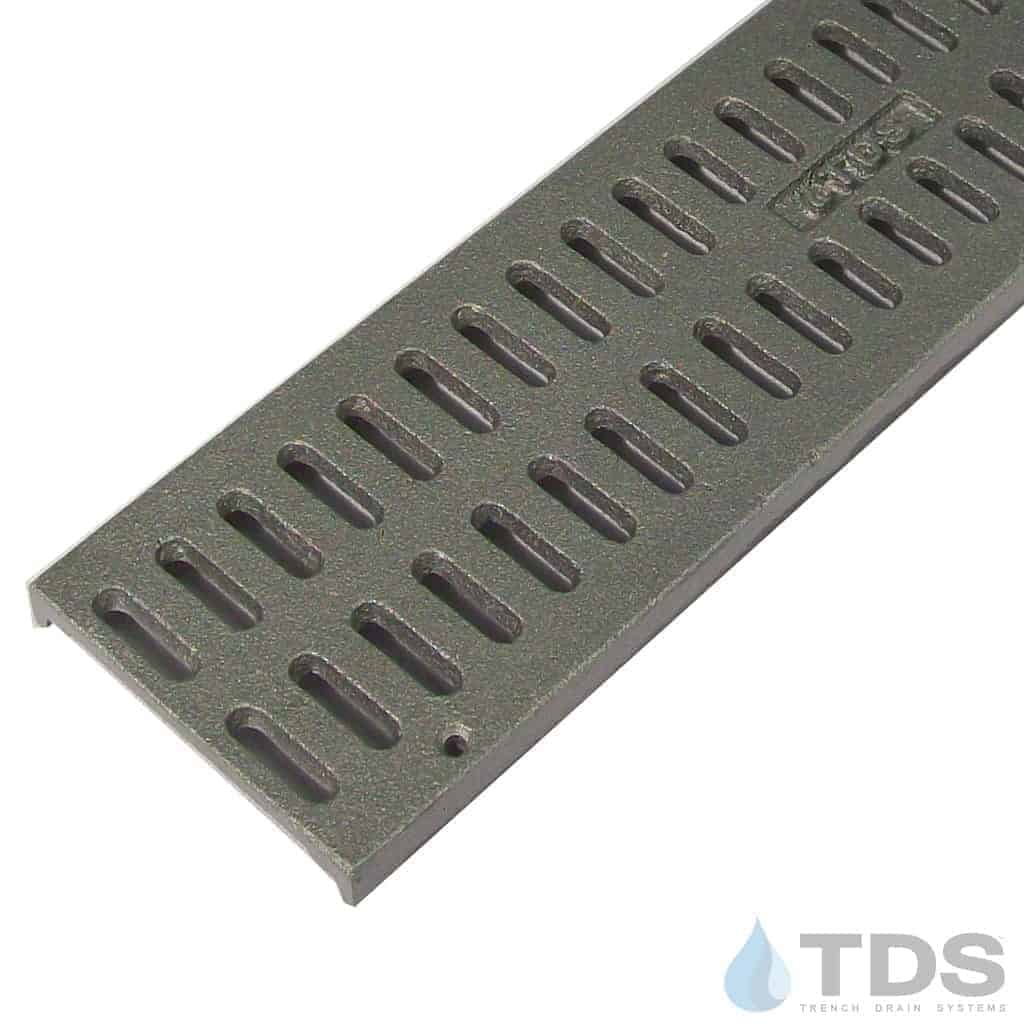

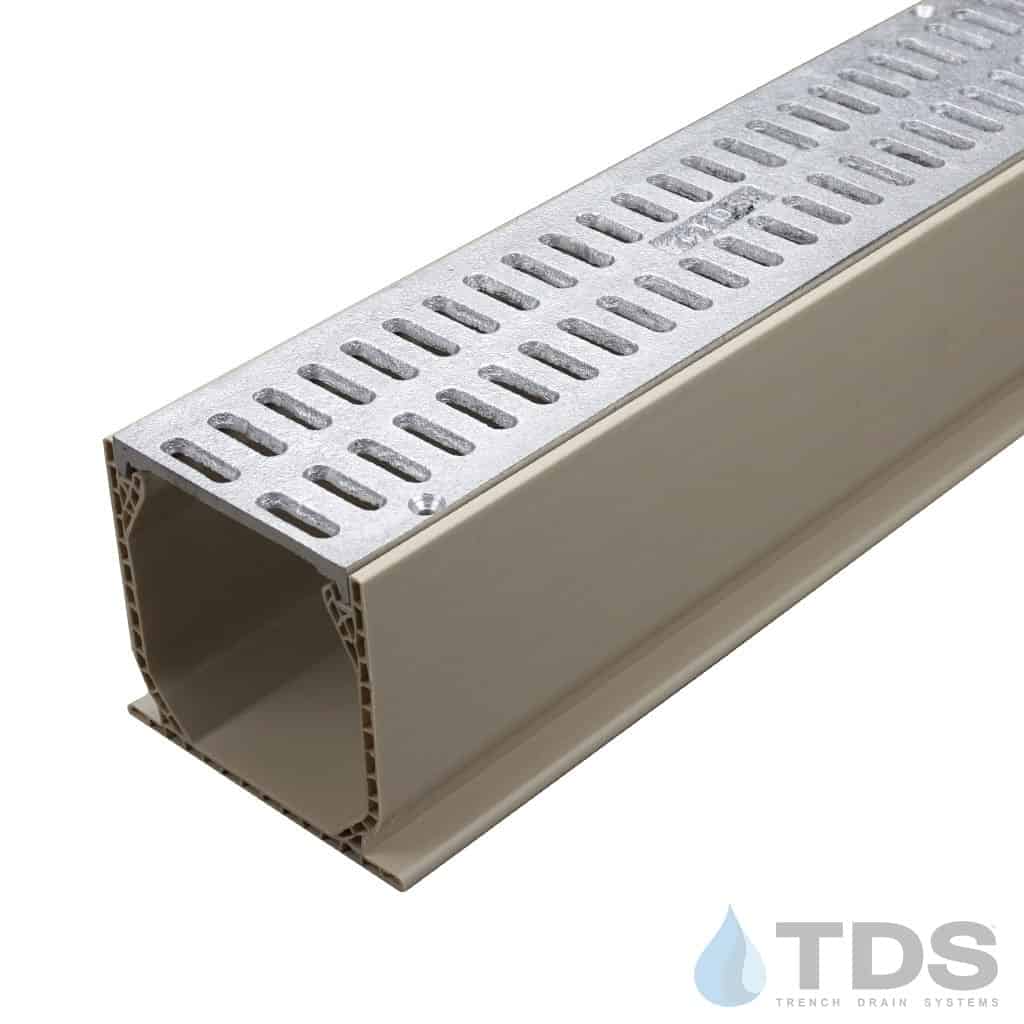

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has an aluminum grate in the Slotted pattern by TDS Bronze Age.

Available online in 6, 12, 18 and 24-foot kits; custom system lengths are available by calling 610-638-1221.

Specification Sheet for BA-SLOT-0312

Mini Channel Installation Guide

Each kit includes:

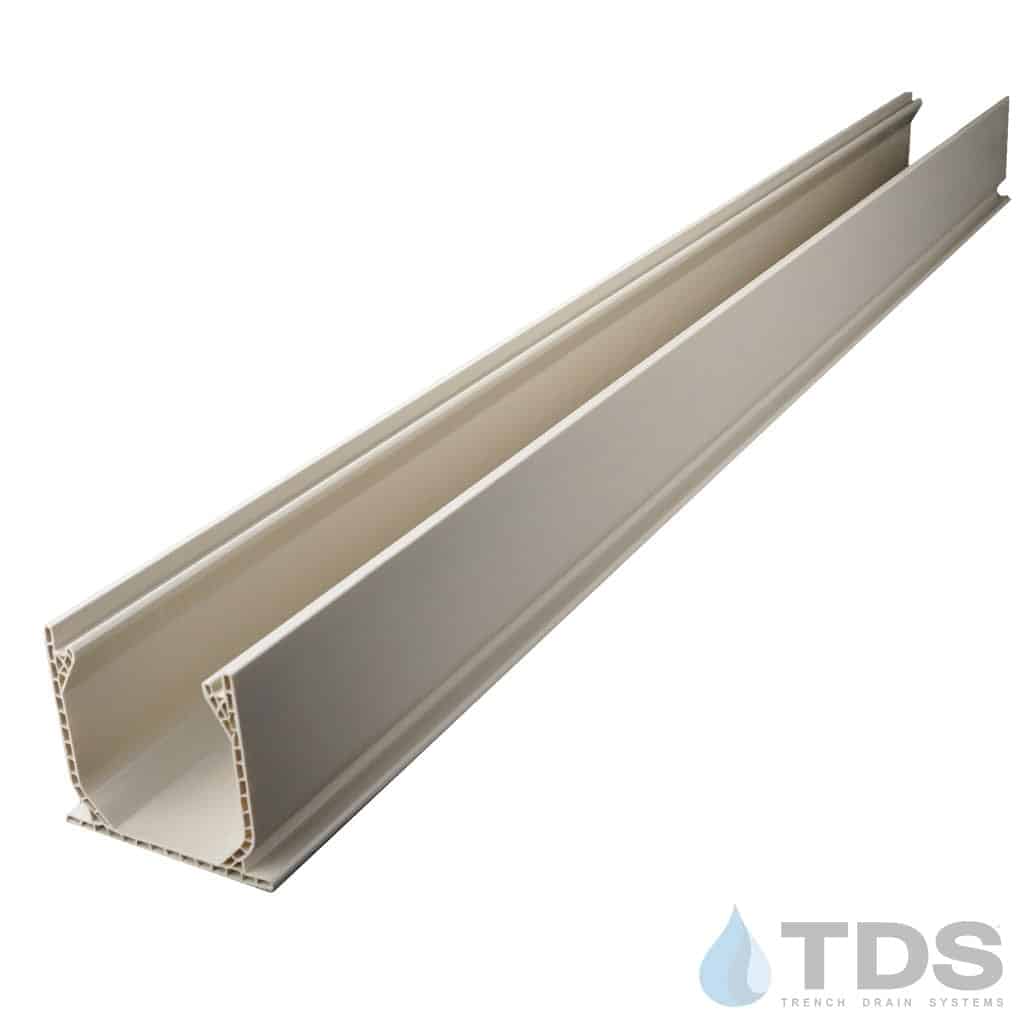

• Channels (in 3′ or 6′ lengths)

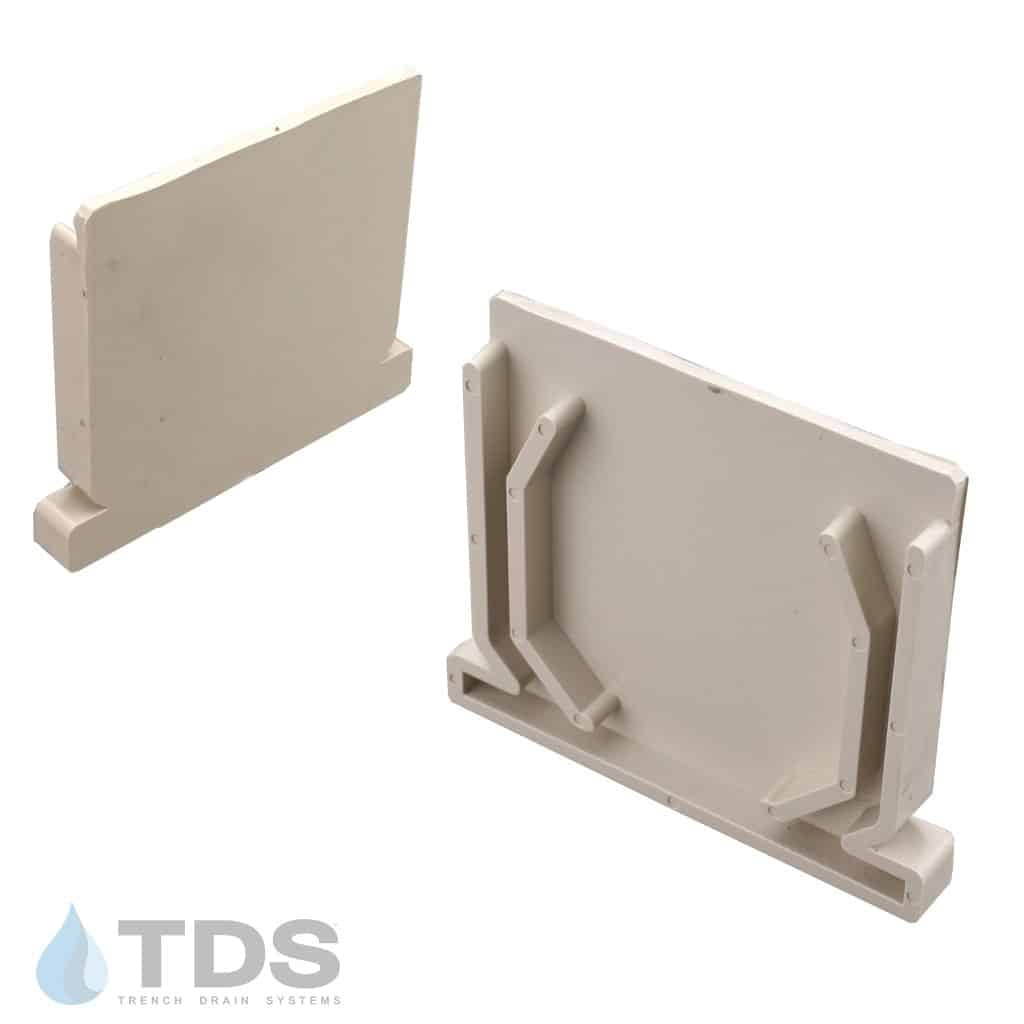

• One End Cap

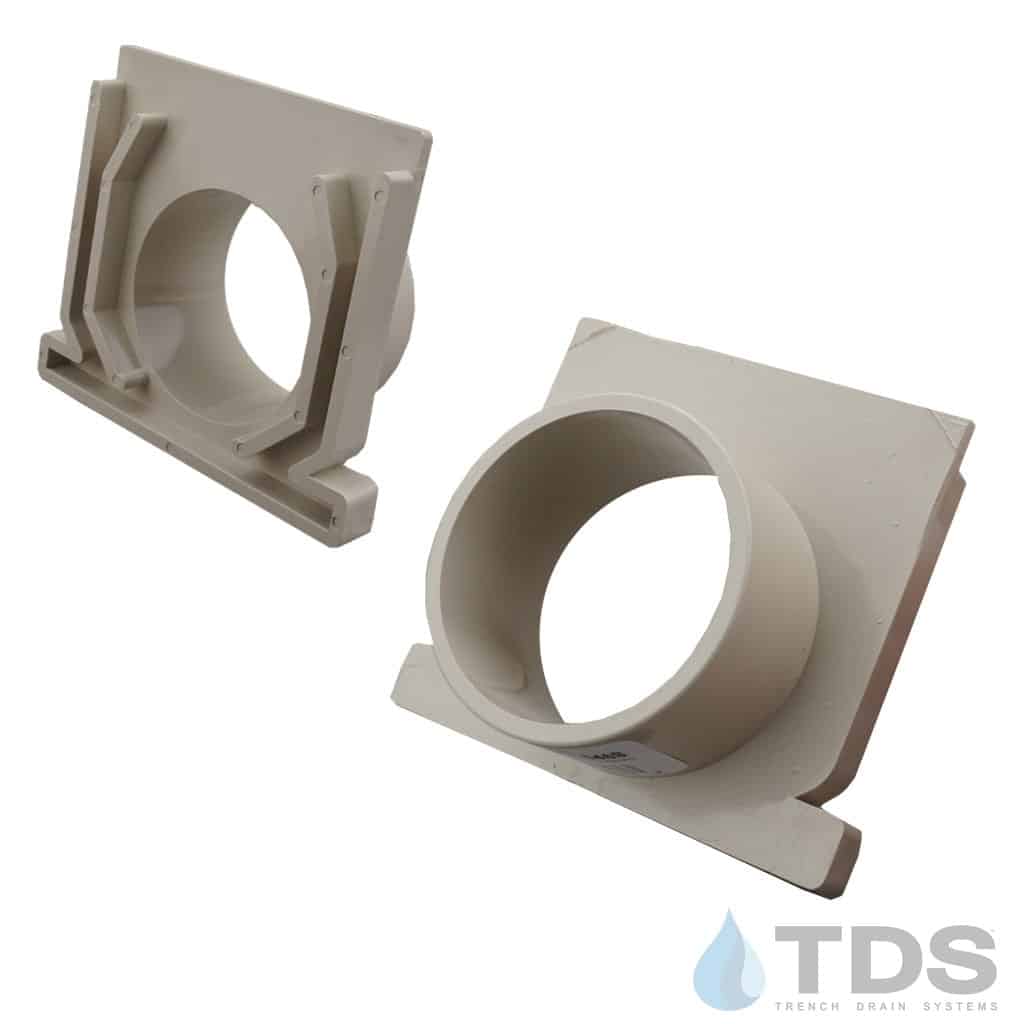

• One Outlet (compatible with SCH 40 pipe)
• Couplers (1 for each joint)
• Grates
• Hold Down Screws (1pkg per kit – 64 pcs)
