NDS 3" Sand Mini Channel Kit with TDS Bronze Age Cathedral Grate - Aluminum

NDS 3" Sand Mini Channel Kit with TDS Bronze Age Cathedral Grate - Aluminum

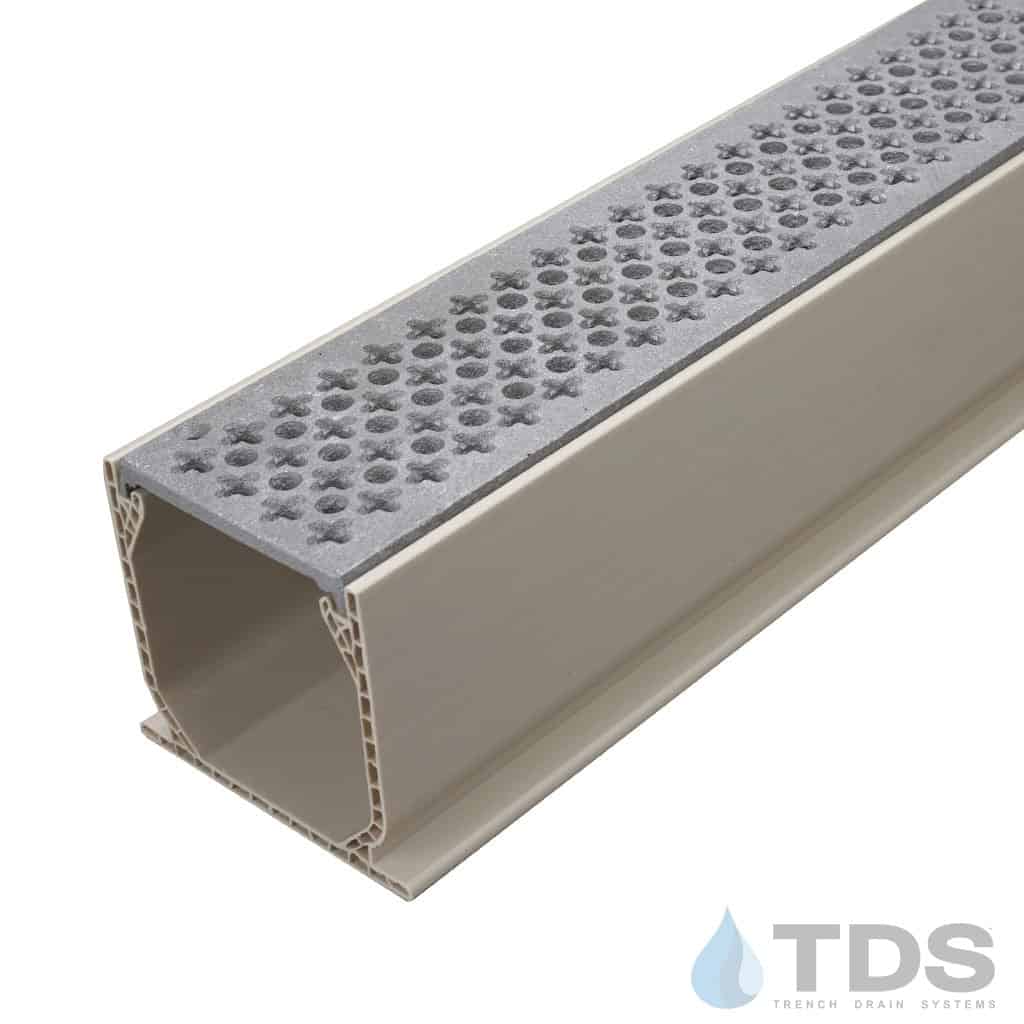

  • MCKS-TDS571-TDSdrains Sand Mini Channel with Aluminum Cathedral Grate
  • TDS500S-TDSdrains
  • Trench Drain Systems natural aluminum cathedral grates for NDS mini channel

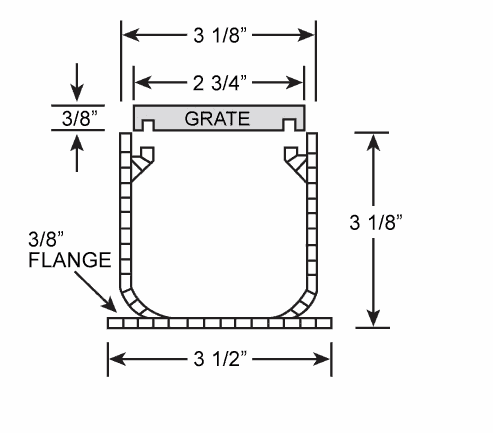

  • mini-channel-side-spec-profile
  • 3" NDS Sand Mini Channel End Outlet MCKS-546-TDSdrains
  • NDS 3" Sand Mini Channel End Caps MCKS-547-TDSdrains
  • 3" NDS Sand Mini Channel Coupler MCKS-548-TDSdrains
1 7

Drainage Kits

MCKS-BA-CATH-A-06

  • Kit includes:

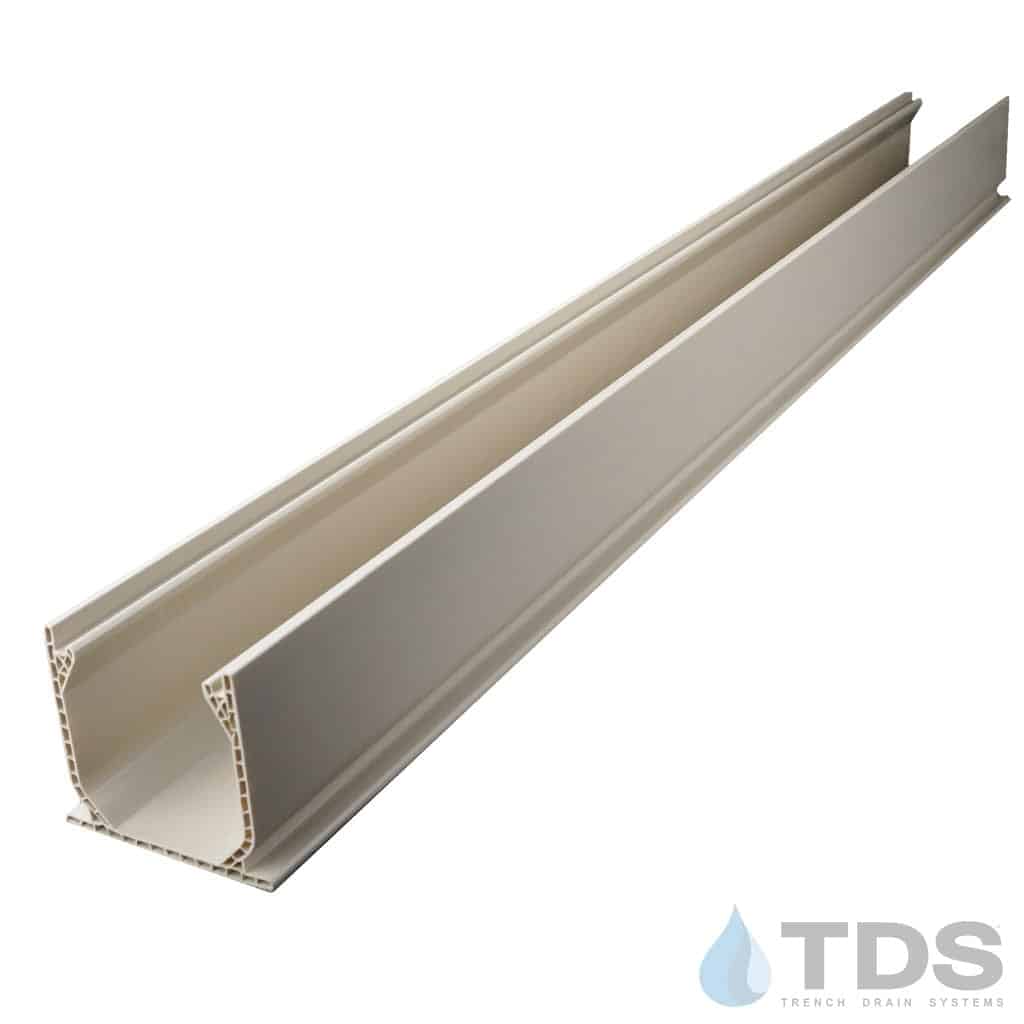

  • NDS 500S Channel (1) for every 6ft ordered

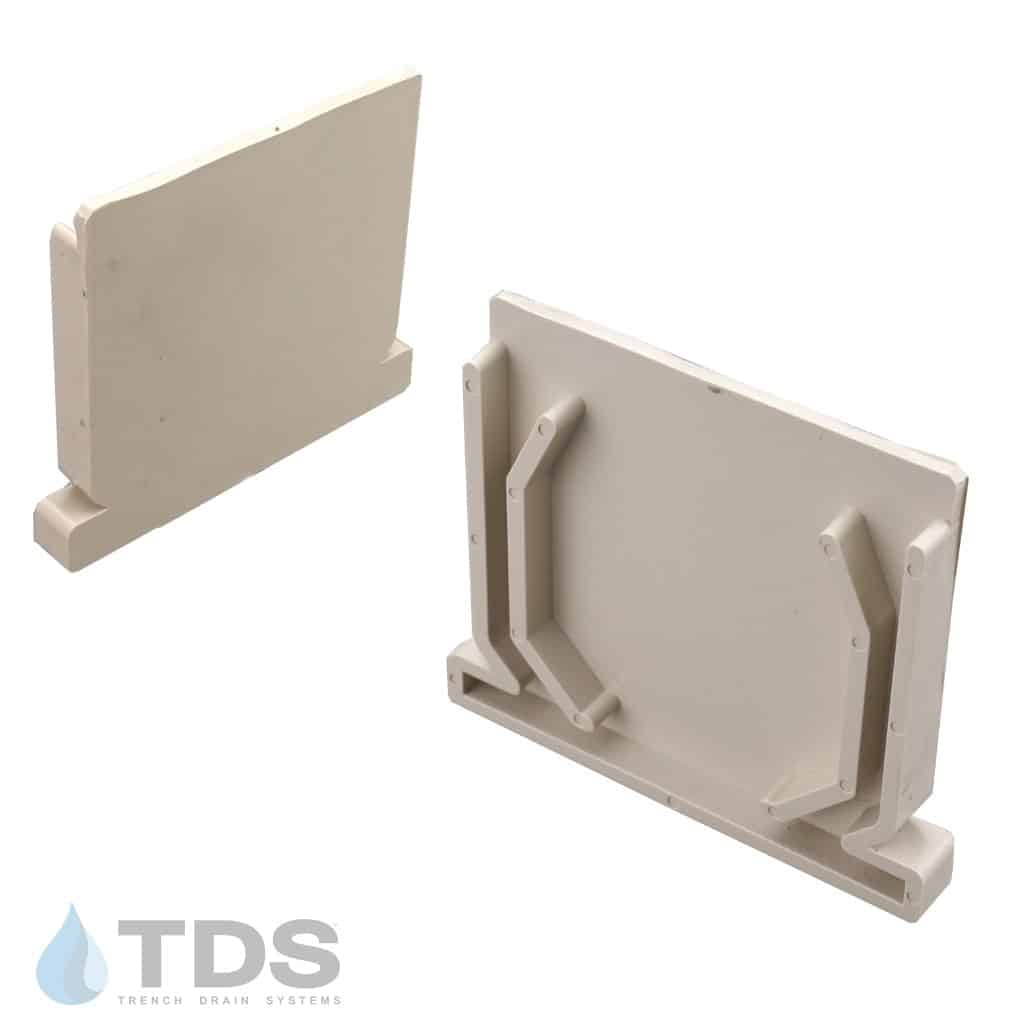

  • NDS 547S End cap (1)

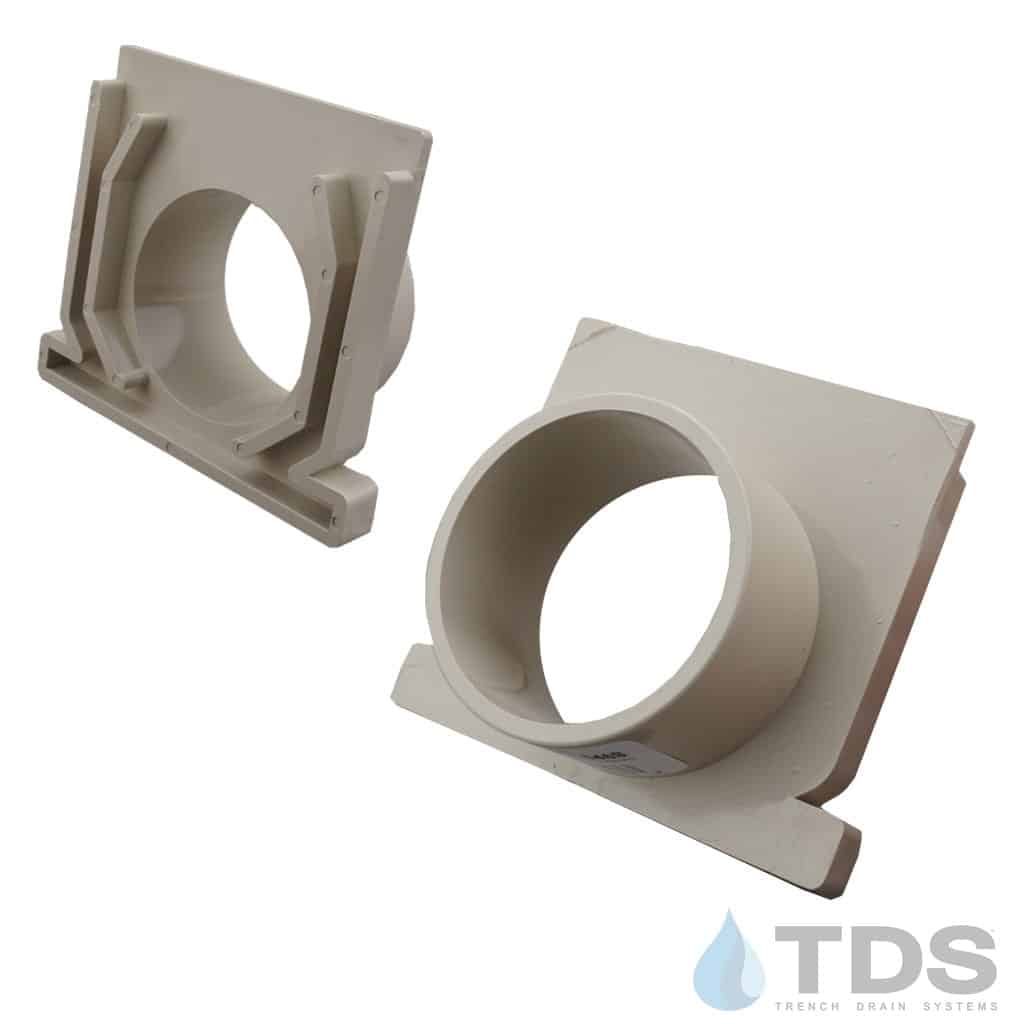

  • NDS 546S End outlet (1)

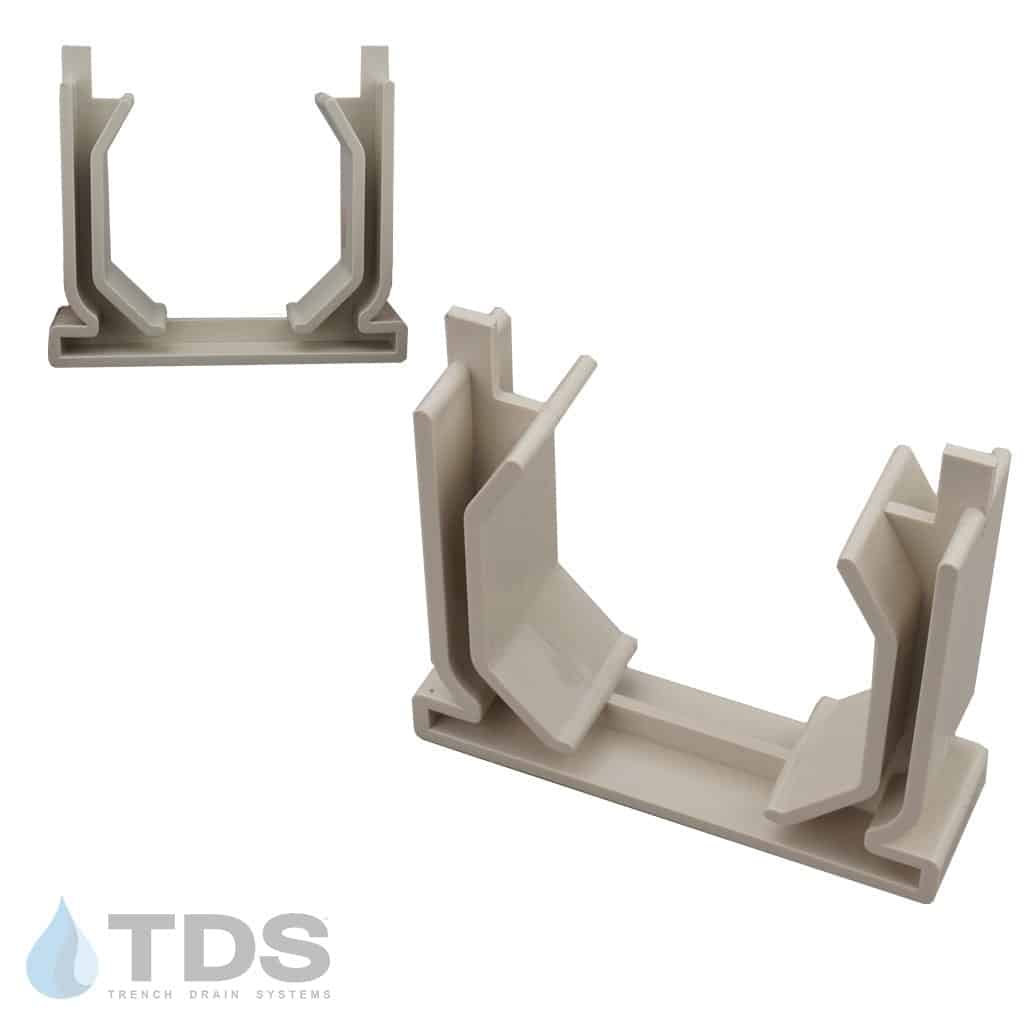

  • NDS 548S Coupler (1) for each channel over 6ft

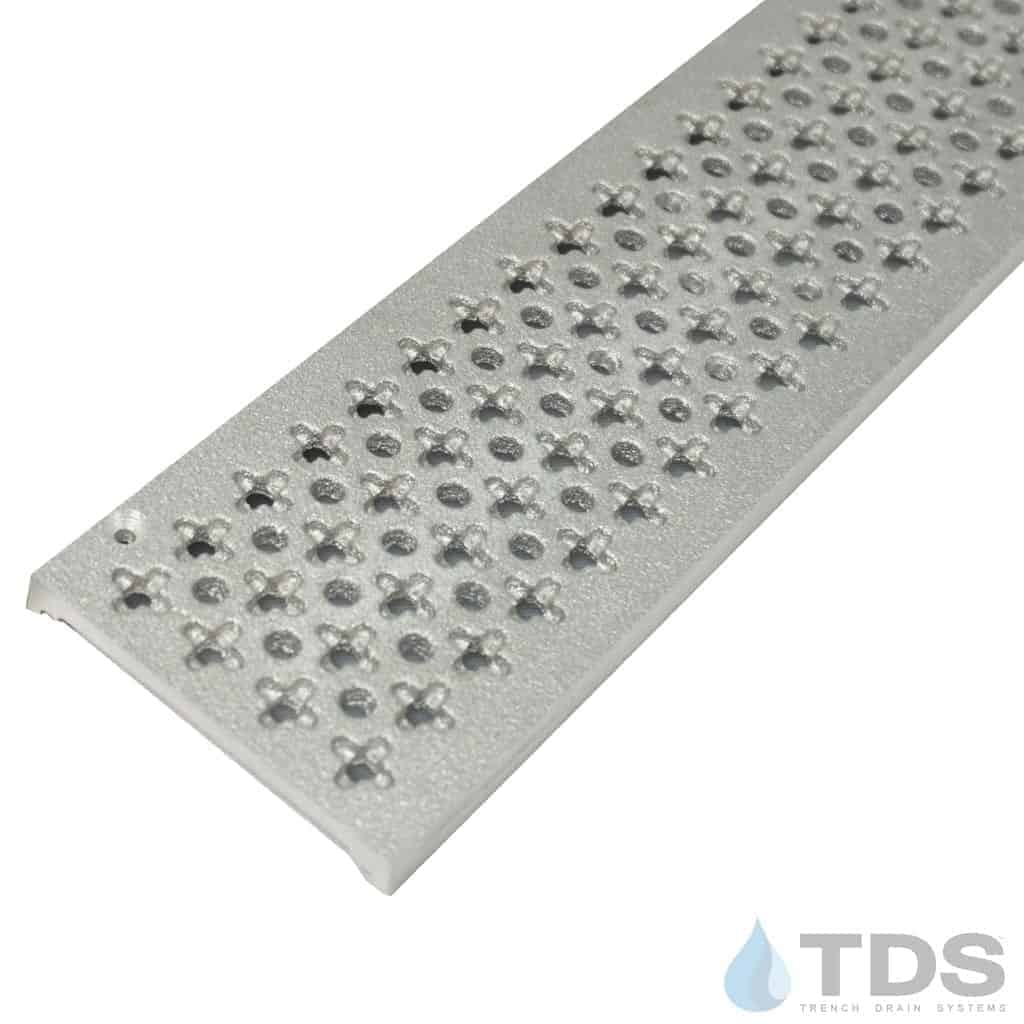

  • TDS Cathedral Aluminum BA-CATH-0312-A
  • NDS 529 Grate hold-down (1pkg per kit – 64 pcs)

    • $745.30 USD
    $0.00 USD $745.30 USD
    Sale Sold out
    Kit Length
    View full details

    Additional Information

    • Grate Width: 2.75"
    • Grate Thickness: 0.38"
    • Product Type: Channel Kit, Kit
    • Grate Material / Color / Finish: Aluminum
    • Manufacturer: NDS, TDS
    • System: Mini Channel, Bronze Age
    • Grate Load Class: A, B
    • Grate Pattern: Cathedral
    • Grate Pattern Style: Traditional, Perforated
    • Channel Material: Plastic (PP, HDPE, PE) - Sand
    • Frame/Edging: No Frame, No Edging
    • Application: Decorative, Residential, Sport Complex - Recreational

    Description

    Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has a aluminum grate in the Cathedral pattern by TDS Bronze Age.

    Available online in 6, 12, 18 and 24 foot kits; custom system lengths are available by calling 610-638-1221.




    Specification Sheet for BA-CATH-0312

    Mini Channel Installation Guide

    Each kit includes:

    • Channels (in 3′ or 6′ lengths)
    • One End Cap
    • One Outlet (compatible with SCH 40 pipe)
    • Couplers (1 for each joint)
    • Grates
    • Hold Down Screws (1pkg per kit – 64 pcs)
