3" Gray NDS Mini Channel Kit w/Cathedral 316L Stainless Steel HP Grates

3" Gray NDS Mini Channel Kit w/Cathedral 316L Stainless Steel HP Grates

  • MCK-BA-cath-0336 Grey NDS Mini Channel with Stainless Steel Cathedral Grate
  • NDS Mini Channel - Grey
  • mini-channel-side-spec-profile
  • NDS-mini-547-TDSdrains end cap
  • NDS-mini-546-TDSdrains outlet

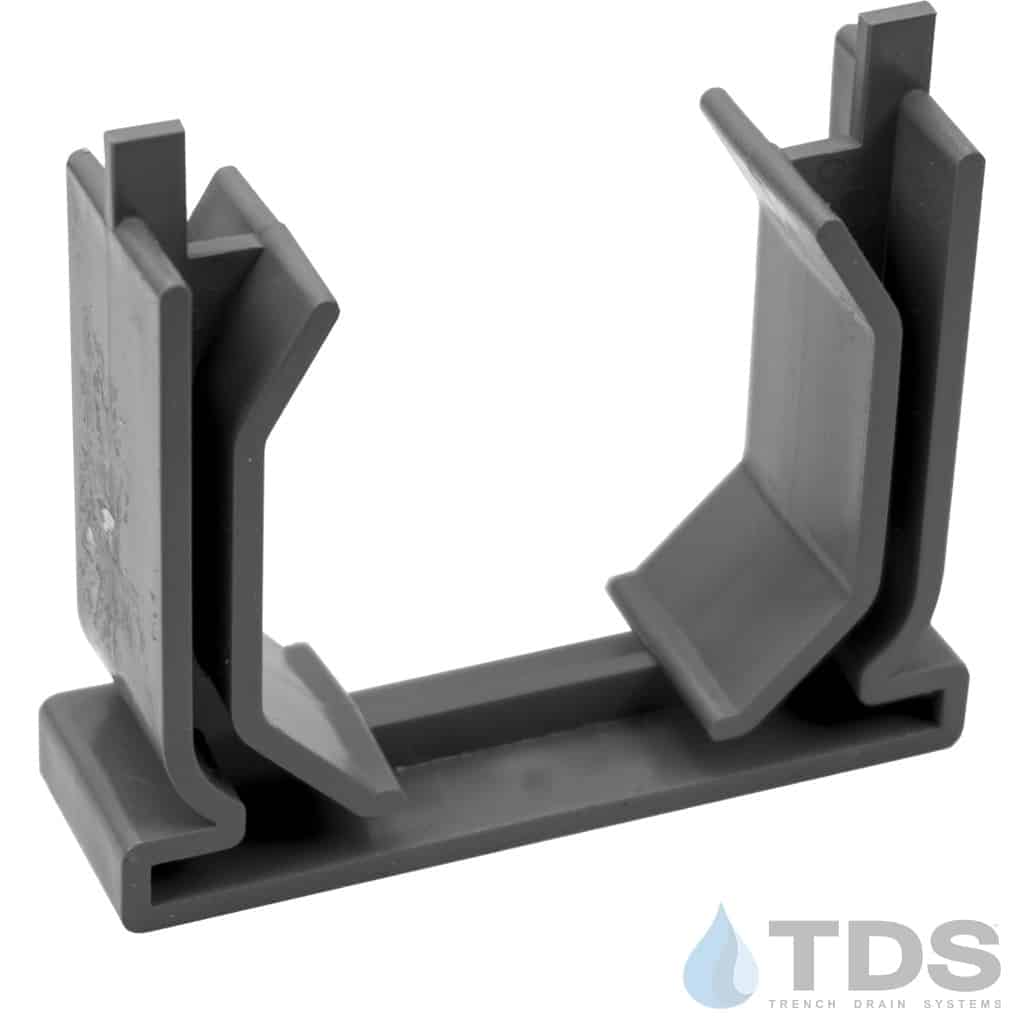

  • NDS-mini-548-TDSdrains NDS coupler
1 7

Drainage Kits

MCK-TDS-CATH-06

  • Kit includes:
  • NDS 500 Channel (1) for every 6ft ordered
  • NDS 547 End cap (1)
  • NDS 546 End outlet (1)
  • NDS 548 Coupler (1) for each channel over 6ft
  • TDS Cathedral Stainless Steel TDS-CATH-0336
  • NDS 529 Grate hold-down (1pkg per kit – 64 pcs)

    • $688.09 USD
    $688.09 USD
    Sale Sold out
    Kit Length
    View full details

    Additional Information

    • Grate Width: 2.75"
    • Grate Thickness: 0.38"
    • Product Type: Channel Kit, Kit
    • Grate Material / Color / Finish: Stainless Steel 316L
    • Manufacturer: NDS, TDS
    • System: Mini Channel, Bronze Age
    • Grate Load Class: A, B
    • Grate Pattern: Cathedral
    • Grate Pattern Style: Traditional, Perforated
    • Channel Material: Plastic (PP, HDPE, PE) - Gray
    • Frame/Edging: No Frame, No Edging
    • Application: Decorative, Residential, Sport Complex - Recreational

    Description

    Limited Stock. Call for availability. 610-882-3630

    Mini Channel plastic drain is a non-sloped 3" wide system built for light load class B traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin.

    This kit has 316L stainless steel grates in the heelproof Cathedral pattern, an exclusive product from our Bronze Age decorative grate selection.

    mini-channel-side-spec-profile

    Each kit includes:

    • Channels (in 3′ or 6′ lengths)
    • One End Cap
    • One Outlet (compatible with SCH 40 pipe)
    • Couplers (1 for each joint)
    • Grates (1 for every 3′ of channel)
    • Hold Down Screws (1 pkg per kit - 64 pcs)

    Available online in 6, 12, 18 and 24 foot kits. Custom system lengths are available: Request Quote

    Mini Channel Installation Guide
