NDS® Slim Channel Kit w/BA-SLOT TDS Bronze Slotted Grate - Brushed Finish

Grate Width: 2.25" for NDS Slim Channel

Grate Thickness: 0.25" with T-Top

Grate Material / Color / Finish: Bronze - Brushed

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Slim Channel

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative and Residential

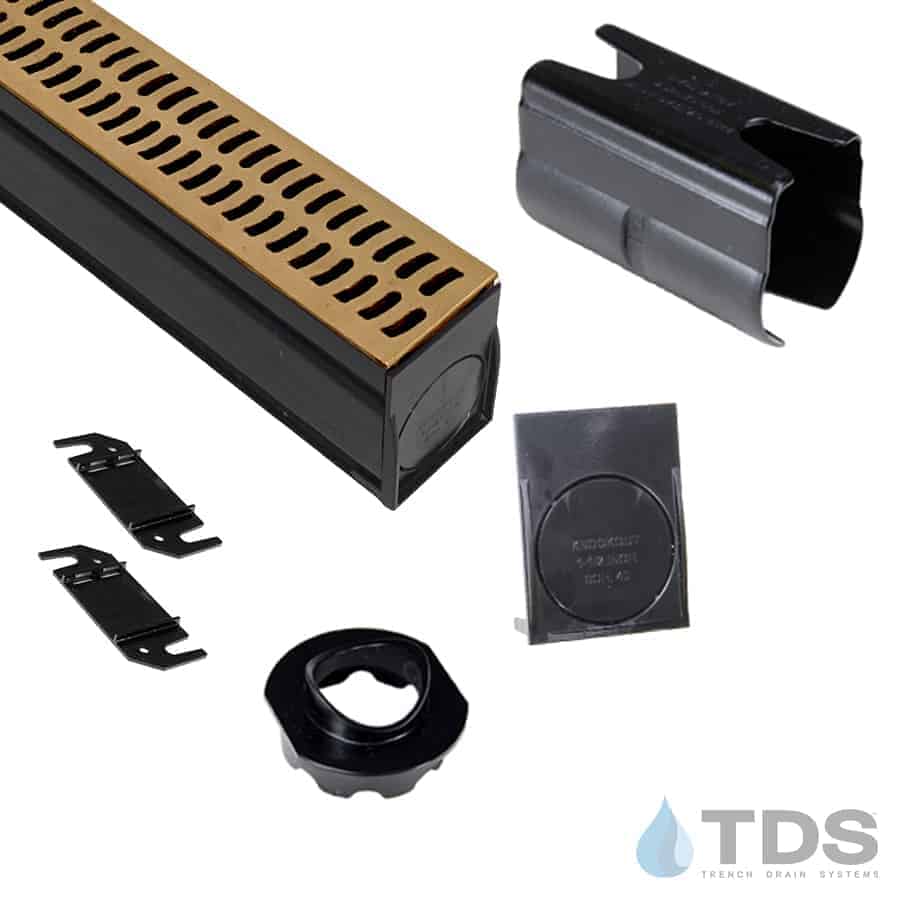

Each Kit includes:

• Neutral Channels
• Removable Grates

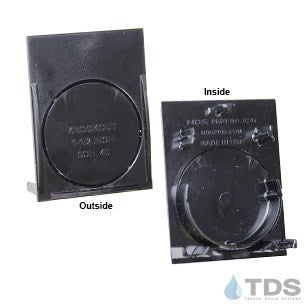

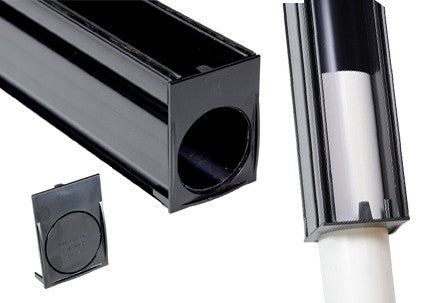

• 2 End Caps (with knockout for 1.5 in SCH 40)
• Anchor Clips
• 1 Bottom Outlet
• Couplers (for kits longer than 6 ft)

Large Project? Request Quote.

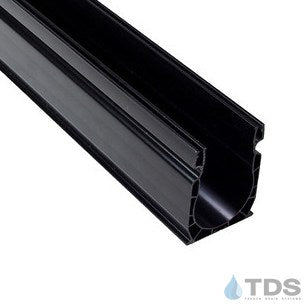

The 2-inch wide Slim Channel kit by NDS® is a complete drain system featuring a robust PVC channel in 6-foot lengths. This Load Class A drainage kit is ideal for light-duty residential outdoor living applications such as pools, spas, and patios. Each channel is topped off with a slotted brushed bronze grate (BA-SLOT-0312-B), from the Bronze Age™ collection exclusively at Trench Drain Systems.

The NDS Slim Channel kit contains channel grates, end caps, and anchor clips which, secure the channel to the base. Couplers are included for kits longer than 6 feet for a secure channel-to-channel connection. A bottom outlet is included to be used with 1.5 in SCH 40 pipe. The bottom outlet can be placed anywhere along the line for easy installation. Prefabricated 45° elbows, 90’ elbows, and Tees are also available (sold separately). Slim Channel Accessories Spec Sheet

Each Kit includes:

• Neutral Channels
• Removable Grates
• 2 End Caps (with knockout for 1.5 in SCH 40)
• Anchor Clips
• 1 Bottom Outlet
• Couplers (for kits longer than 6 ft)

BA-SLOT-0212 Specification Sheet

Slim Channel Overview WATCH VIDEO

Slim Channel Parts and Features WATCH VIDEO
