Bronze Age BA-CATH-0312-A Class A Cathedral Aluminum 3" x 12" Grate

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Aluminum

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: CATHEDRAL

Grate Pattern Style: TRADITIONAL and PERFORATED

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

DrainageKits.com exclusive! For your NDS Mini Channel drain.

Actual Dimensions: 2.72″ [69mm] x 12″ [305mm] x .34″ [9mm]

Large project? Request a Quote

Decorative Bronze Age grate with the Cathedral pattern and is available in Aluminum. Grates can be secured in place with 2 fasteners, NDS-529 (not included).

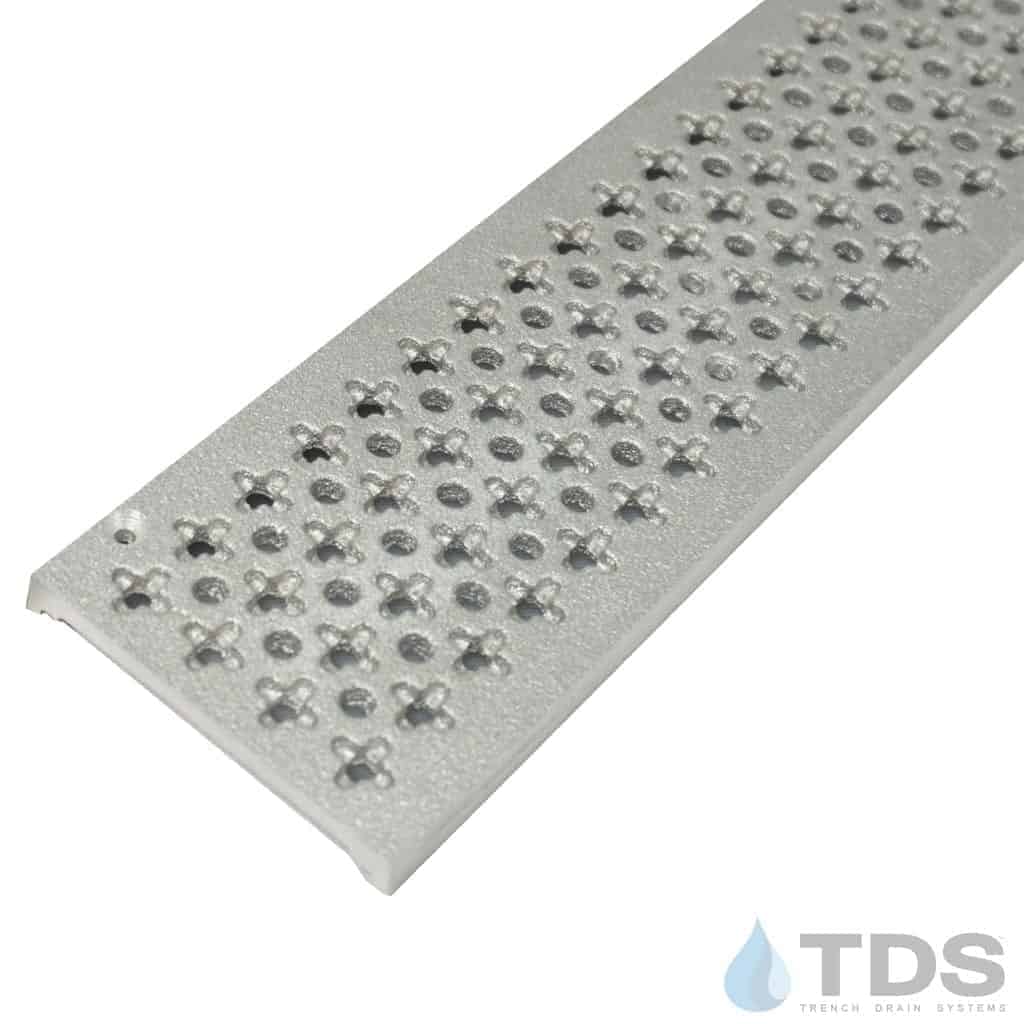

The exclusive Bronze Age Cathedral pattern grate is made to fit your NDS® 3" Mini-Channel trench drain.

This aluminum grate has a natural finish and includes 2 holes for securing to channel using NDS-529 fasteners (sold separately).

Designed to fit: NDS Mini Channel

Actual Dimensions: 2.72" [69mm] x 12" [305mm] x .34" [9mm]

Cathedral Grate Specification Sheet | Class A or B

This system has a Load Class rating of A but can be rated for a B Load Class if properly installed; see specification sheet for details.
