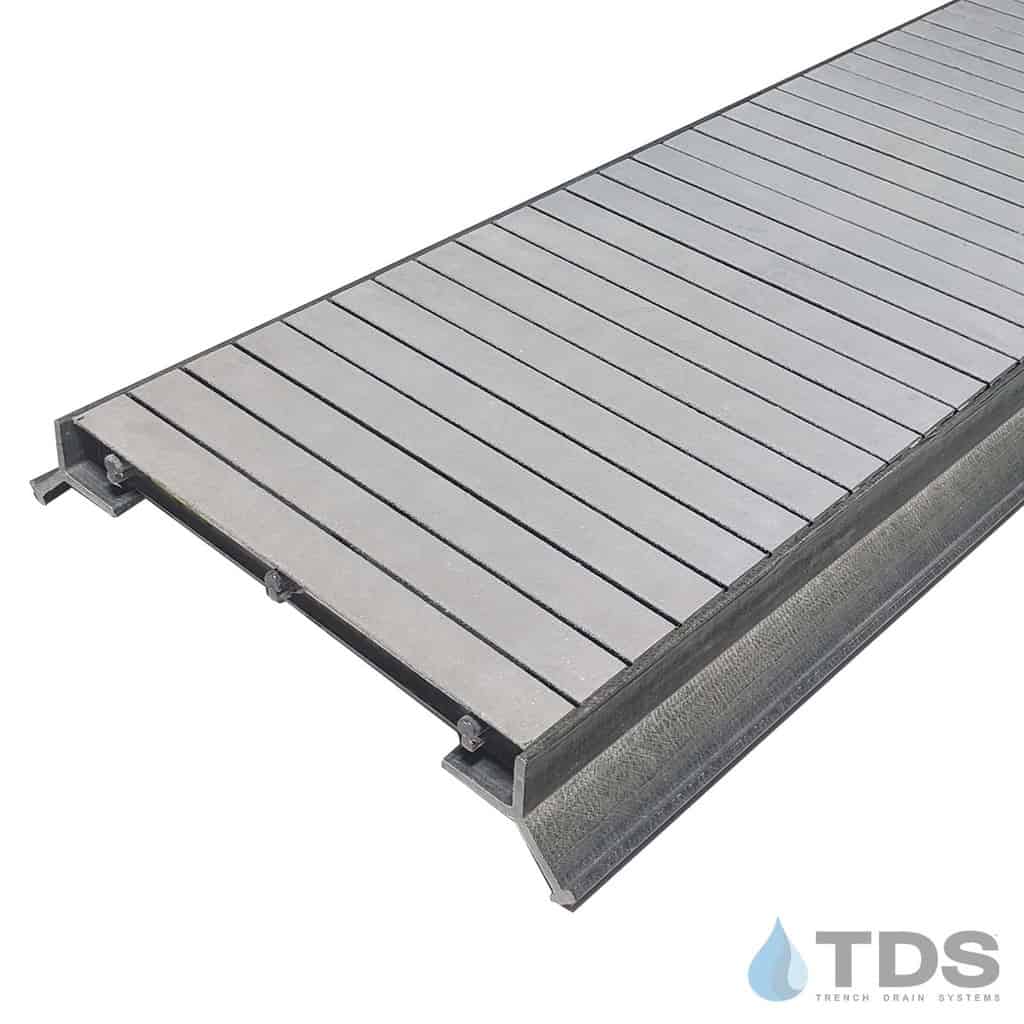

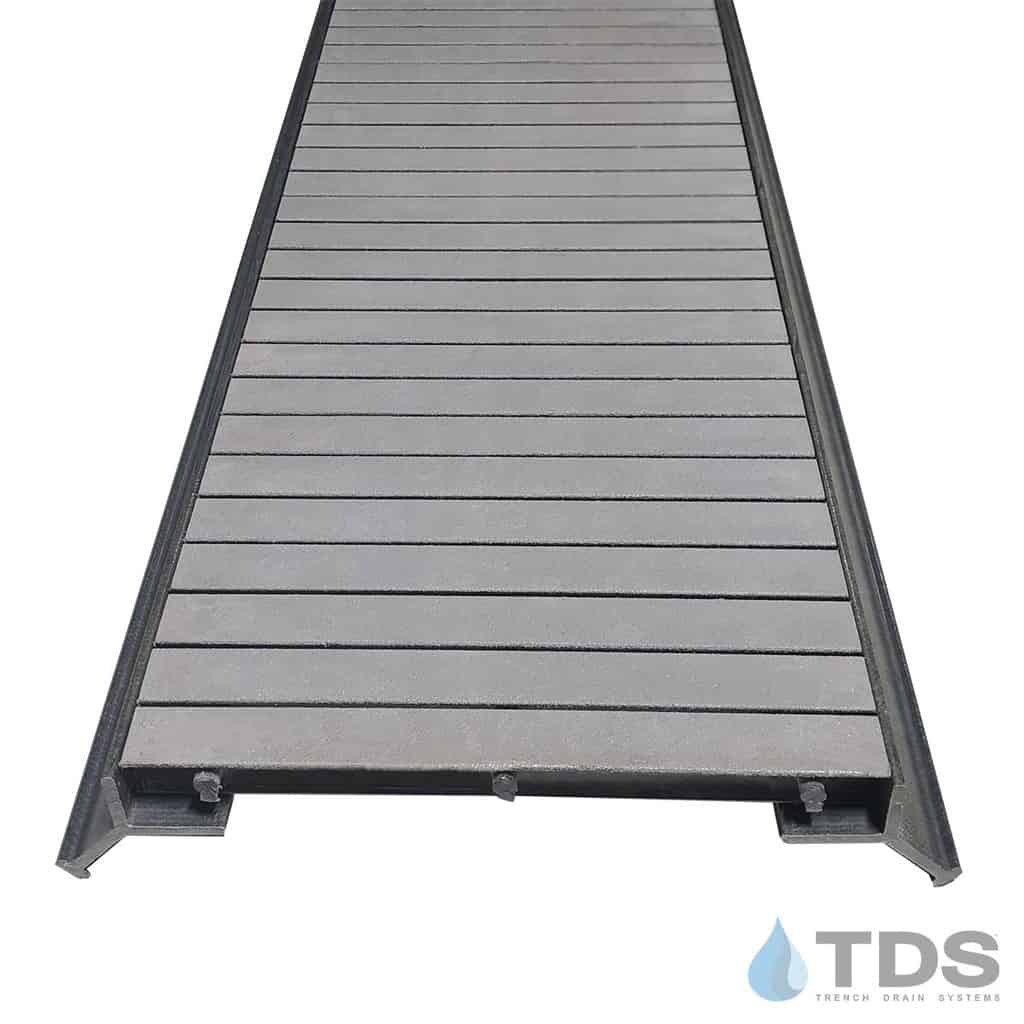

Fiberglass FRP kit with 15" wide heel-proof T-Bar grate(s) and the WYE frame creates an excellent system for applications where longer support spans are required. This kit allows a custom concrete-poured trench to be built using the frame shape as the kit's anchoring system, locking the frame into the concrete pour. The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. This kit, when properly installed, has a Load Class A traffic rating.

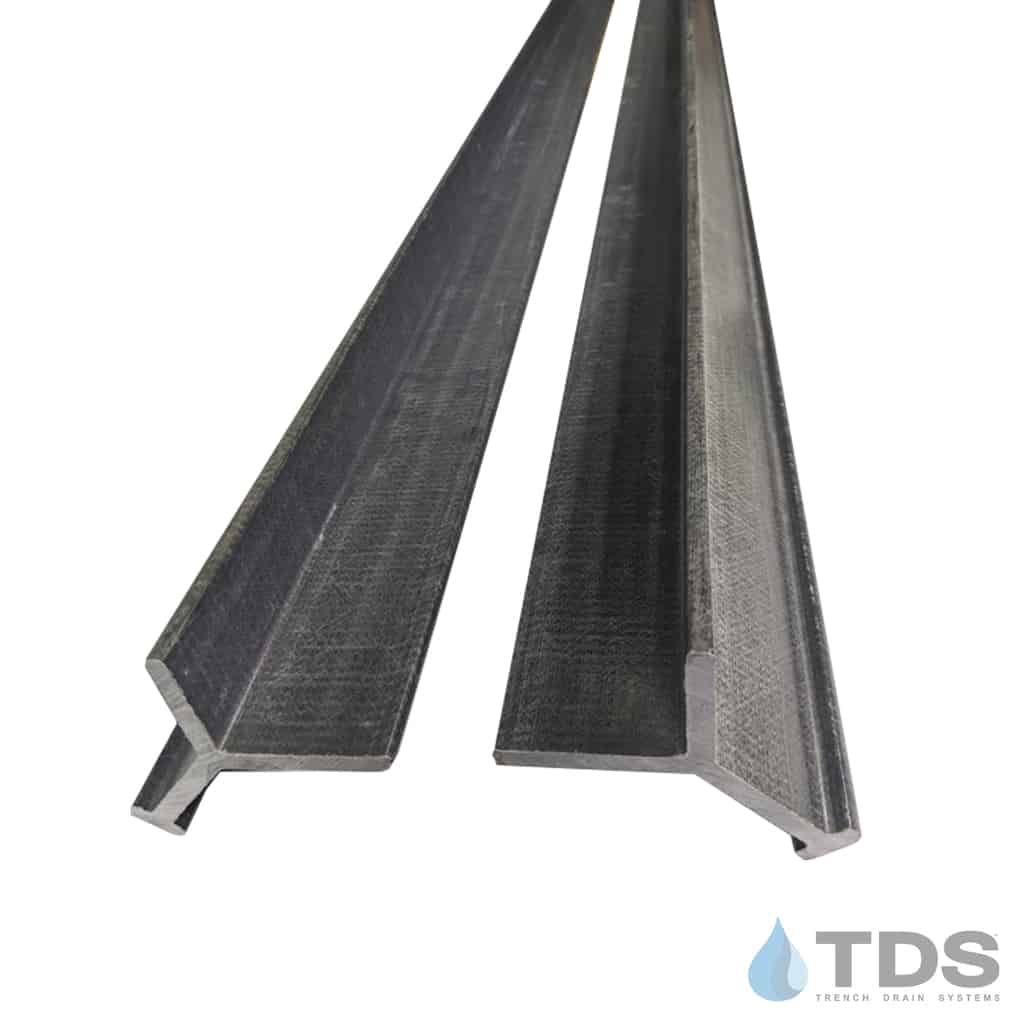

Kit includes grate(s), locking devices (4 per grate), and frame rails. Actual grate width is 15 inches, not including frame rails.
Kits are supplied in 4ft and 8ft sections.
FGK-T1215-WYE Kit Specification Sheet
Fiberglass Kit Installation Guide

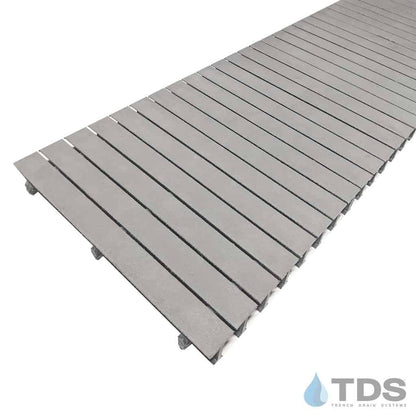

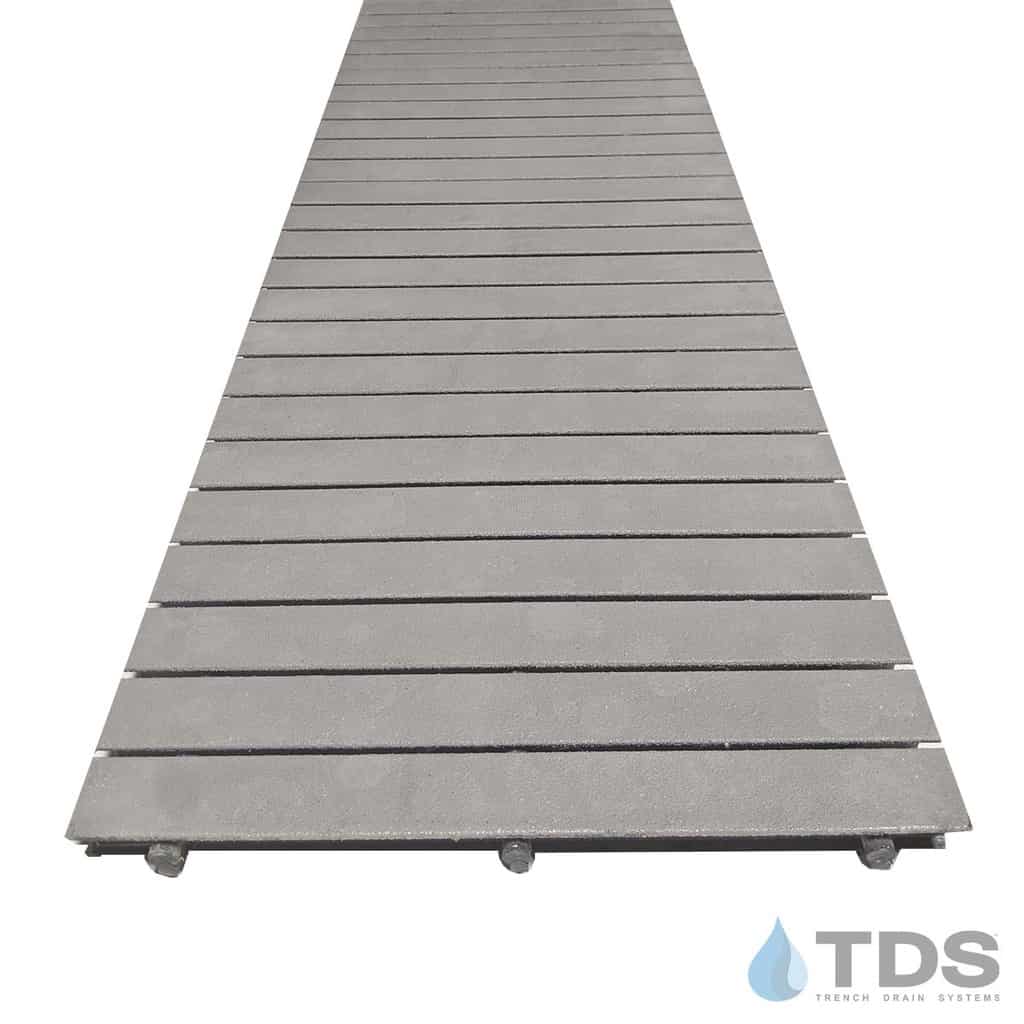

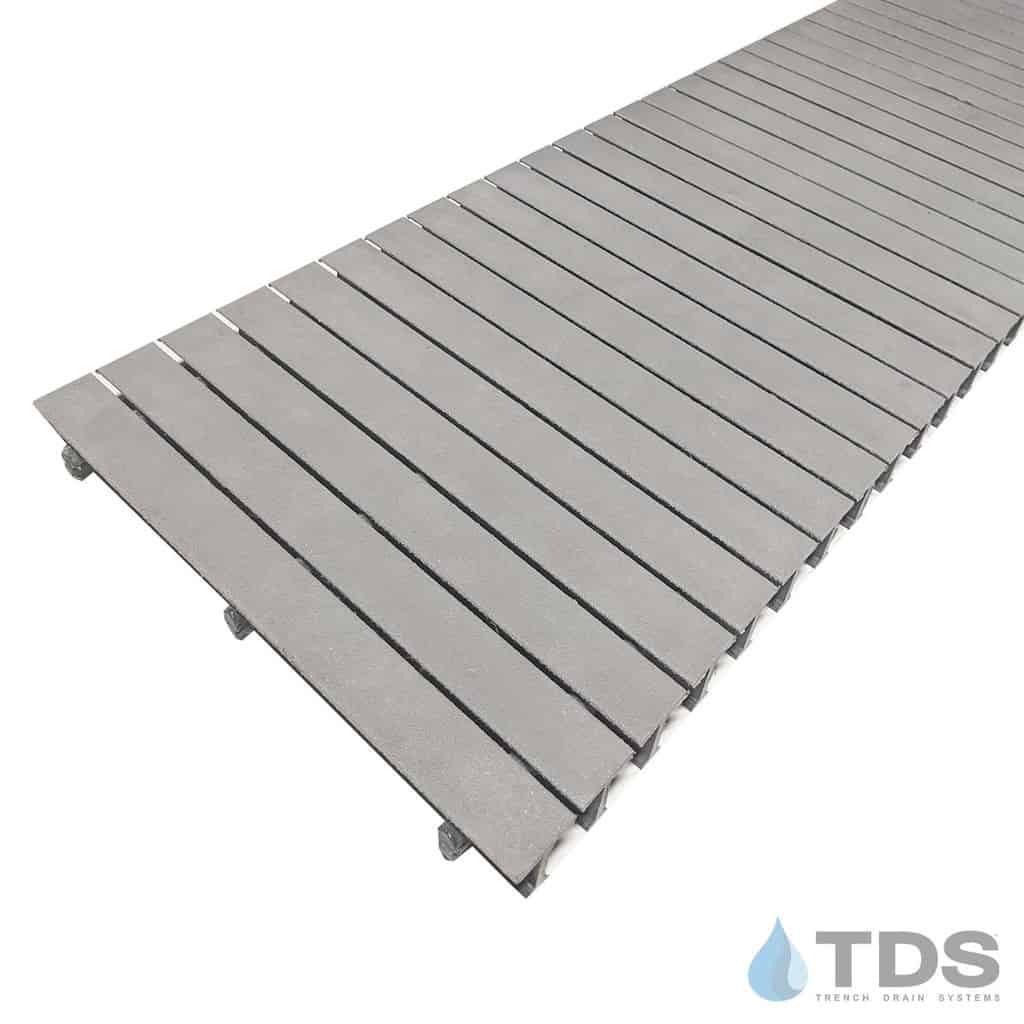

Benefits of Fiberglass T1215 T-Bar Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class A rating*
- Grate open area of 12%
- Grate openings 0.21"
- Grate depth 1.5"
- Heel proof
- ADA compliant
* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
