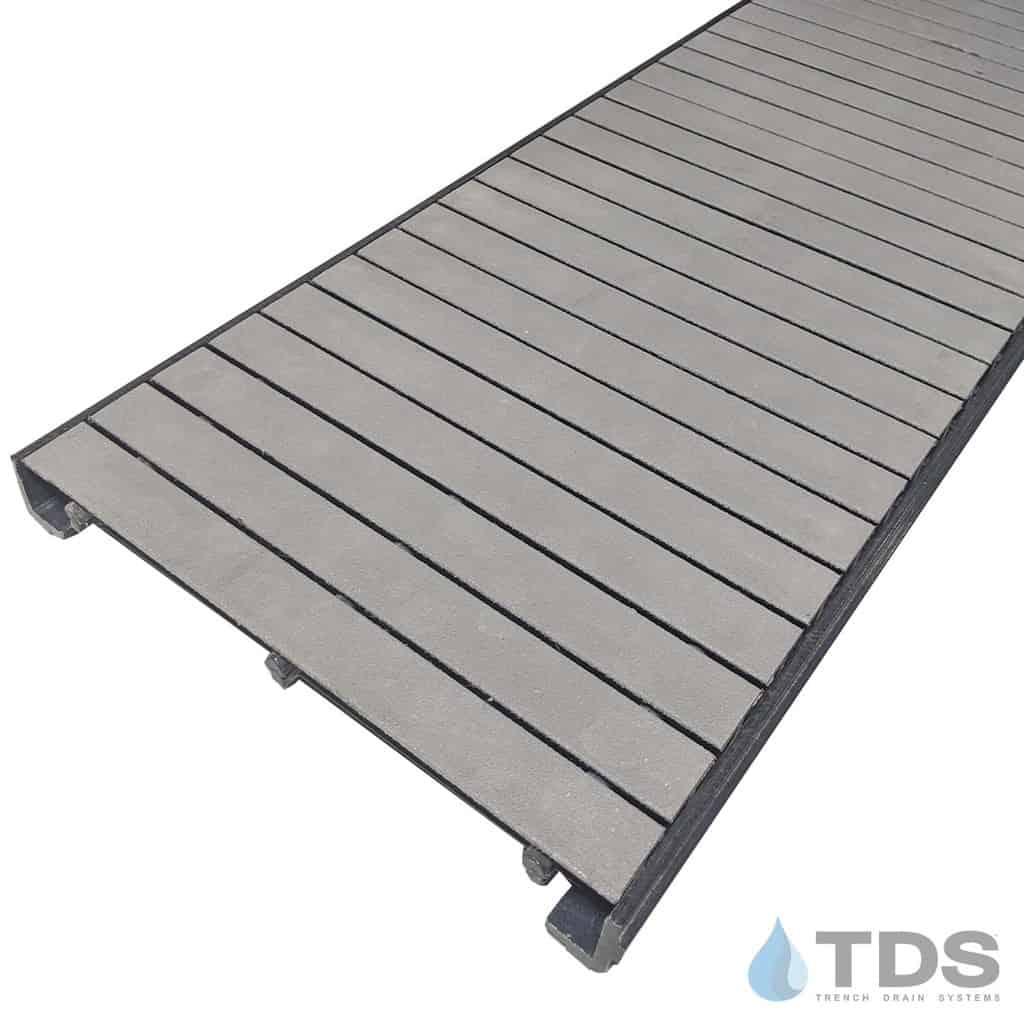

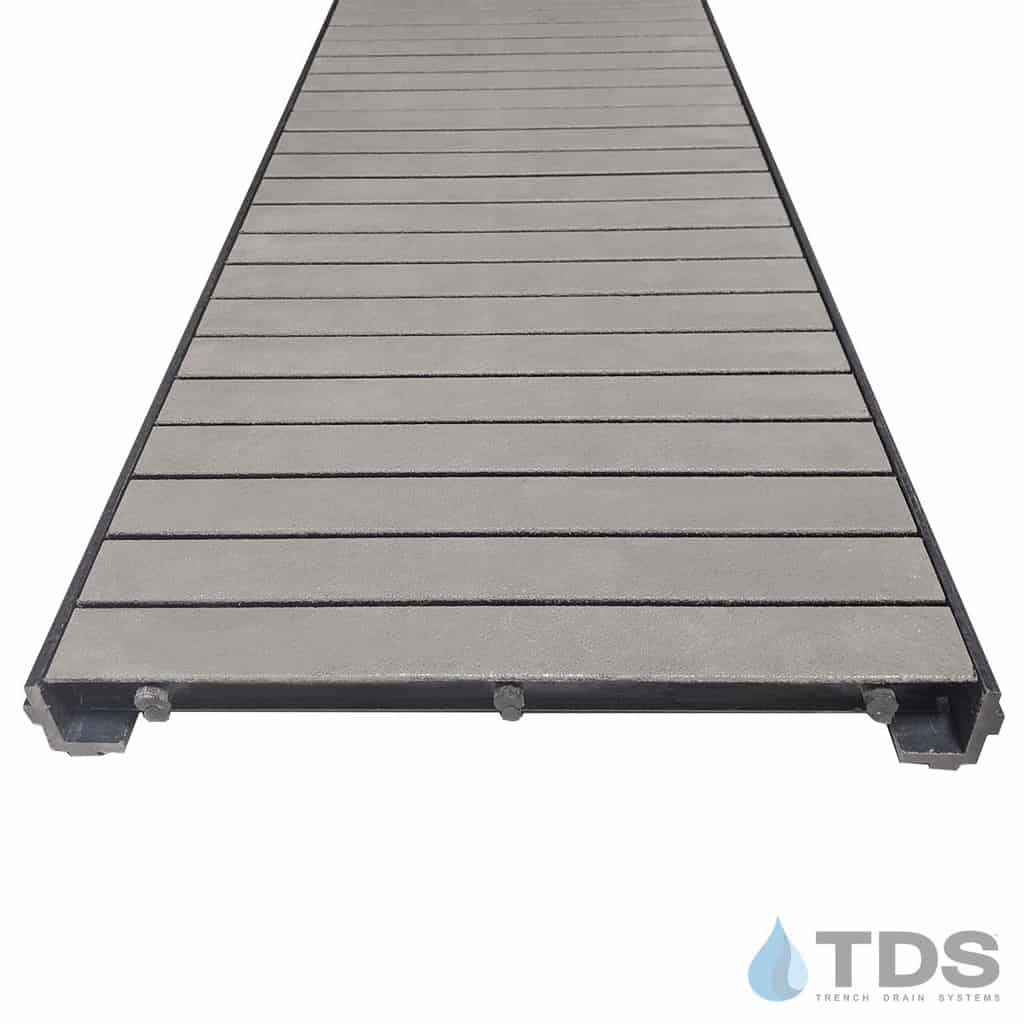

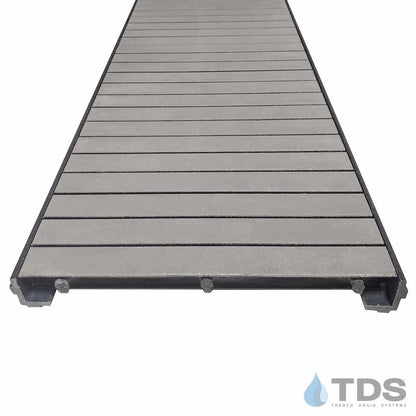

Fiberglass FRP kit with 15" wide heel-proof T-Bar grate(s) and the EZ frame create an excellent system for applications where longer support spans are required. This kit allows a custom concrete poured trench to be built using the frame shape as the kit's anchoring system, locking the frame into the concrete pour. The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. This kit, when properly installed, has a Load Class A traffic rating.
Kits can be combined to achieve longer runs. Both grates and frames can be easily cut to meet custom length requirements.

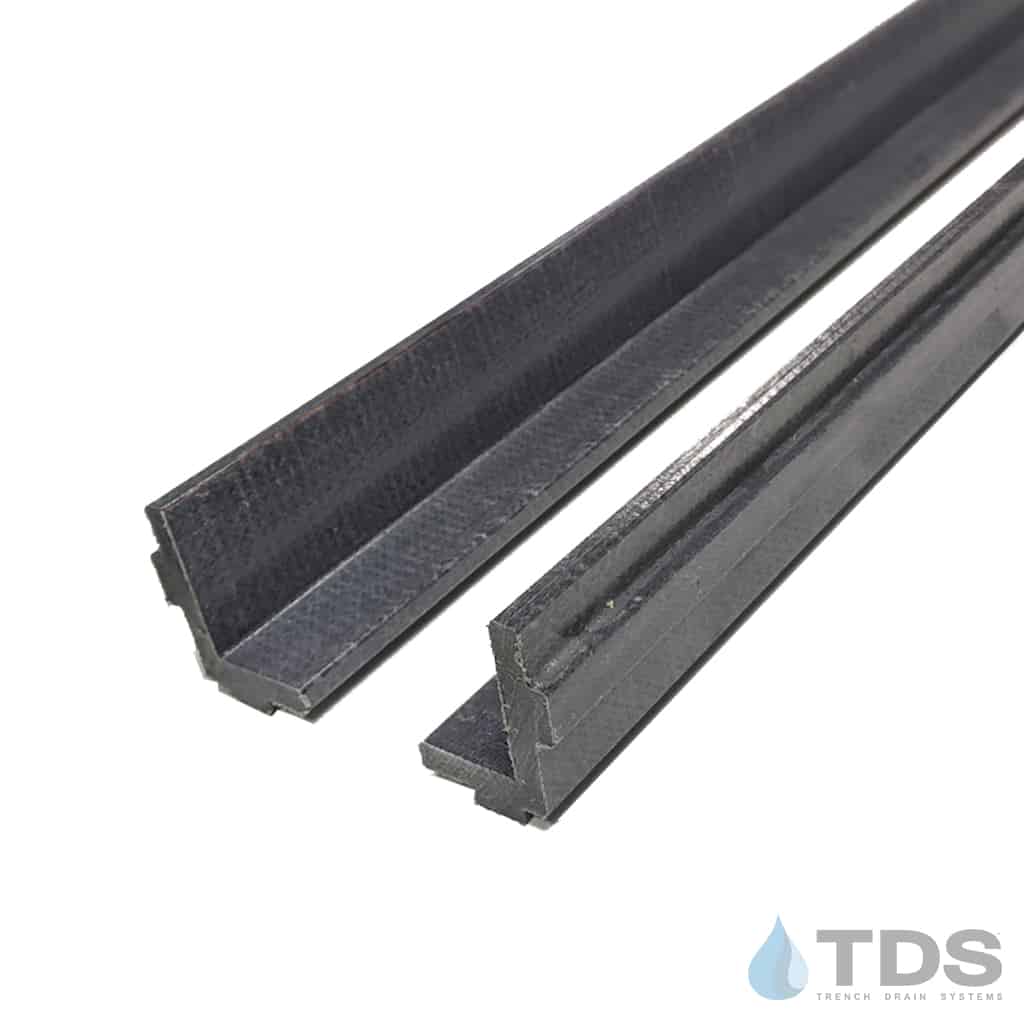

Kit includes grate(s), locking devices (4 per grate) and frame rails supplied in 4ft or 8ft sections. Multiple kits can be interconnected.

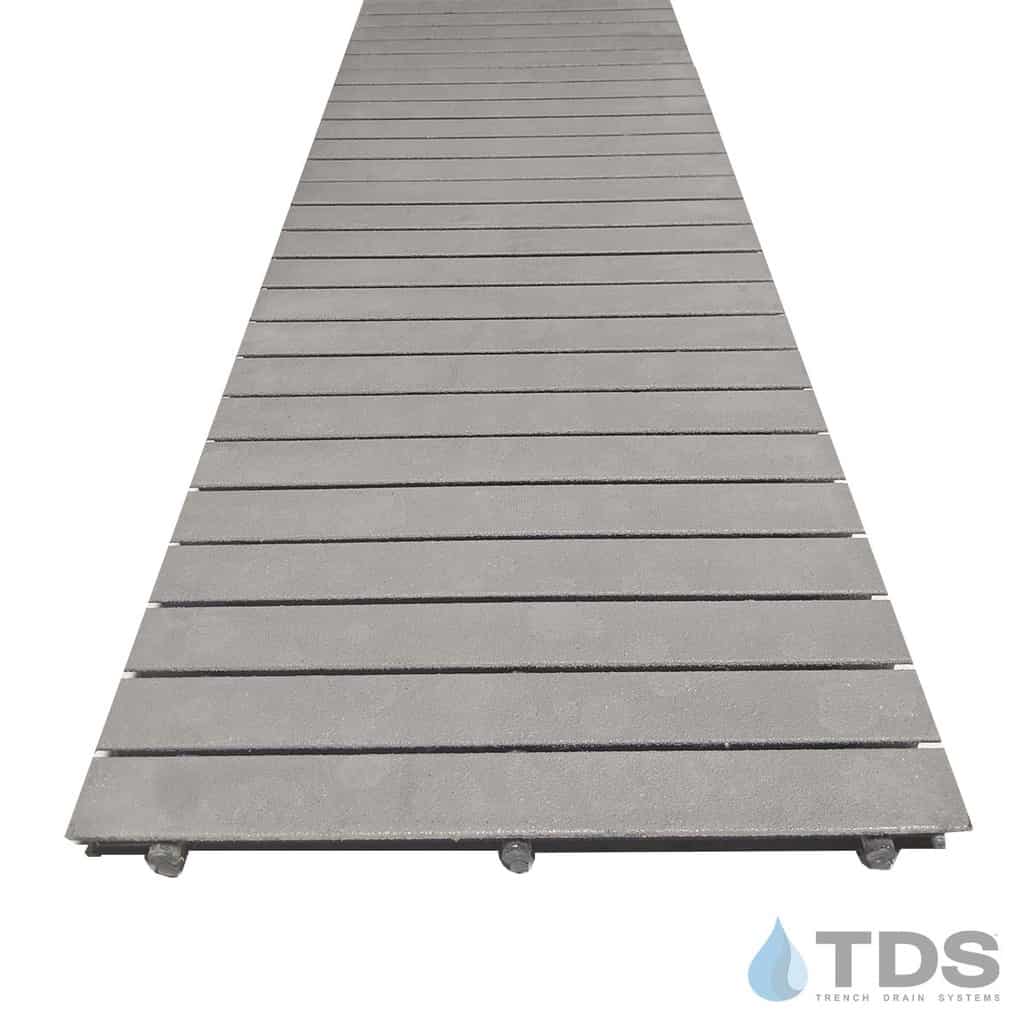

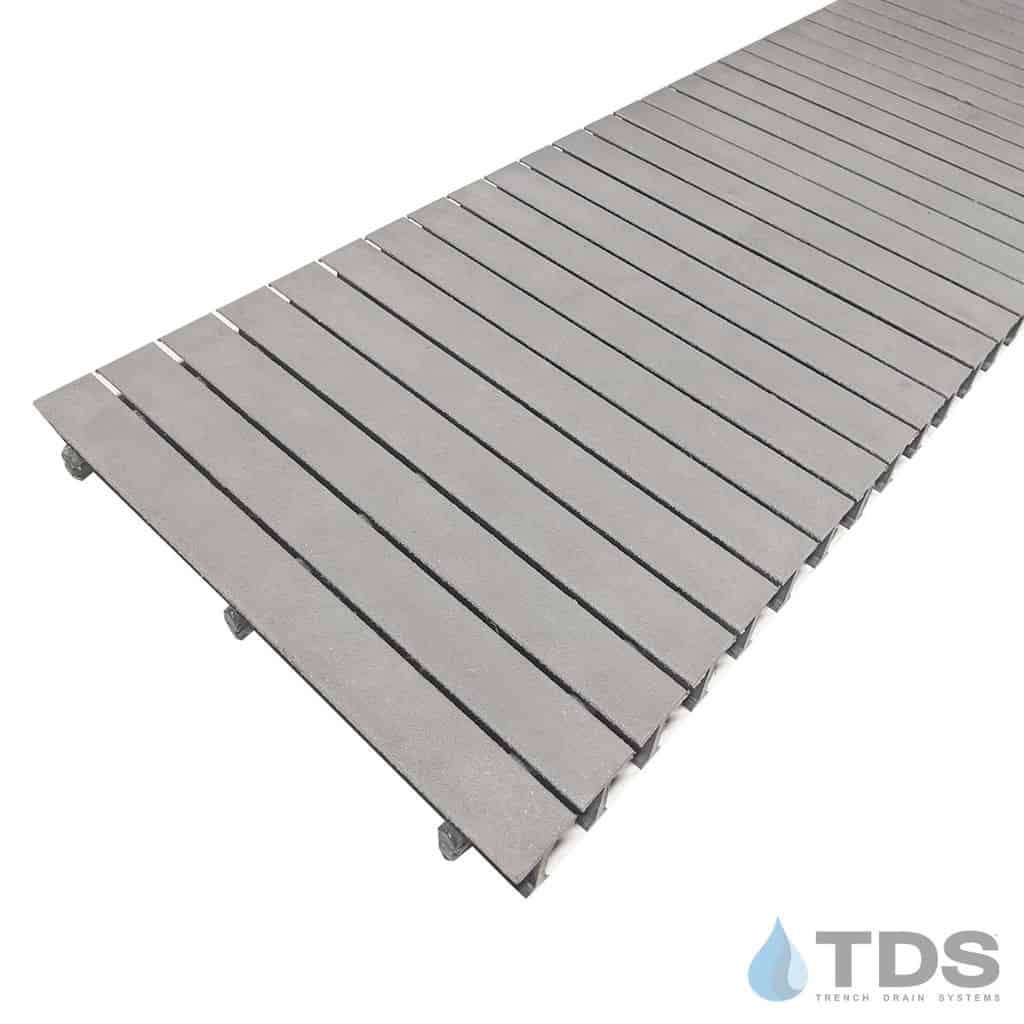

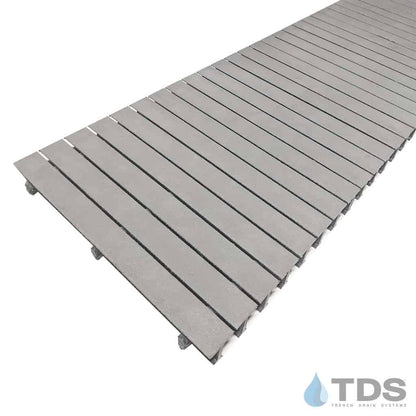

Actual Grate Dimensions: 15" Wide x 48" Long x 1.5" High
FGK-T1215-EZ Kit Specification Sheet
Fiberglass Kit Installation Guide
Benefits of Fiberglass T1215 T-Bar Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class A rating*
- Grate open area of 12%
- Grate openings 0.21"
- Grate depth 1.5"
- Heel proof
- ADA compliant
* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
