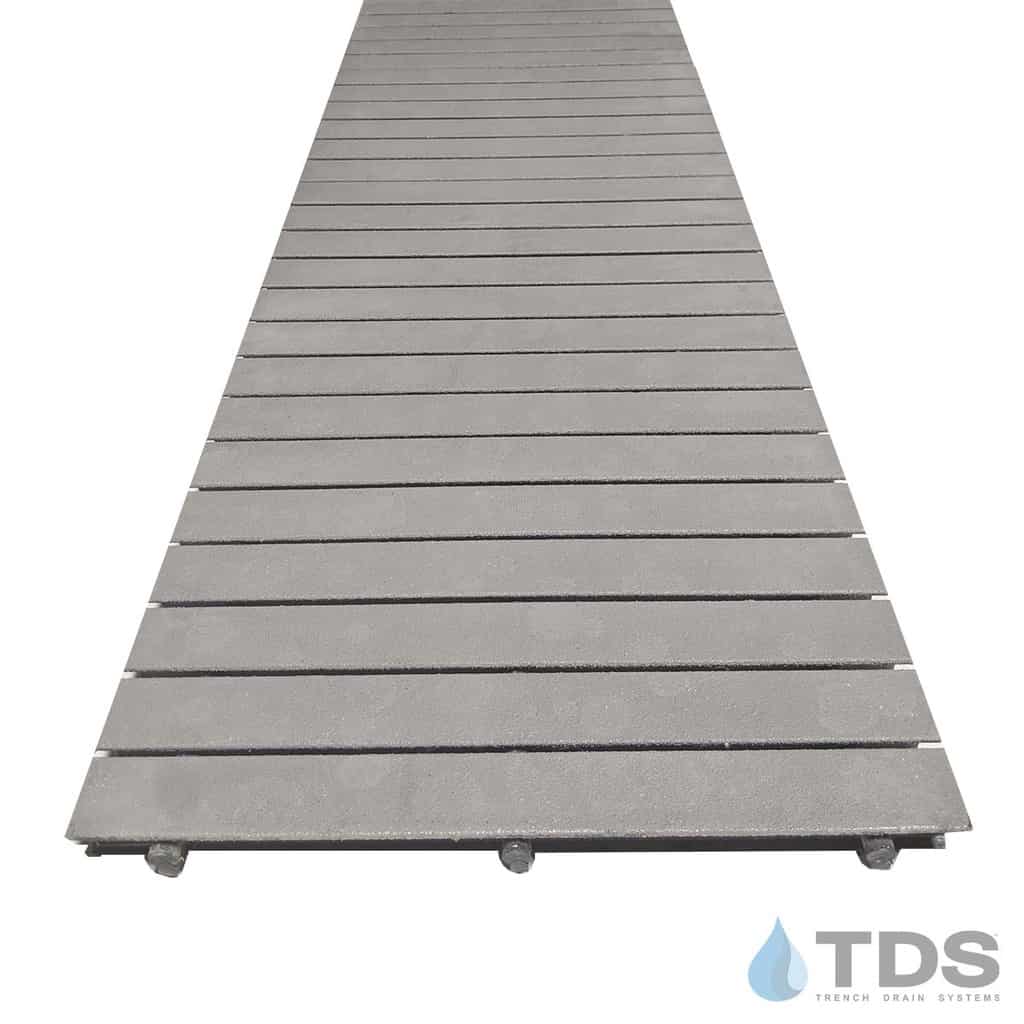

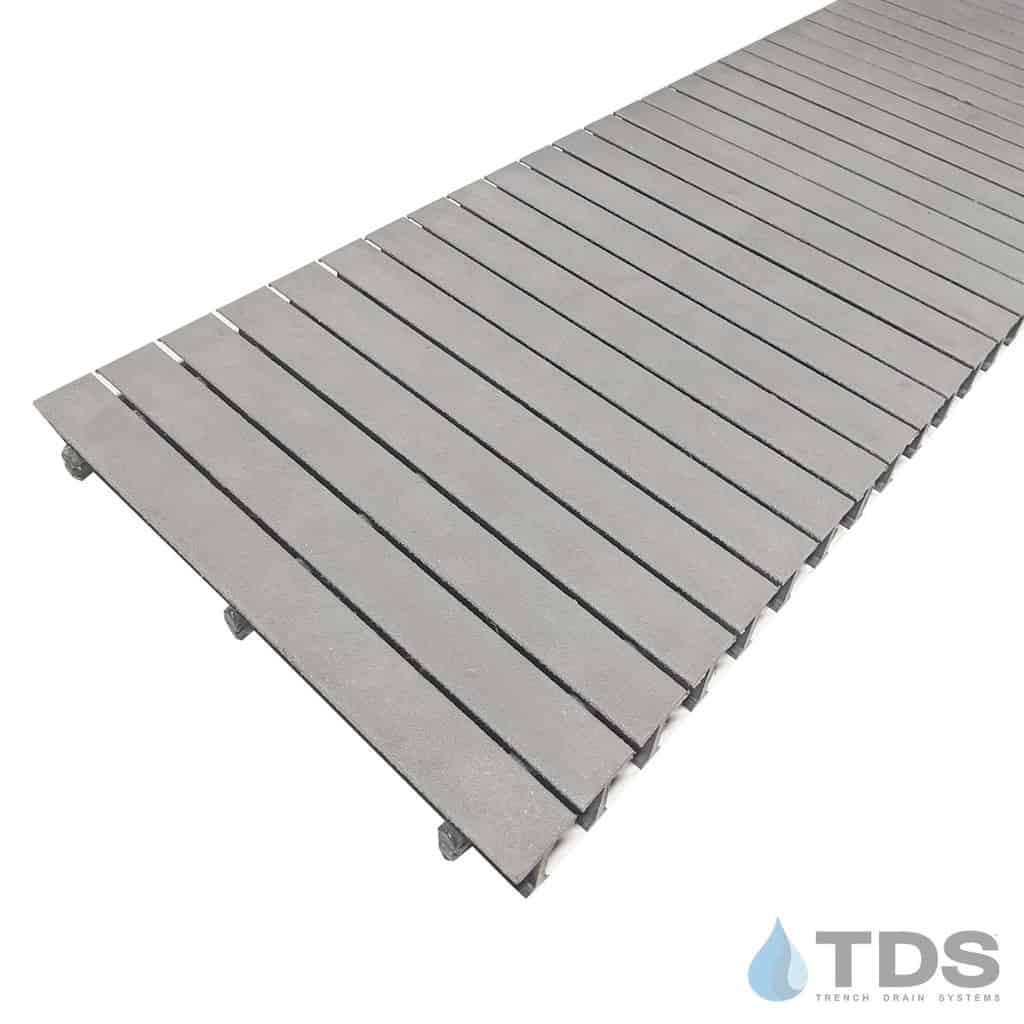

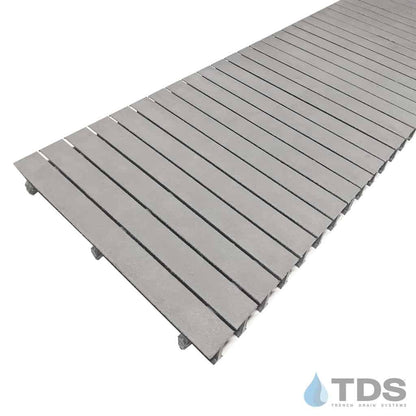

15" Fiberglass Heel Proof T-Bar Grate - Load Class A

Grate Width: 15.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - T-Bar

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: Fibergrate Kit

Grate Load Class: Class A

Grate Pattern: T-BAR

Grate Pattern Style: INDUSTRIAL

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Fibergrate - WYE and Frame - Fibergrate - EZ

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Fiberglass FRP 15" wide heel-proof T-Bar grate(s) grate is ideal for applications where longer support spans are required. This grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. This grate, when properly installed, has a Load Class A traffic rating. A special domed washer with the appropriate bolt length acts as a hold-down device. (sold separately)

Actual Grate Dimensions: 15" Wide x 48" Long x 1.5" High

Fiberglass Kit Installation Guide

Benefits of Fiberglass T1215 T-Bar Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Load class A rating*
• Grate open area of 12%
• Grate openings 0.21"
• Grate depth 1.5"
• Heel proof
• ADA compliant

Need a custom-size fiberglass grate? Request a quote today!

* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
