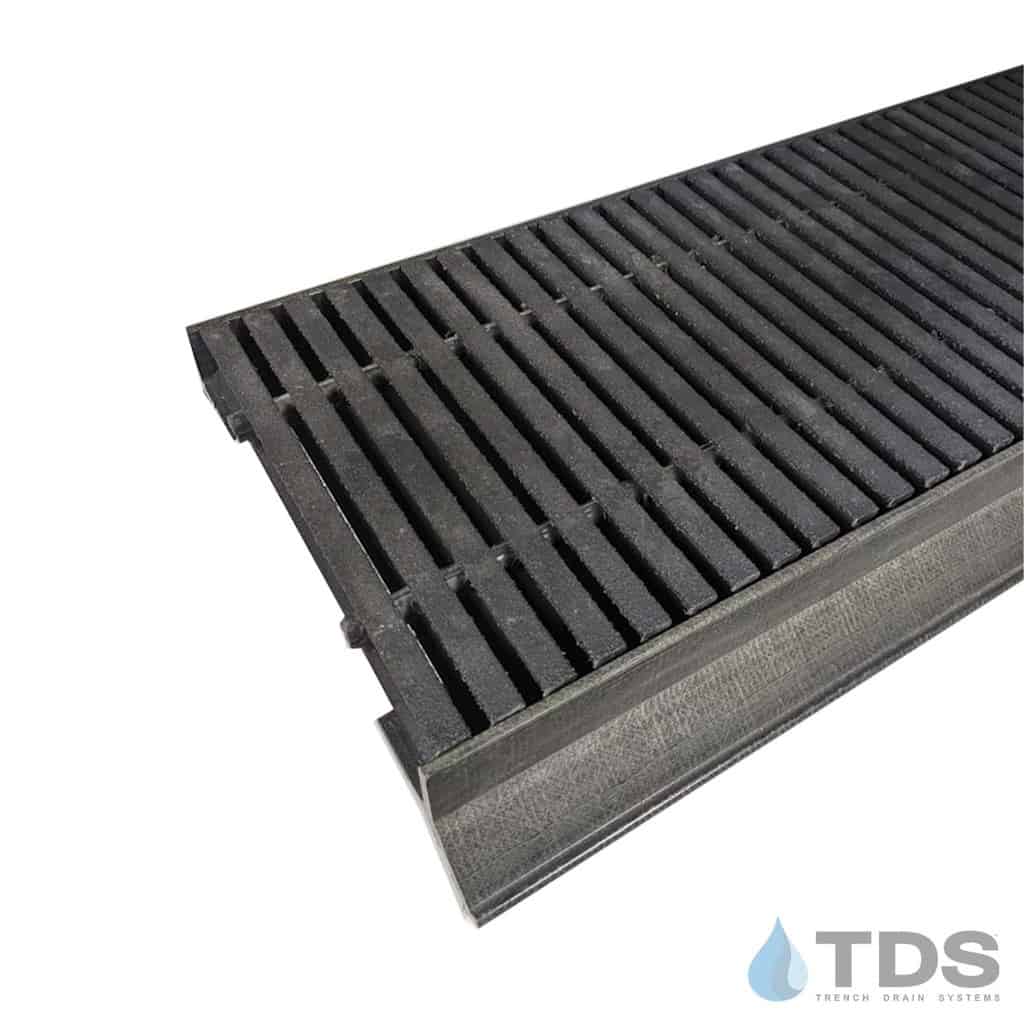

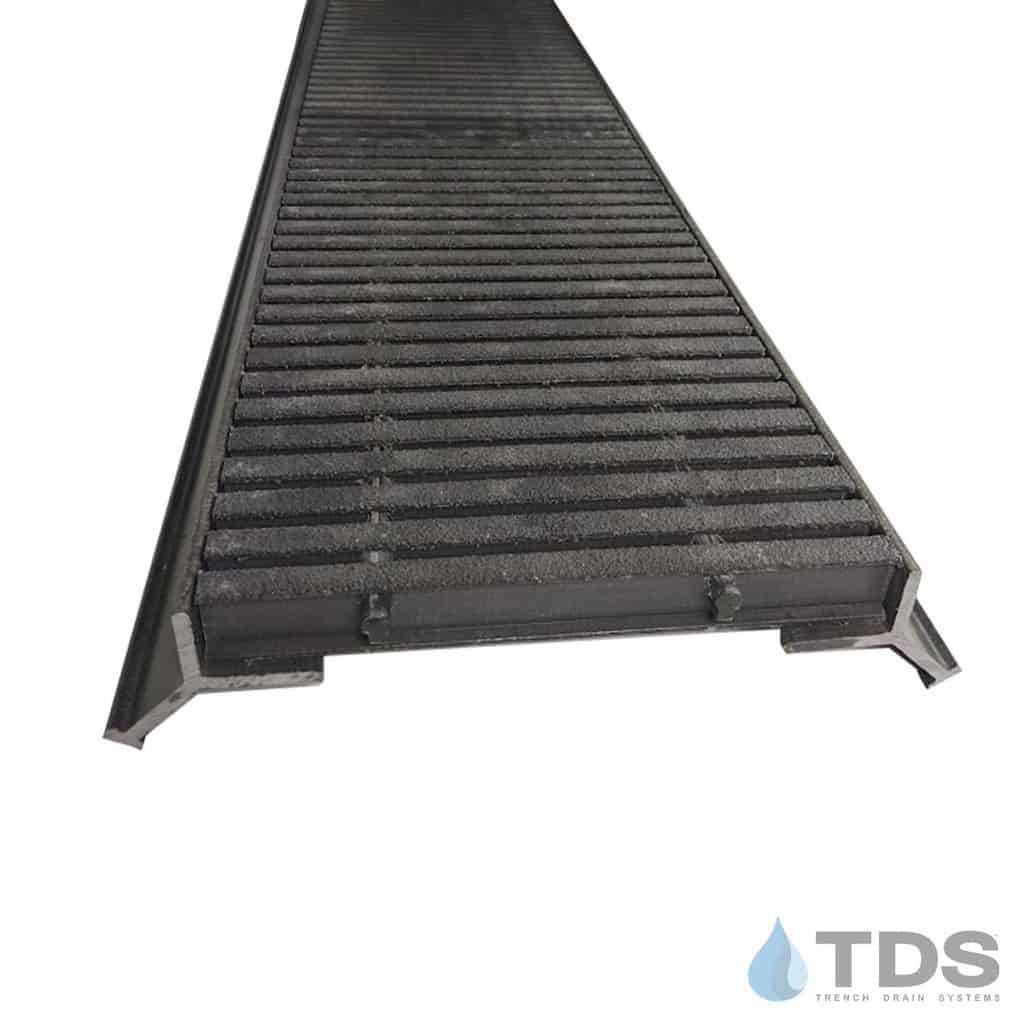

Fiberglass kit with I-Bar grate(s) and WYE frame.
Kits are supplied in 4ft and 8ft sections.
Kit includes:
Multiple kits can be interconnected

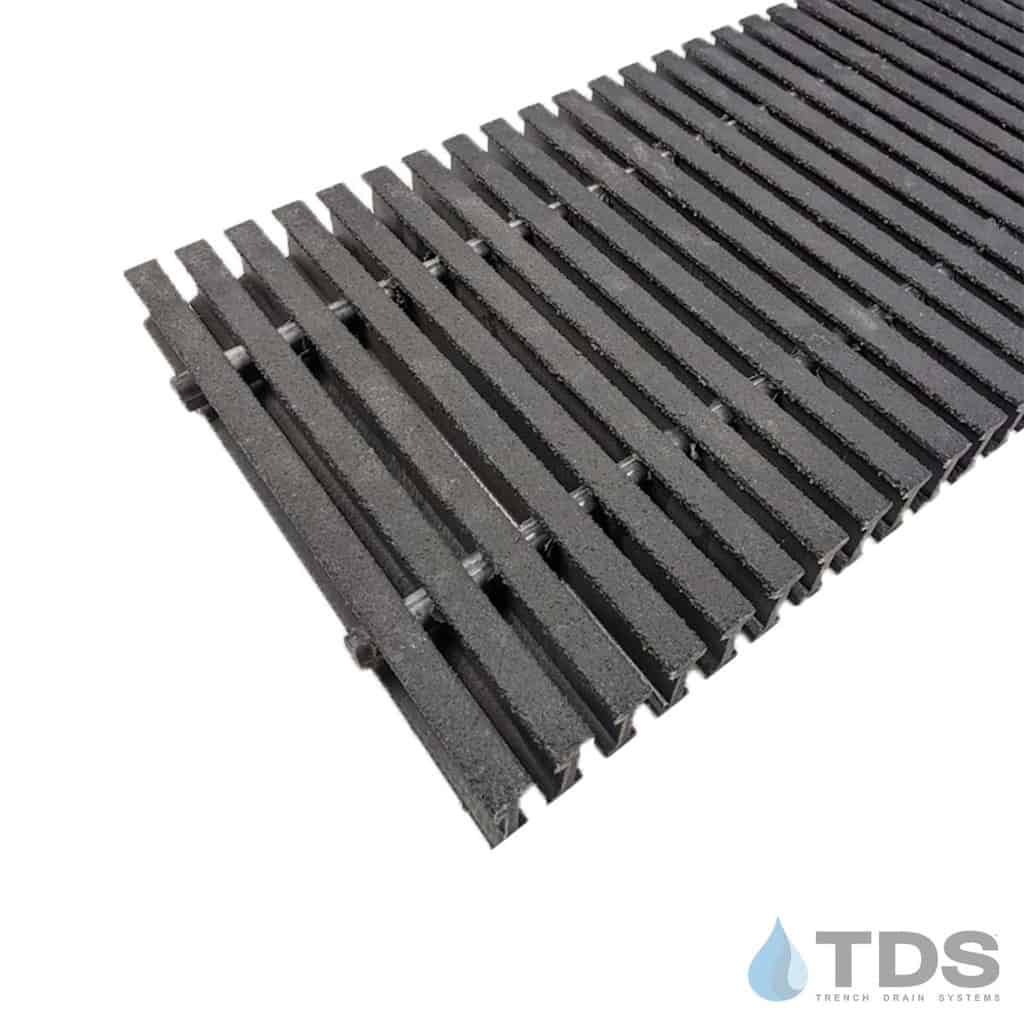

Fiberglass FRP kit with 12" wide I-Bar grate(s) and the WYE frame create an excellent system for applications where longer support spans are required such as roadways and parking areas. This kit allows a custom concrete poured trench to be built using the frame shape as the kit's anchoring system, locking the frame into the concrete pour. The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. This kit, when properly installed, has a load class C traffic rating.
Kits can be combined to achieve longer runs. Both grates and frames can be easily cut to meet custom length requirements.

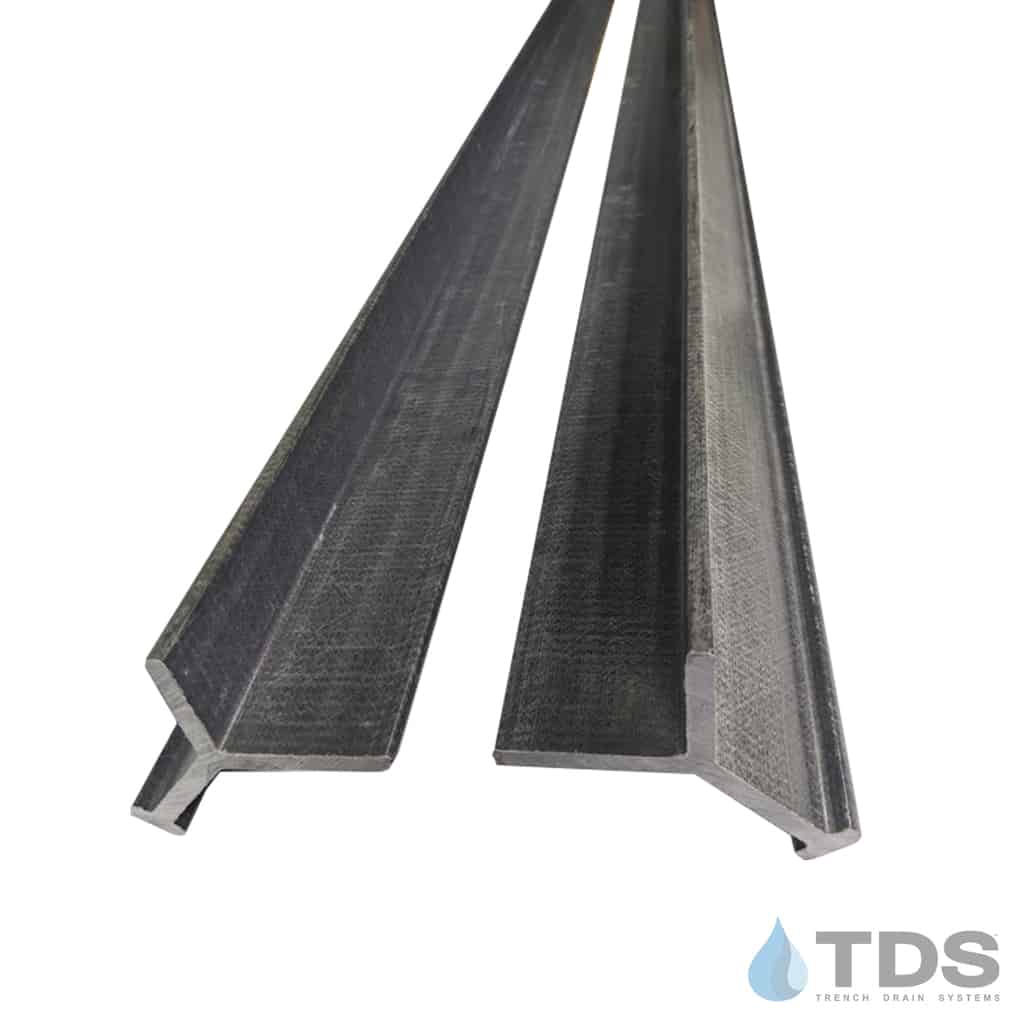

Kit includes grate(s), locking devices (4 per grate) and frame rails supplied in 4ft of 8ft sections. Actual grate width is 12 inches, not including frame rails.
FG-I4015-1248 Grate Specification Sheet
FGK-I4015-WYE Kit Specification Sheet
Fiberglass Kit Installation Guide
Benefits of Fiberglass I-Bar Grate:
* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
