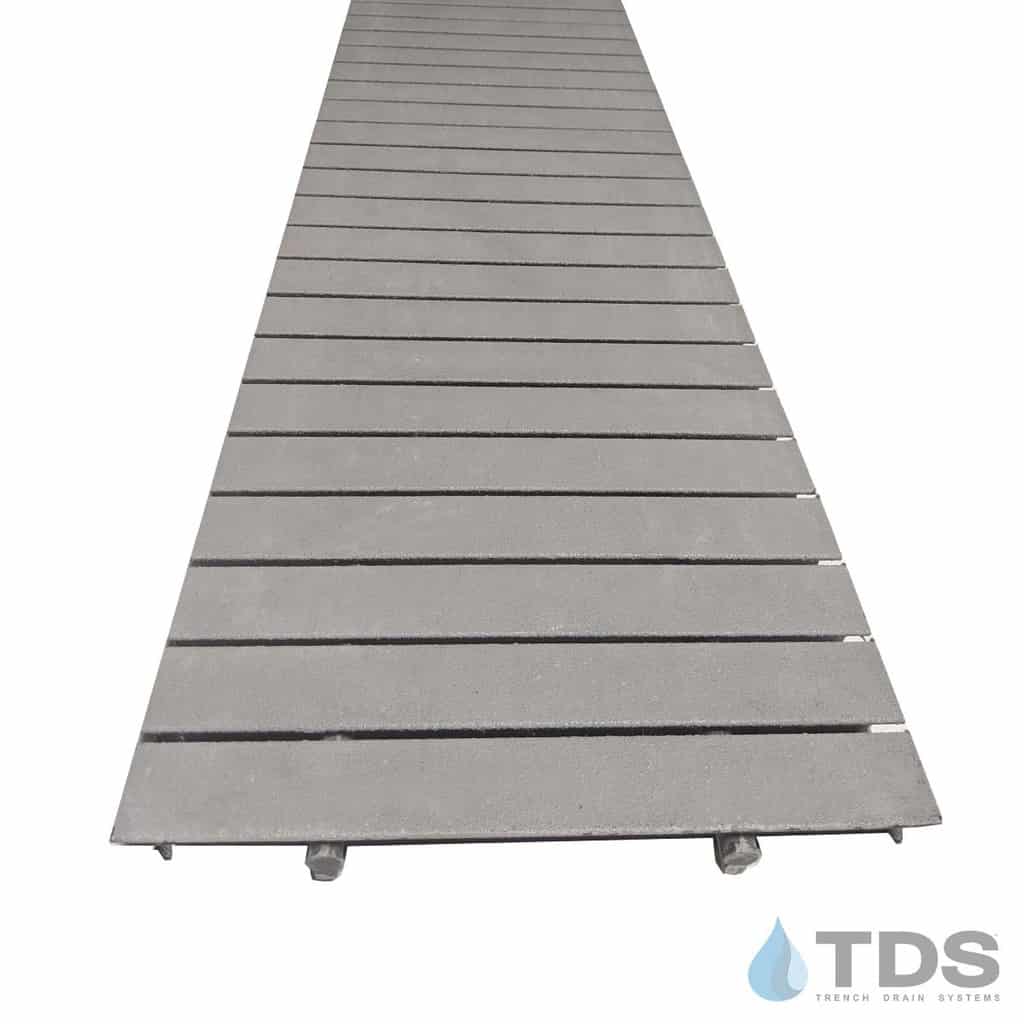

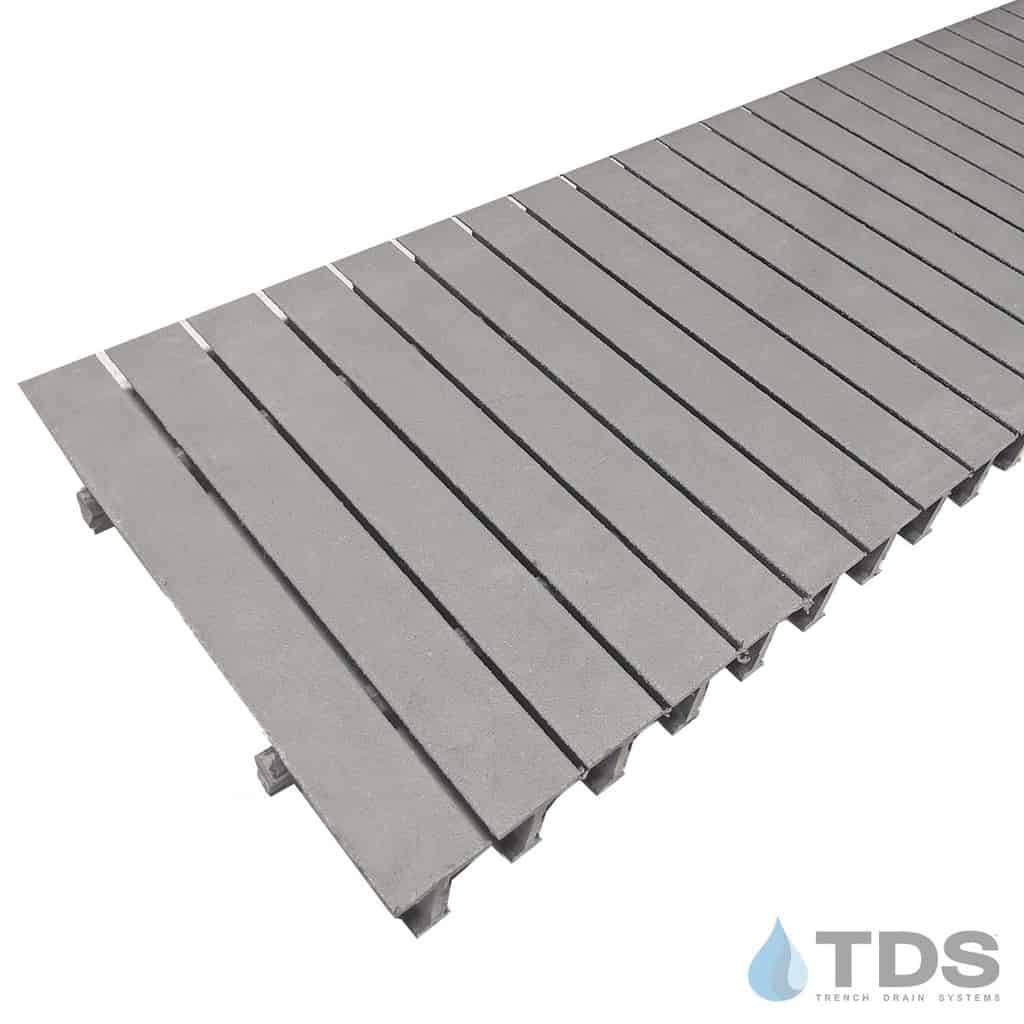

Fiberglass FRP 12" wide heel-proof T-Bar grate(s) grate is ideal for applications where longer support spans are required. This grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. This grate, when properly installed, has a Load Class C traffic rating. This grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. This grate, when properly installed, has a Load Class A traffic rating. A special domed washer with the appropriate bolt length acts as a hold-down device (sold separately).
FG-T1215-1248 Grate Dimensions: 12" Wide x 48" Long x 1.5" High
FG-734300 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)
Fiberglass Kit Installation Guide
Benefits of Fiberglass T-1215 T-Bar Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class A rating*
- Grate open area of 12%
- Grate openings 0.21"
- Grate depth 1.5"
- Heel proof
- ADA compliant
Need a custom-size fiberglass grate? Request a quote today!
* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
