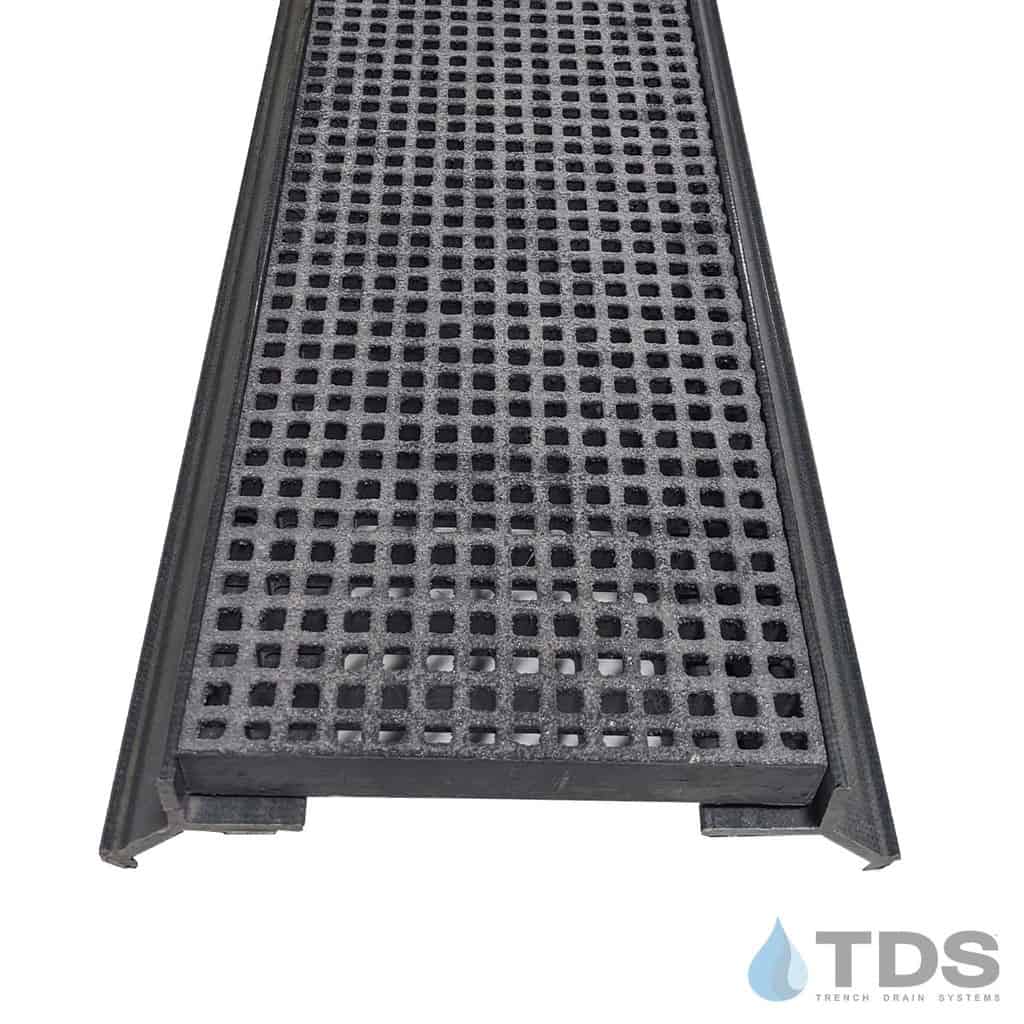

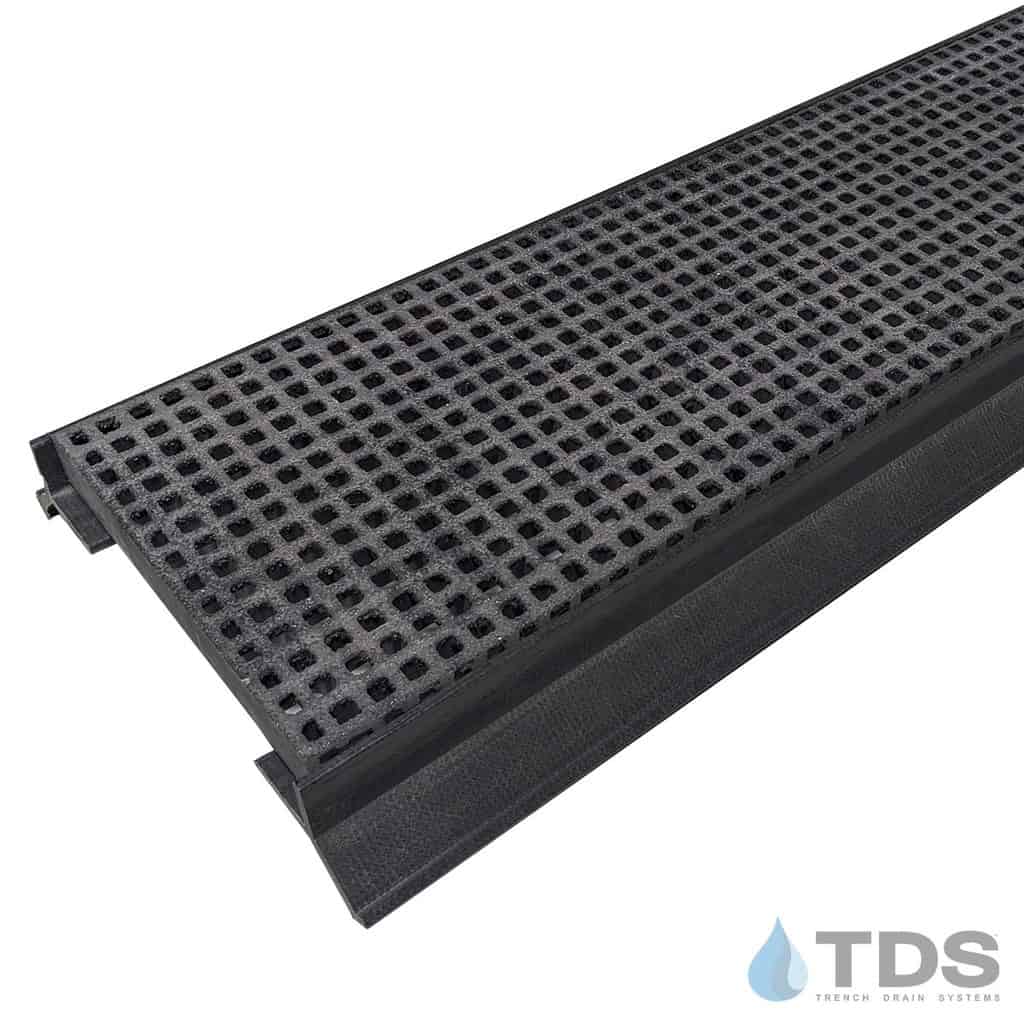

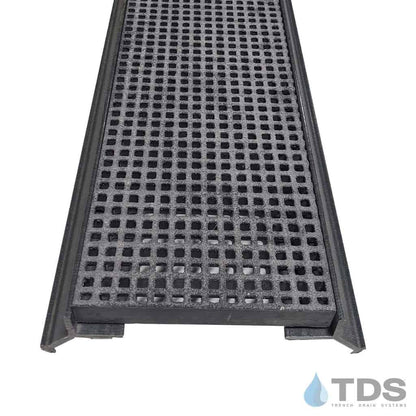

10" Fiberglass Kit w/ Micro Mesh ADA Compliant Grate and WYE Frame - Load Class A

Grate Width: 10.75"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - 0.75" Sq Micro-Mesh

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: Fibergrate Kit

Grate Load Class: Class A

Grate Pattern: MICRO-MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Form Your Own OR Site Built

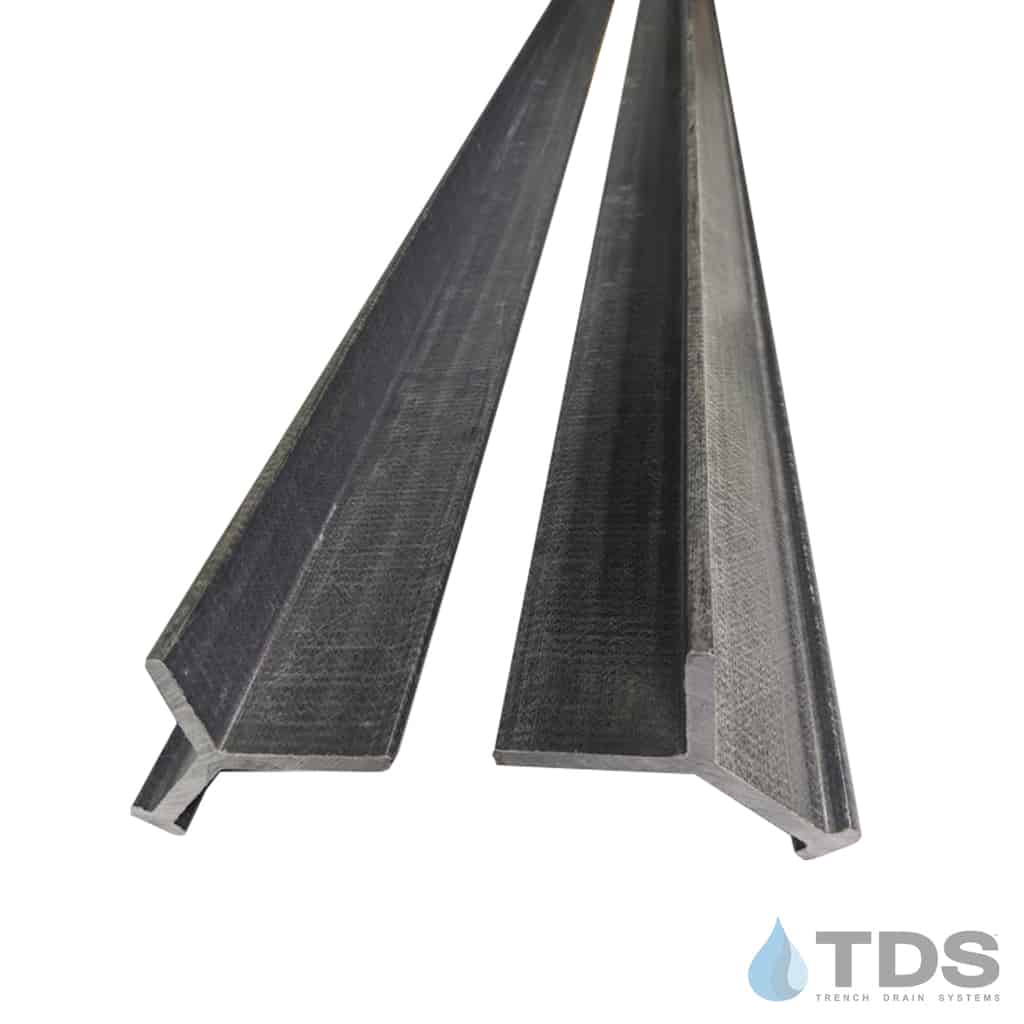

Channel Frame / Edging: Frame - Fibergrate - WYE

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Fiberglass FRP kit with 10" wide Micro-Mesh ADA compliant grate(s) and the WYE frame creates an excellent system for applications where longer support spans are required. This kit allows a custom concrete-poured trench to be built using the frame shape as the kit's anchoring system, locking the frame into the concrete pour. The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. When properly installed, this kit has a Load Class A traffic rating.

Kits can be combined to achieve longer runs. Both grates and frames can be easily cut to meet custom length requirements.

Kit includes grate(s), locking devices (4 per grate), and frame rails. Kits are supplied in 4ft and 8ft sections.

Actual grate width is 10.25 inches, not including frame rails.

Specification Sheet for FGK-MICRO-WYE

Fiberglass Kit Installation Guide

Benefits of Fiberglass Micro Mesh Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Grate open area of 44.4%
• Grate openings 0.50"
• Grate depth 1.5"
• ADA compliant
