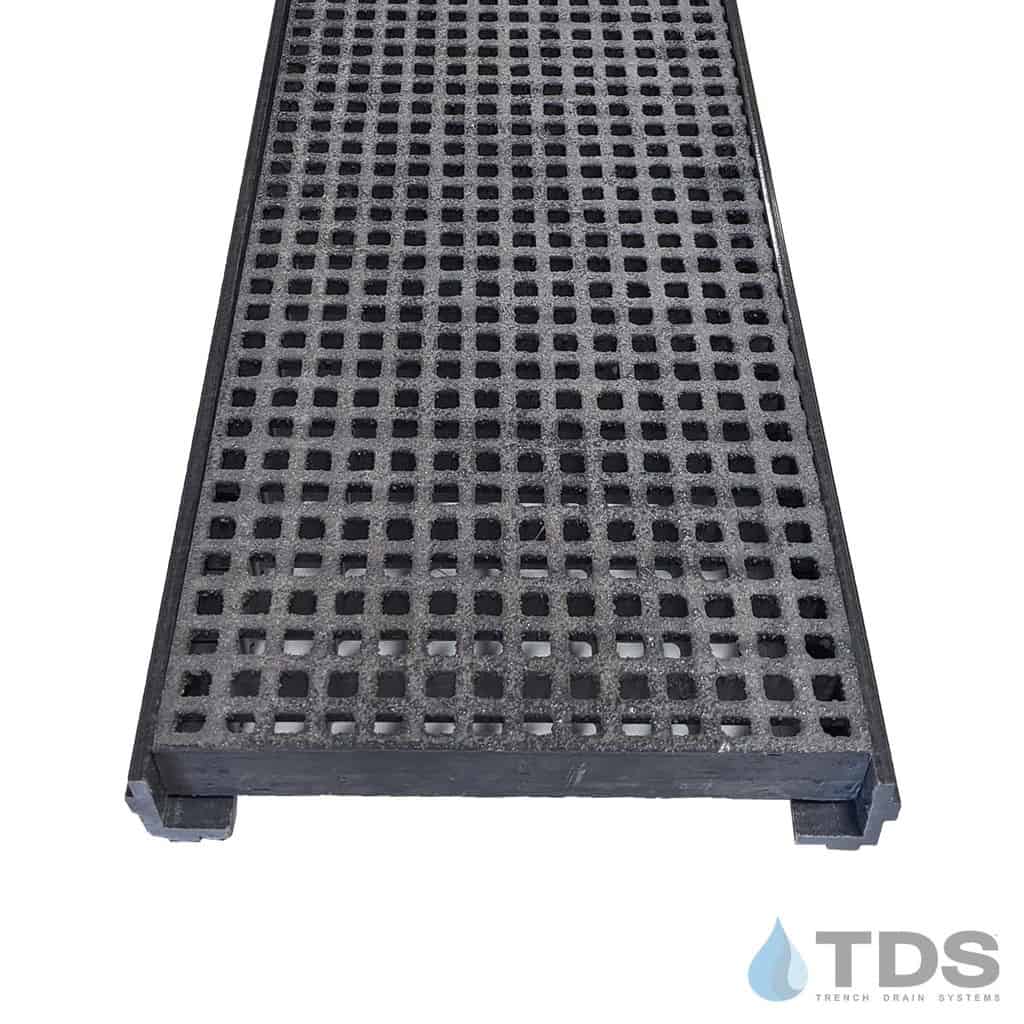

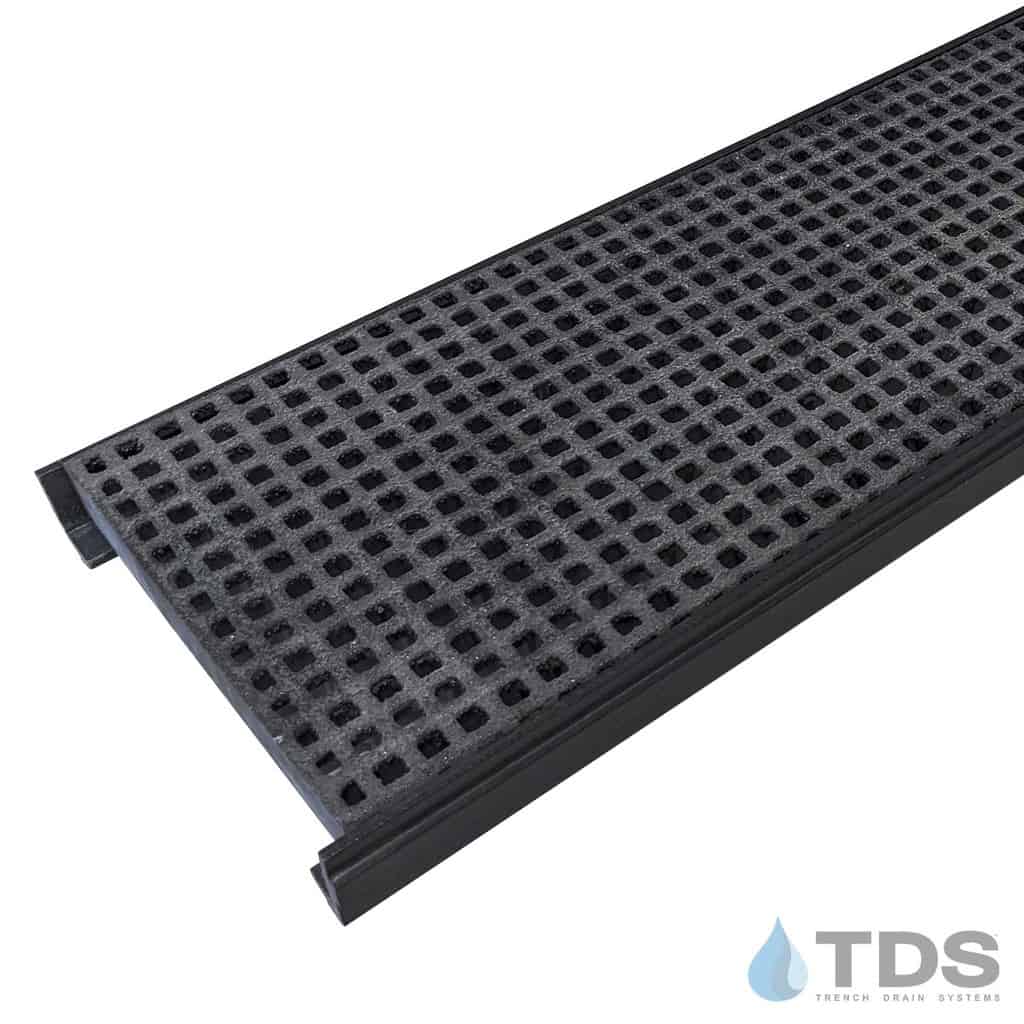

10" Fiberglass Kit w/ Micro Mesh ADA Compliant Grate and EZ Frame - Load Class C

Fiberglass kit with Micro Mesh grate(s) and EZ frame.
Kits are supplied in 4ft and 8ft sections.

Kit includes:

• Grate(s)
• Locking devices (4 per grate)

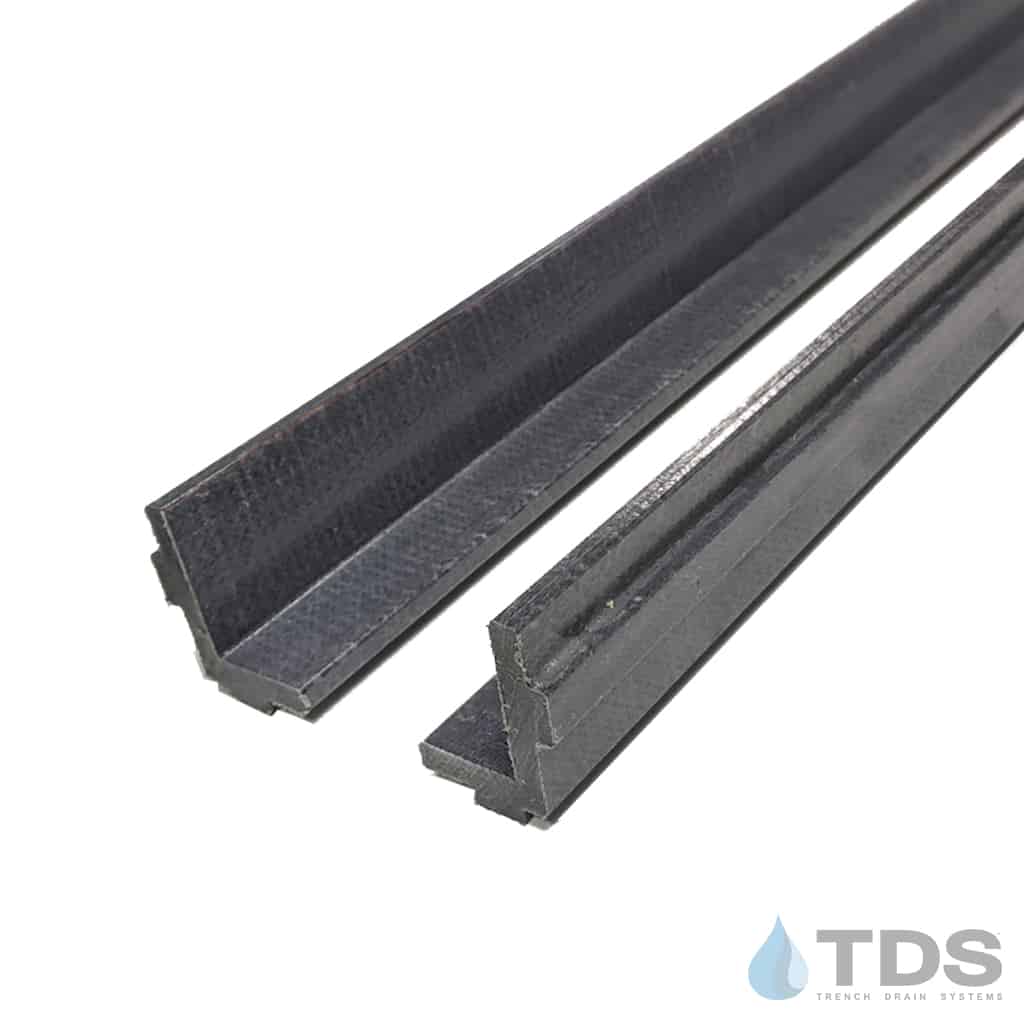

• Frame rails (2 per section)

Multiple kits can be interconnected

Fiberglass FRP kit with 10" wide Micro Mesh grate(s) and the EZ frame create an excellent system for applications where longer support spans are required. This kit allows a custom concrete poured trench to be built using the frame shape as the kit's anchoring system, locking the frame into the concrete pour. The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. When properly installed, this kit has a Load Class C traffic rating.

Kits can be combined to achieve longer runs. Both grates and frames can be easily cut to meet custom length requirements.

Kit includes grate(s), locking devices (4 per grate) and frame rails. Kits are supplied in 4ft and 8ft sections.

Actual grate width is 10.75 inches, not including frame rails.

FG-MICRO-1048 Grate Specification Sheet

FGK-MICRO-EZ Kit Specification Sheet

Fiberglass Kit Installation Guide

Benefits of Fiberglass Mesh Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Load class C rating*
• Grate open area of
• Grate open area of 44.4%
• Grate openings 0.50"
• Grate depth 1.5"
• ADA compliant
