Grate Material / Color / Finish: Ductile/Cast Iron - Raw
Manufacturer: Zurn
System: Z806
Grate Load Class: Class C
Grate Pattern: SLOTTED
Grate Pattern Style: SLOTTED
Channel Material:
Channel Frame / Edging:
Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Transportation, and Decorative
DESCRIPTION

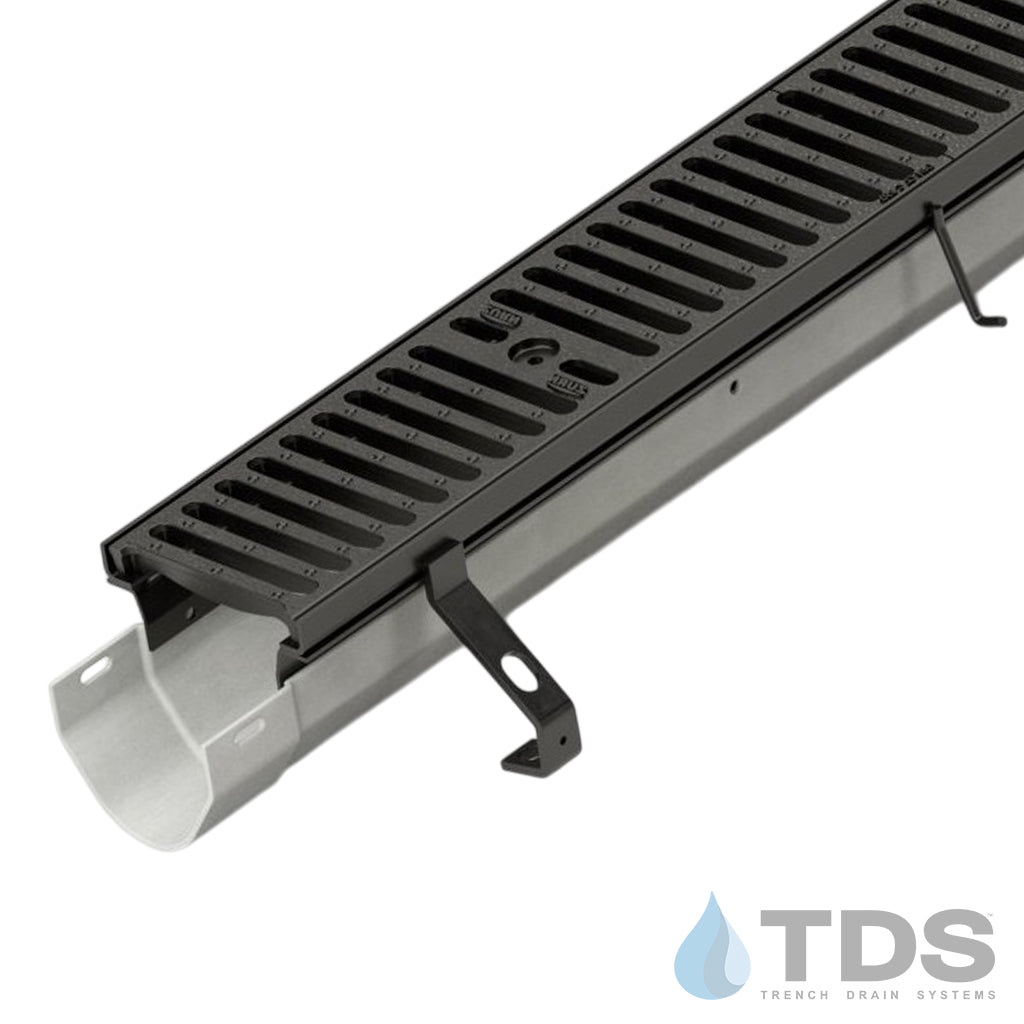

The Zurn ZF806 Drain System is a 6-inch-wide, high-capacity trench drain designed for efficient surface water management in commercial and industrial applications. The system features lightweight FRP (fiber-reinforced polymer) modular channels with chemical resistance, a Z-frame anchoring system, smooth self-cleaning bottoms, and a built-in 0.75% slope or neutral 0% slope option for installation flexibility.
The P6-DGC ductile iron slotted grate is rated Class C per DIN EN 1433 and provides 28.1 sq. in. of open drainage area per linear foot. A heavy-duty carbon steel frame with integral grate lockdowns, concrete anchors, and rebar attachment brackets helps provide a secure, durable installation. Channels and frames are manufactured in the USA.
Choose from end or bottom outlet, as well as standard or vandal-proof locking devices.
NOTE: Expedited deliveries are not available for this product

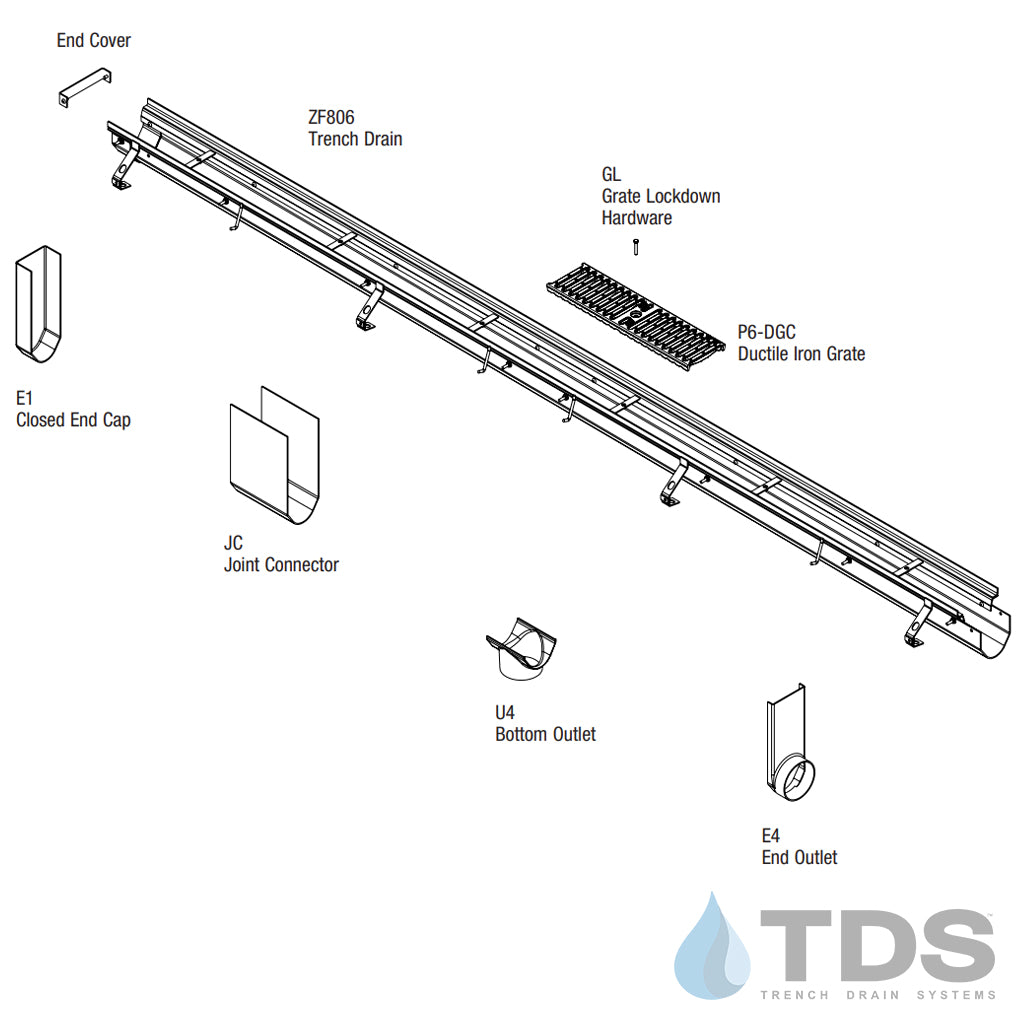

Each Kit Includes:
Channels
Grates
Locking/Hold-down devices (Standard or Vandalproof)
