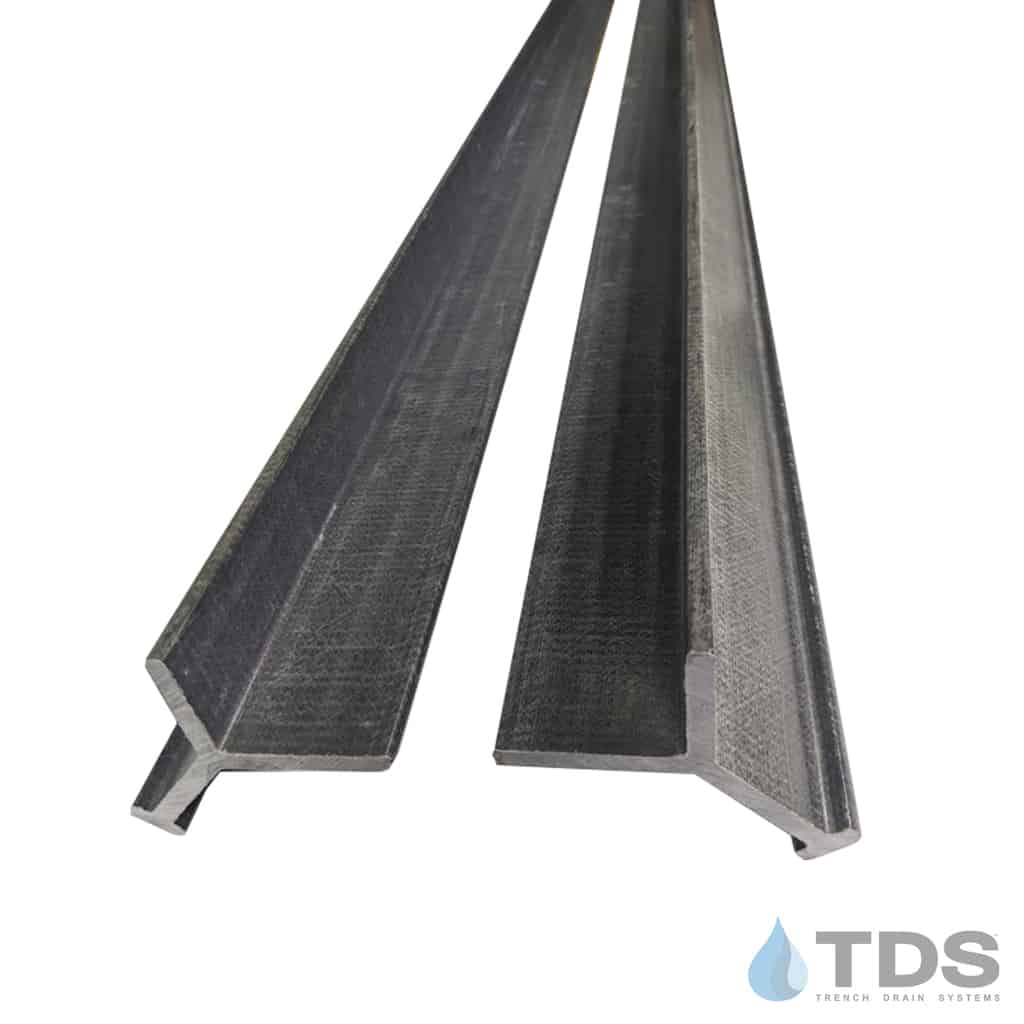

The WYE fiberglass rails provide an ideal design option for poured trench drain systems by providing a preformed ledge for grates to sit on. This fiberglass frame has the tried and true, traditional anchoring system that uses the “Y” shape to lock the frames into your concrete pour. It offers the option of 1.5" or 2.0" grate height, depending on the direction the WYE frame is installed. (Sold as a set of 2)
Fiberglass Rail and Grate Installation Guide
Fiberglass Rail Specification Sheets
A variety of grating options are available that have non-slip grit for traction, ranging from coarse for footwear to fine grit for bare feet.
Purchase grates separately, or as a frame and grate kit.
Frame bars are sold in 4ft and 8ft sections. (Dependent upon the size of the kit(s) ordered)
The price shown is for a set of 2 frame bars.
Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
