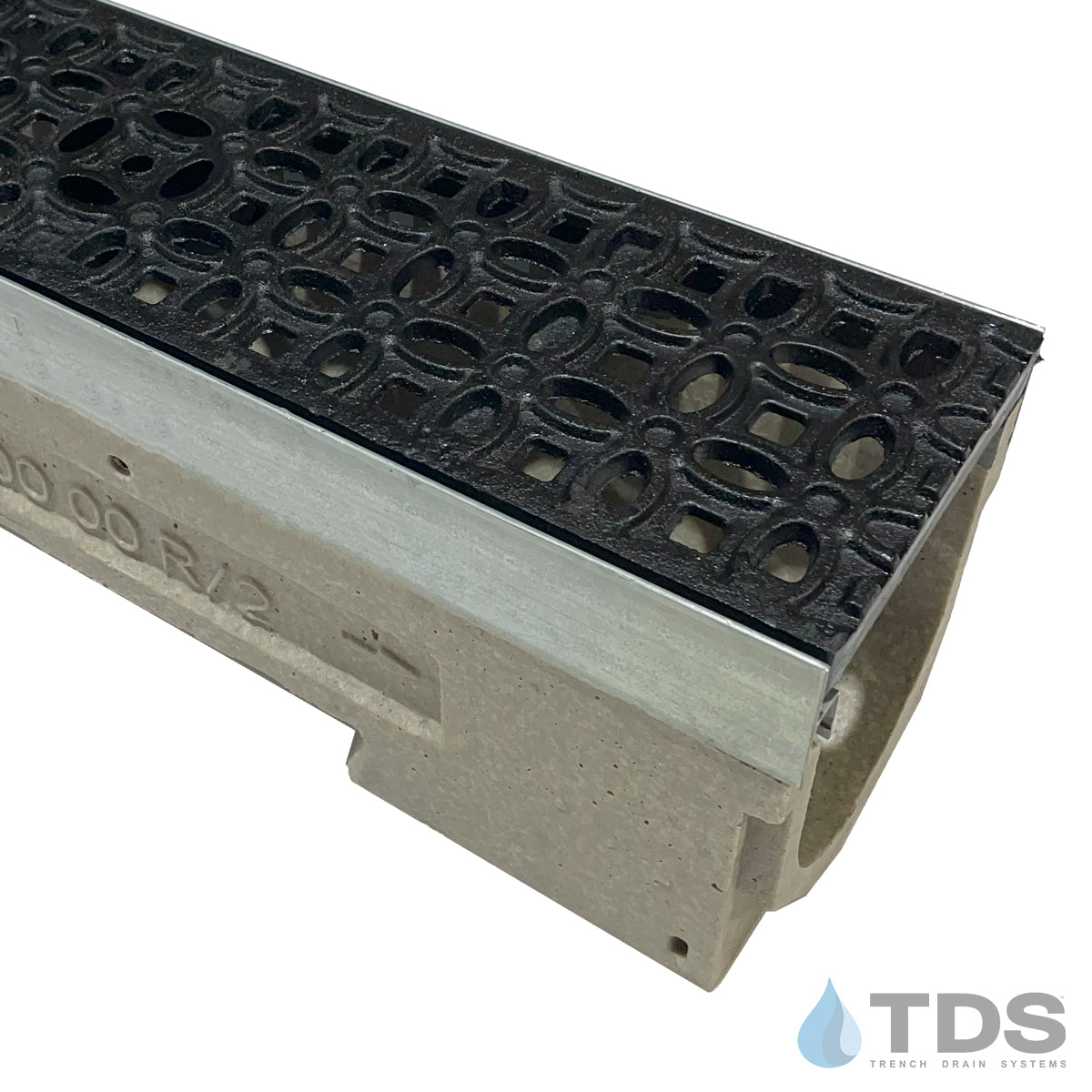

ULMA U100KX Drain Channel kit w/ Bronze Age™ Luna Grate-RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100KX

Grate Load Class: Class C

Grate Pattern: LUNARIA

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

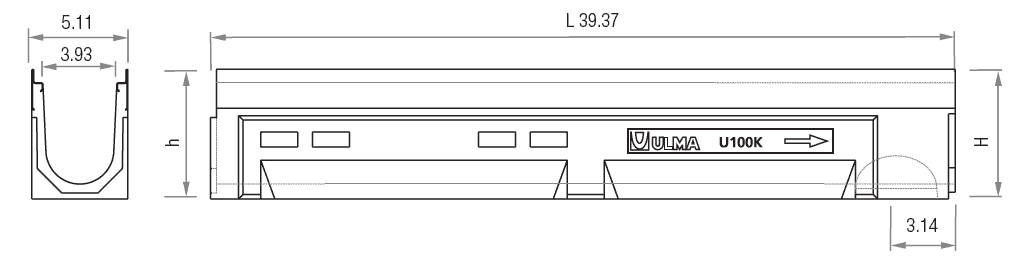

This pre-sloped polymer concrete trench drain kit uses the ULMA U100KX channel with integral stainless steel edging and TDS-exclusive Luna pattern decorative grating. The channel has an external width of 130 mm (5.11") and an internal width of 100 mm (3.93"). Channels are 1 meter (approximately 3.3') in length and have a 0.5% slope.

Specification Sheet for BA-LUNA-0520

Each Kit Includes :

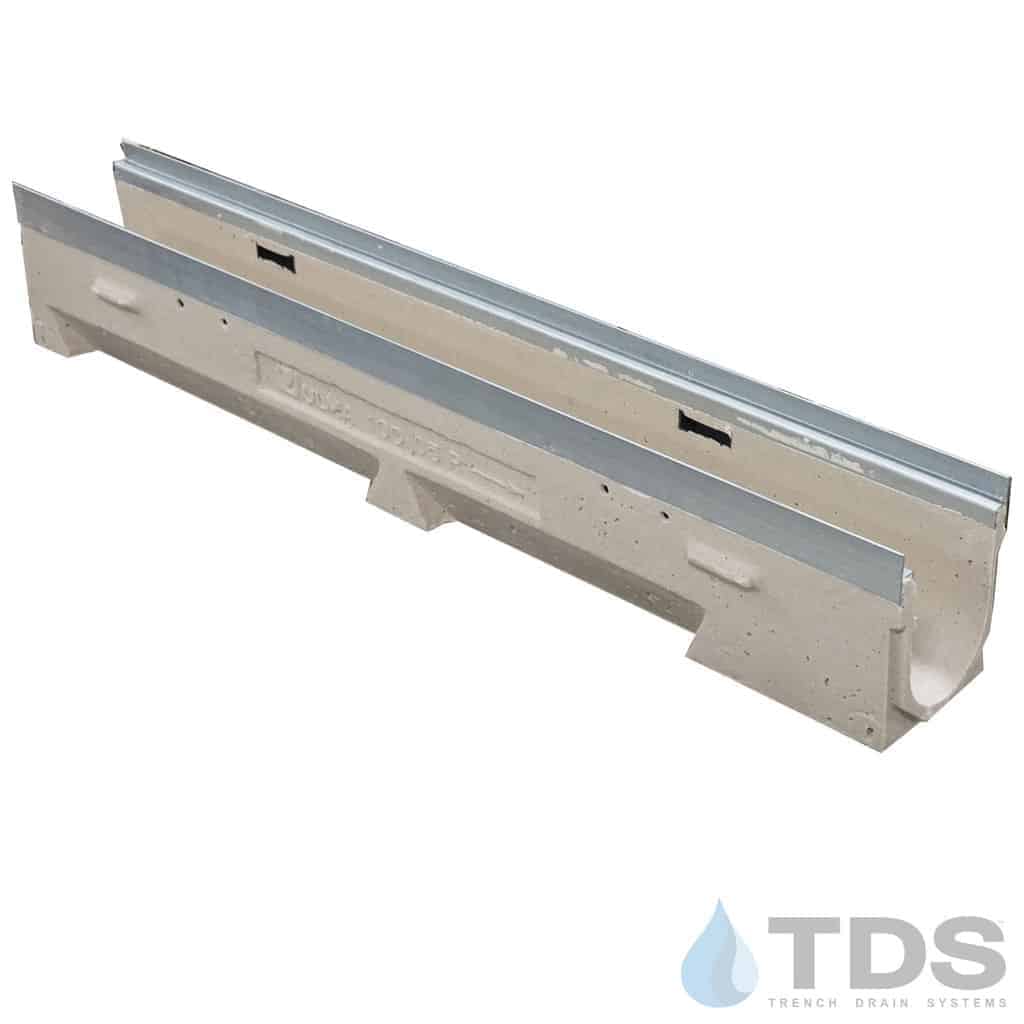

• Channel(s)
• Grate(s) (BA-LUNA-0520)
• Installation chair(s)
• Locking device(s)

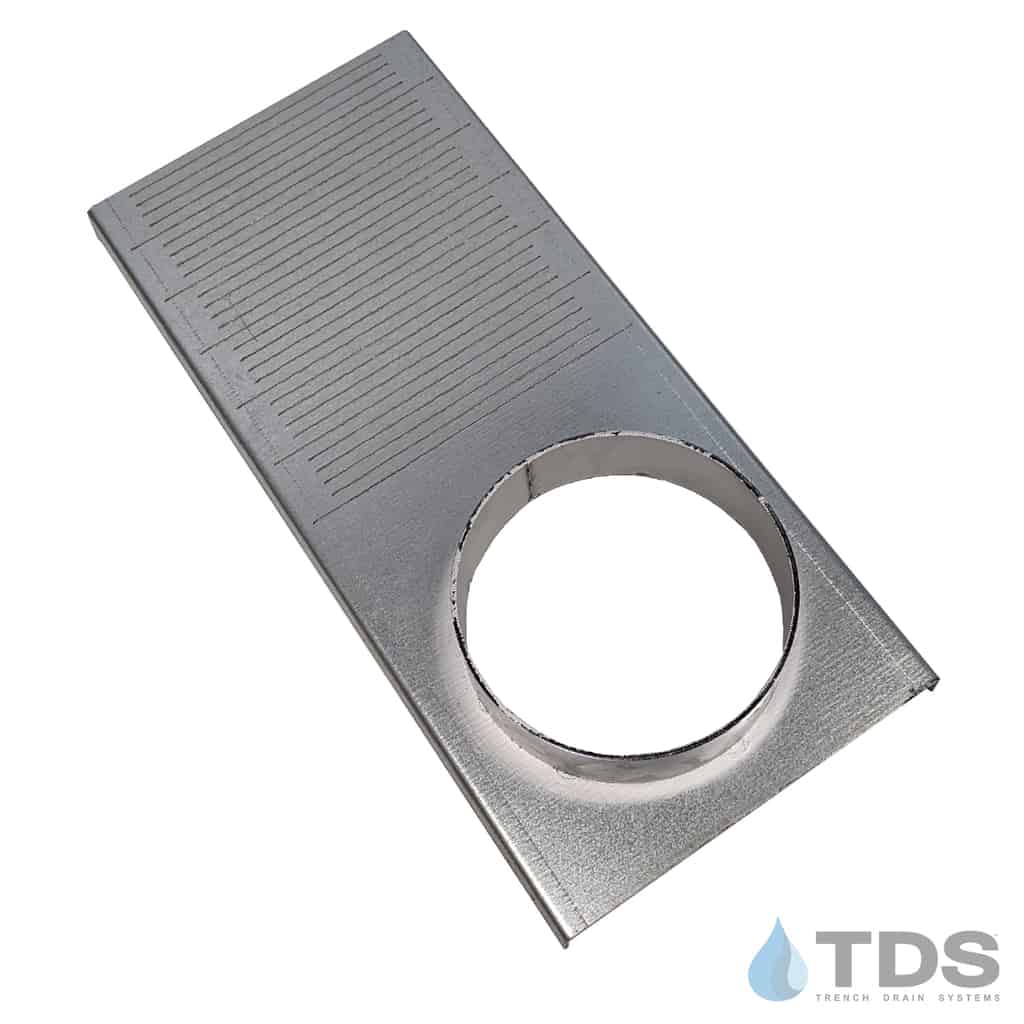

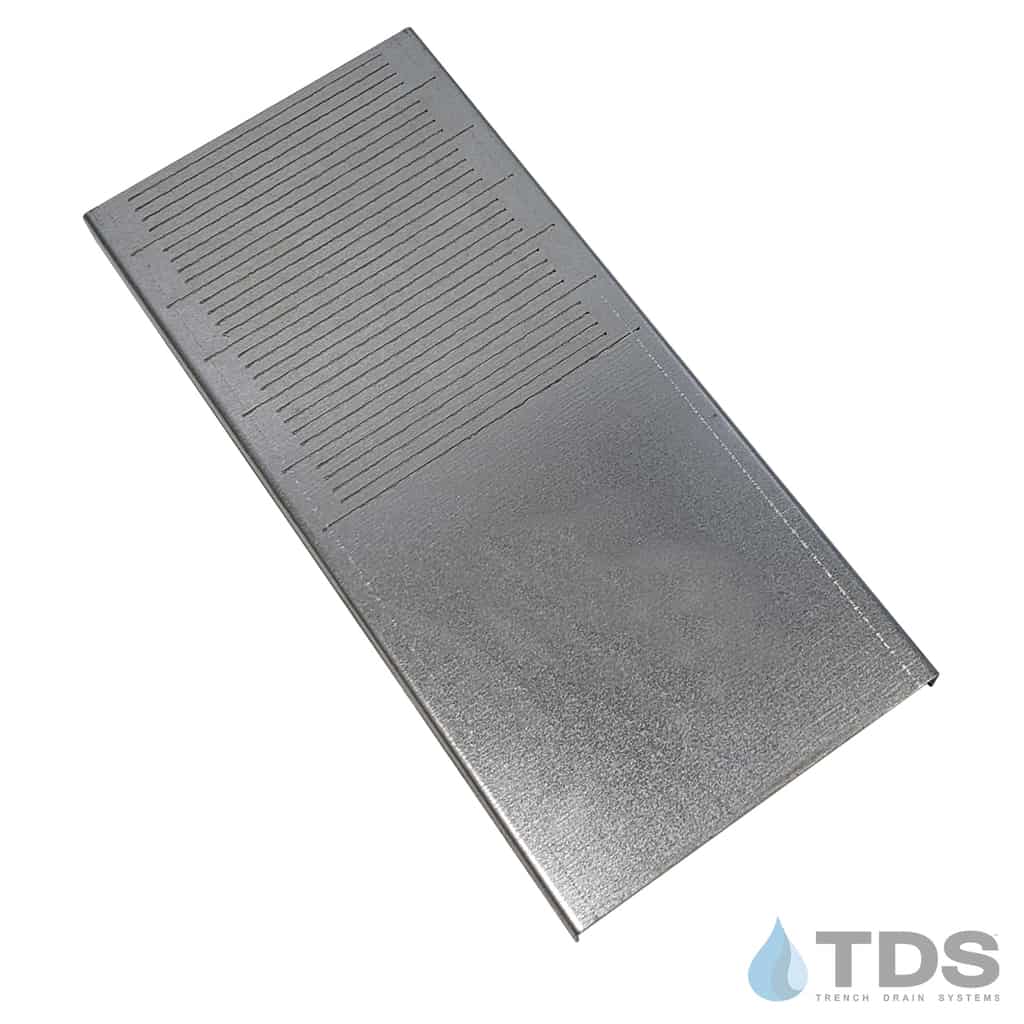

• End Cap (not included with half channels)
• End Outlet (not included with half channels)

Half Meter/2-foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

Large Project? Request Quote!

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.

Grating is also available in a Baked-on Oil Finish. Request your quote today!
