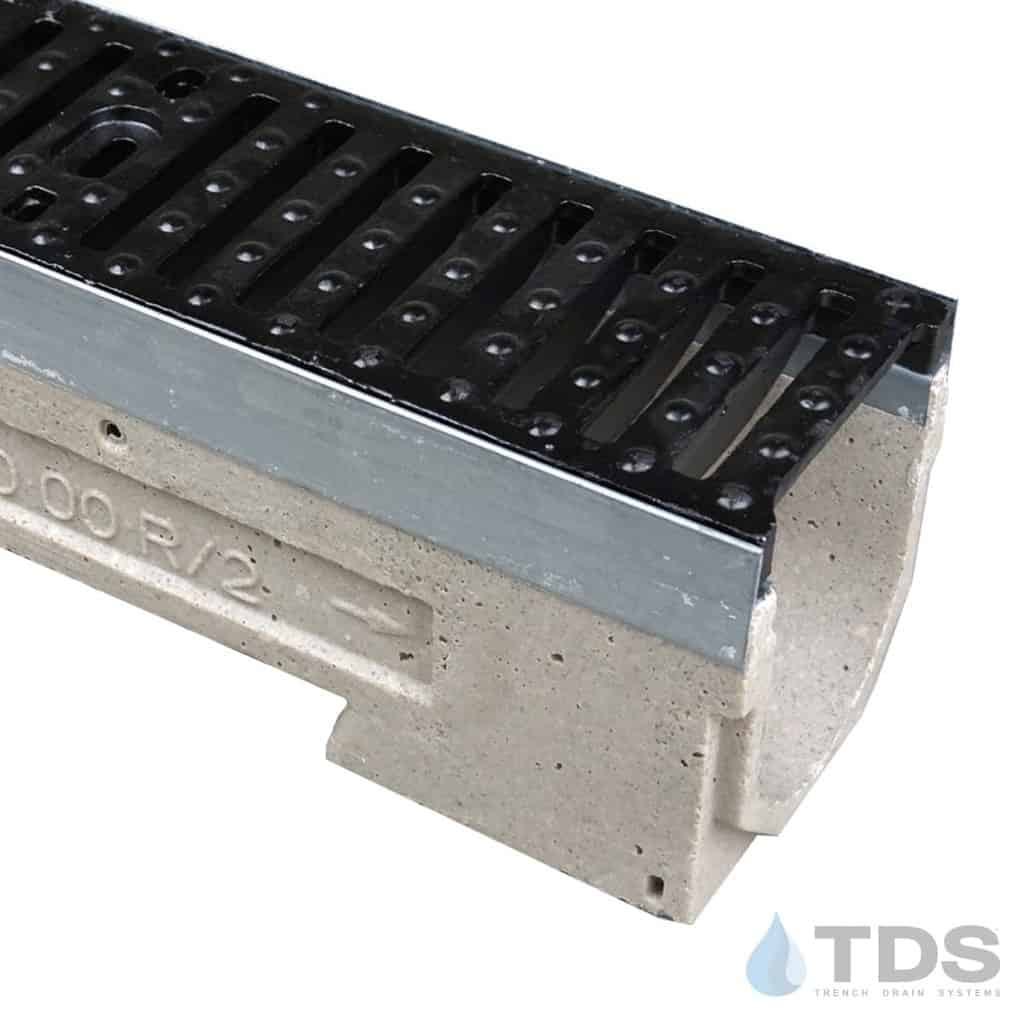

ULMA U100K Drainage Kit w/ TDS 461D Slotted Ductile Iron Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100K

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Ductile Iron Slotted Grate Class E on ULMA U100K

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

Polymer concrete Linear Drainage Channel ULMA, type U 100: External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% pre-sloped channels to collect rainwater in 1 meter long units. The locking system consists of a locking bar CS 100 and screws.

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)
