ULMA M100V w/Bronze Age™ WAVE Ductile Iron Heel-Proof Grate - RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: M100V

Grate Load Class: Class C

Grate Pattern: WAVE

Grate Pattern Style: NATURE

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Decorative

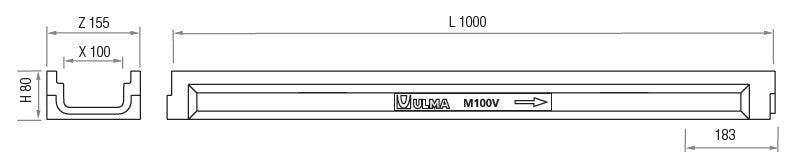

The ULMA M100V is a 5" wide shallow neutral linear trench drain channel. The ULMA M100V channel has an external width of 130mm (5.12"), an internal width of 100mm (3.94"), and is supplied with an overall height of 80mm (3.15"). Each channel is 1 meter in length. Each channel has one 4" diameter knock-out (Drill-out) for bottom outlet capability.

Bronze Age™ decorative ductile iron grate with the WAVE pattern is a TDS exclusive and is available in a natural raw finish. The black coating on grates will slowly turn to the dark brown color you normally see on parking lot grates.

Grating:

• BA-WAVE-0520 – Ductile Iron Decorative Grate – (Load Class C)

Drainage Kit Includes:

• Grate
• Locking Device
• Channels - Neutral sections
• Installation Chairs
• End Caps

Specification Sheet for BA-WAVE-0520

Large project? Request a Quote

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.

Grating is also available in a Baked-on Oil Finish. Request your quote today!
