ULMA D100 w/Bronze Age™ LUNA Ductile Iron Grate - RAW
ULMA D100 w/Bronze Age™ LUNA Ductile Iron Grate - RAW
PRODUCT DOCUMENTATION
-
DESCRIPTION

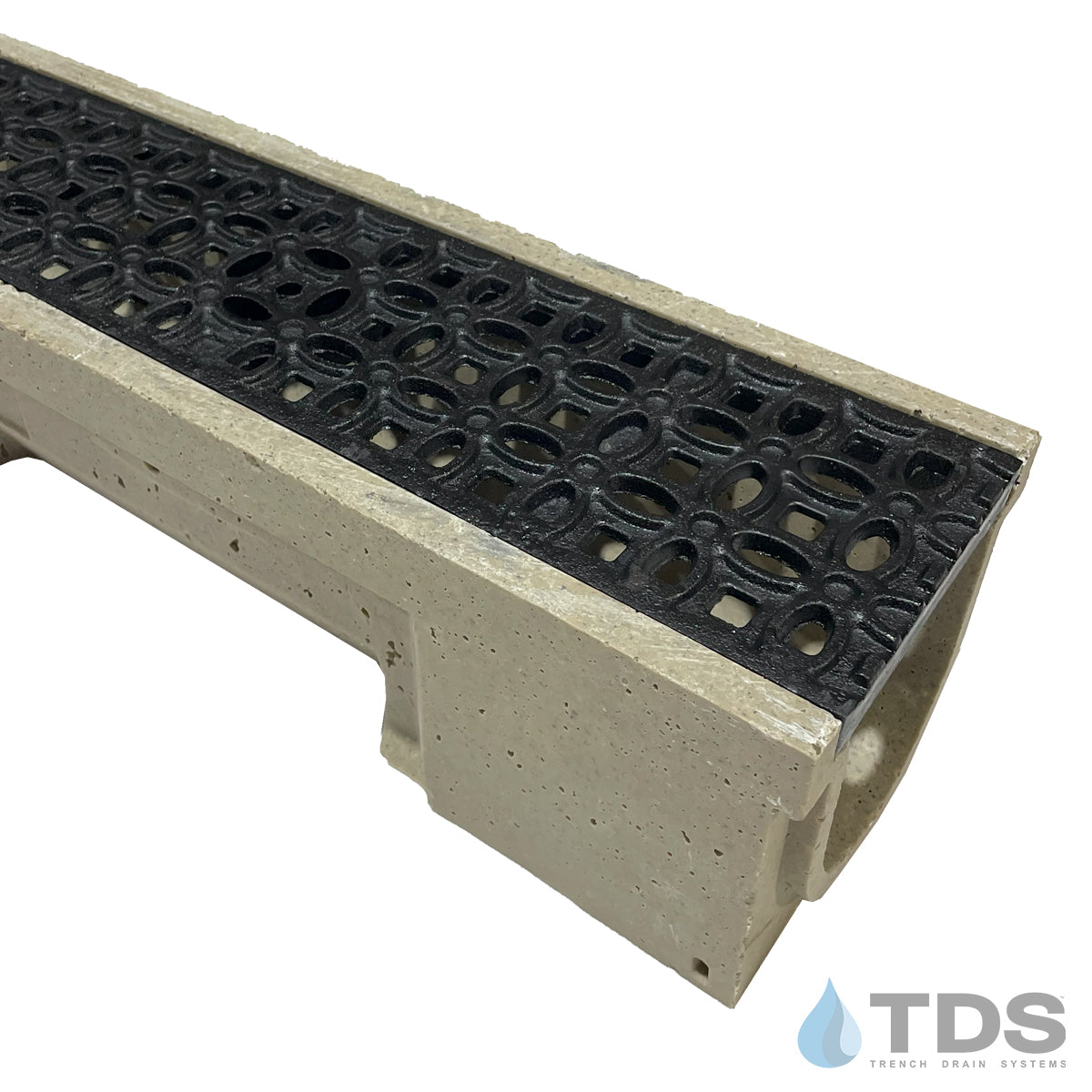

The ULMA D100 is a 5" wide neutral linear trench drain channel with stepped edges for lateral protection. The polymer concrete material allows the channels to have higher impact resistance. It also provides a smooth channel surface with a near-zero absorption rate, which helps to increase the flow rate. The ULMA D100 channels are resistant to 59 different chemicals. (Not rated for sanitary or high-temp applications.)

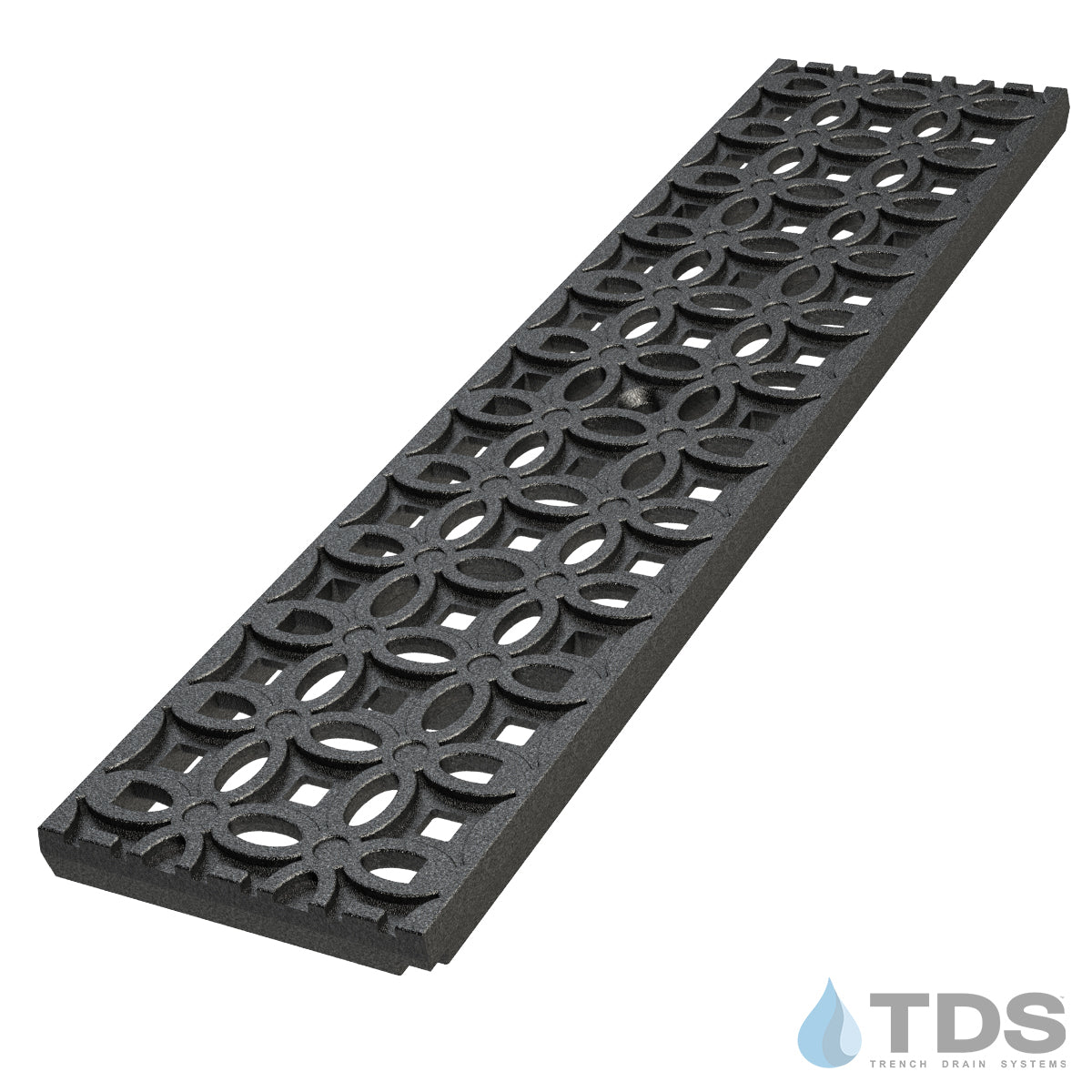

Bronze Age™ decorative ductile iron grate with the Luna pattern is a TDS exclusive and is available in a natural raw finish and is designed to fit the ULMA D100 linear trench drain system.
Specification Sheet for BA-LUNA-0520
Large project? Request a Quote
Drainage Kit Includes:
- Grate
- Locking Device
- Channels - Neutral sections
- Installation Chairs
- Universal End Cap/End Outlets
Grating:
- BA-LUNA-0520 – Ductile Iron Slotted Grate – (Load Class C)
Channel Dimensions:
- Height: 220 mm (8.7")
- Width - Outside: 155 mm (6.1")
- Width - Inside: 100 mm (3.93")
- Length: 1 meter (39.3")
- Molded side and bottom outlet
Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.
Grating is also available in a Baked-on Oil Finish. Request your quote today!
Cut-outs for the side or bottom are located on the channel for easy installation. A Core drill is available before shipment (at an additional cost).
