ULMA U100K Drainage Kit with ULMA Heel-Proof 406 Mesh Grate | Galvanized

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: ULMA

System: U100K

Grate Load Class: Class B

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

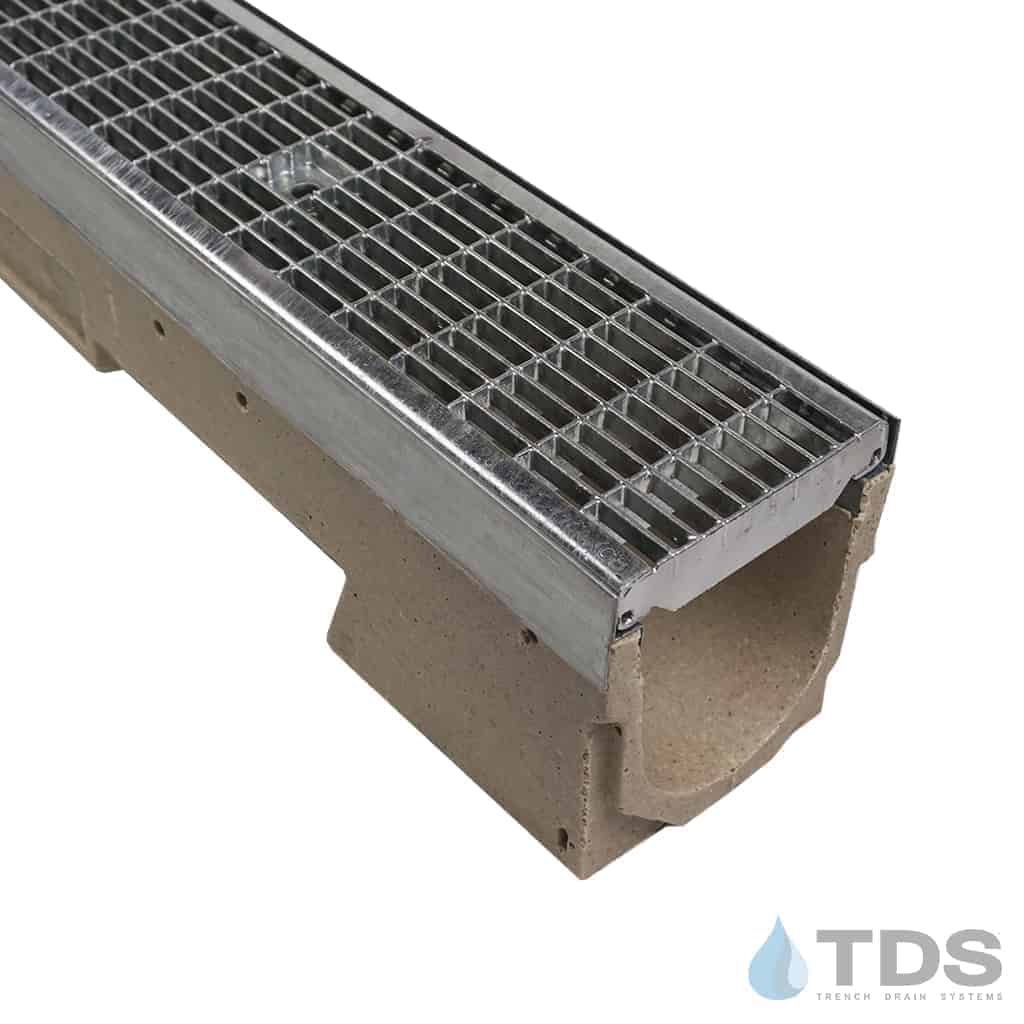

This polymer concrete trench drain kit uses the ULMA Type U100K channel with integral galvanized steel edging. It has an external width of 130mm (5.12″), an internal width of 100mm (3.94″), and is supplied with an overall height between 130 mm (5.12″) and 280 mm(11"). Channels are 1 meter in length and have a neutral slope. The locking system consists of a locking bar CS100 and hex head screws. Installation hardware and solid end caps are included.  Outlets are through the bottom of the channel. Each channel has one 4″ diameter knock-out (Drill-out).

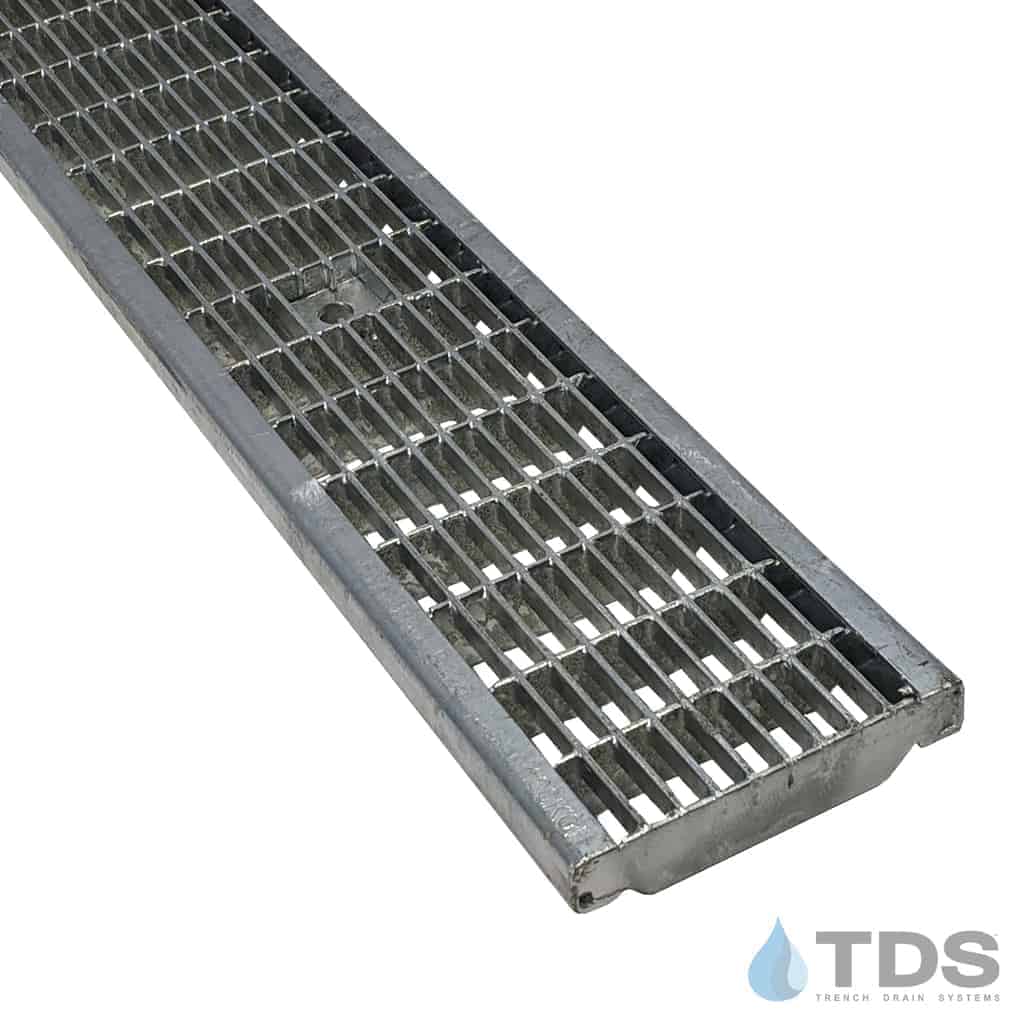

ULMA has a wide variety of drain gratings for its 100mm (3.94″) wide channels.  This kit includes a Galvanized Steel Heel-Proof Mesh Grate.  This grate is 124mm (4.89″) wide and 998mm (39.29″) in length. Load Class B.

ULMA grate part no.: GEHX100KCB
TDS grate part no.: 406
