TDS SS0642B Hold-Down Device for SS600 Ductile Iron & Stainless Steel Bar Grates

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: TDS (Trench Drain Systems)

System: SS0600

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Stainless 304

Channel Frame / Edging: Frame - None and Edging - None

Application: Chemical Processing, Food Processing, and General Purpose Drainage - Interior

Each locking device includes:
Hex Head Cap Screw
Flat Washer
Lock Bar

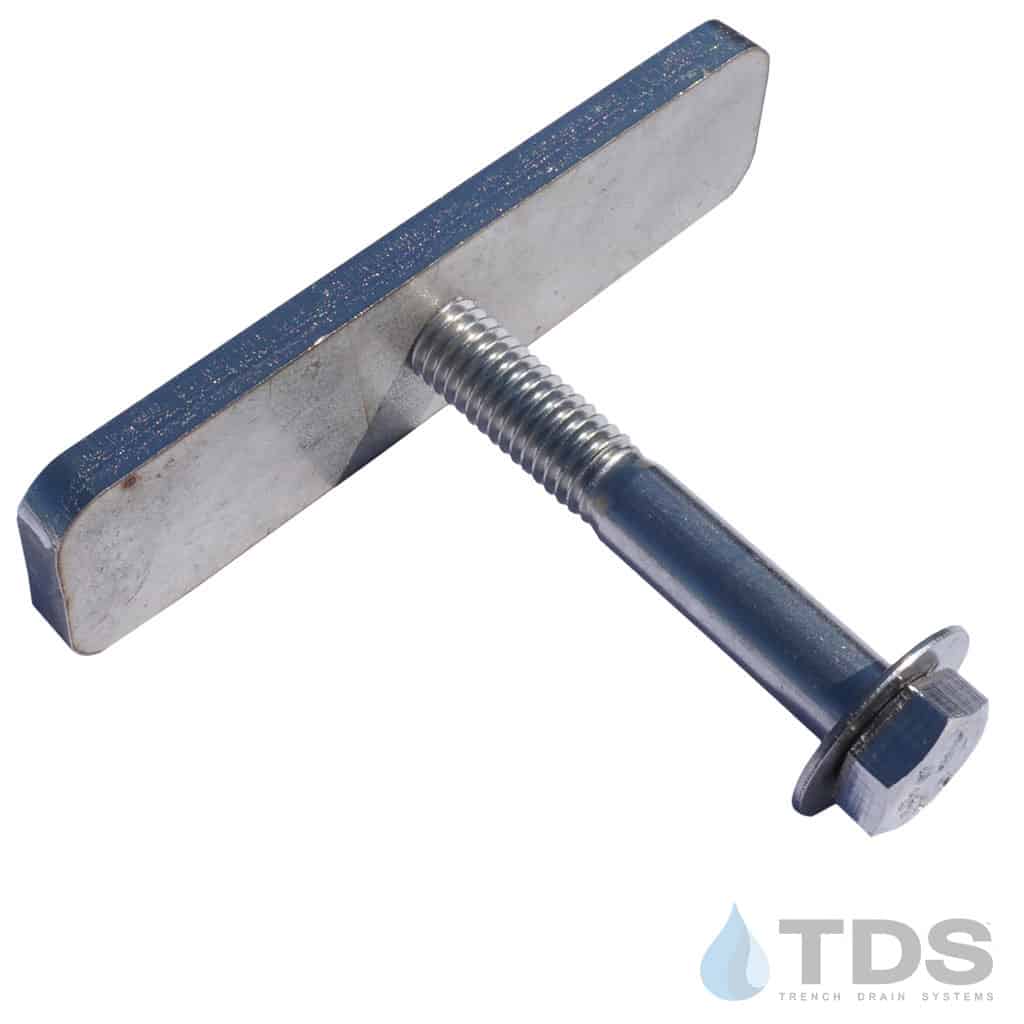

TDS SS600 series Locking device for Ductile Iron & Stainless Steel Bar Grates. Part# SS0642B

Each locking device includes:
3/8-16 X 2-1/2" Hex Head Cap Screw
3/8" Flat Washer
Lock Bar that measures 3/4" X 3-3/4" (95.25 mm)

Designed to fit: SS600 grates:

• DG0641D 24" Slotted Ductile Iron Grate
• DG0641S 24" Solid Ductile Iron Grate (ADA compliant)
• FG0644SPH 24" Vinyl Ester Fiberglass bar grating with 5/8" spacing
• FG0644SP 48" Vinyl Ester Fiberglass bar grating with 5/8" spacing
• DG0669H , DG0669 24" or 48" Stainless Steel Bar Grate
• DG0675HD 24" Ductile Iron Transverse Slotted Grate (ADA compliant)
• DG0692 24" Ductile Iron Patriot Grate

Specification Sheet for SS0642B

Grates need to be locked in place in situations where there's a possibility they will be driven over, preventing the grates from hopping. It also prevents debris from working in between the grates and channels which can ultimately damage the grates. This helps to provide system integrity when used appropriately.
