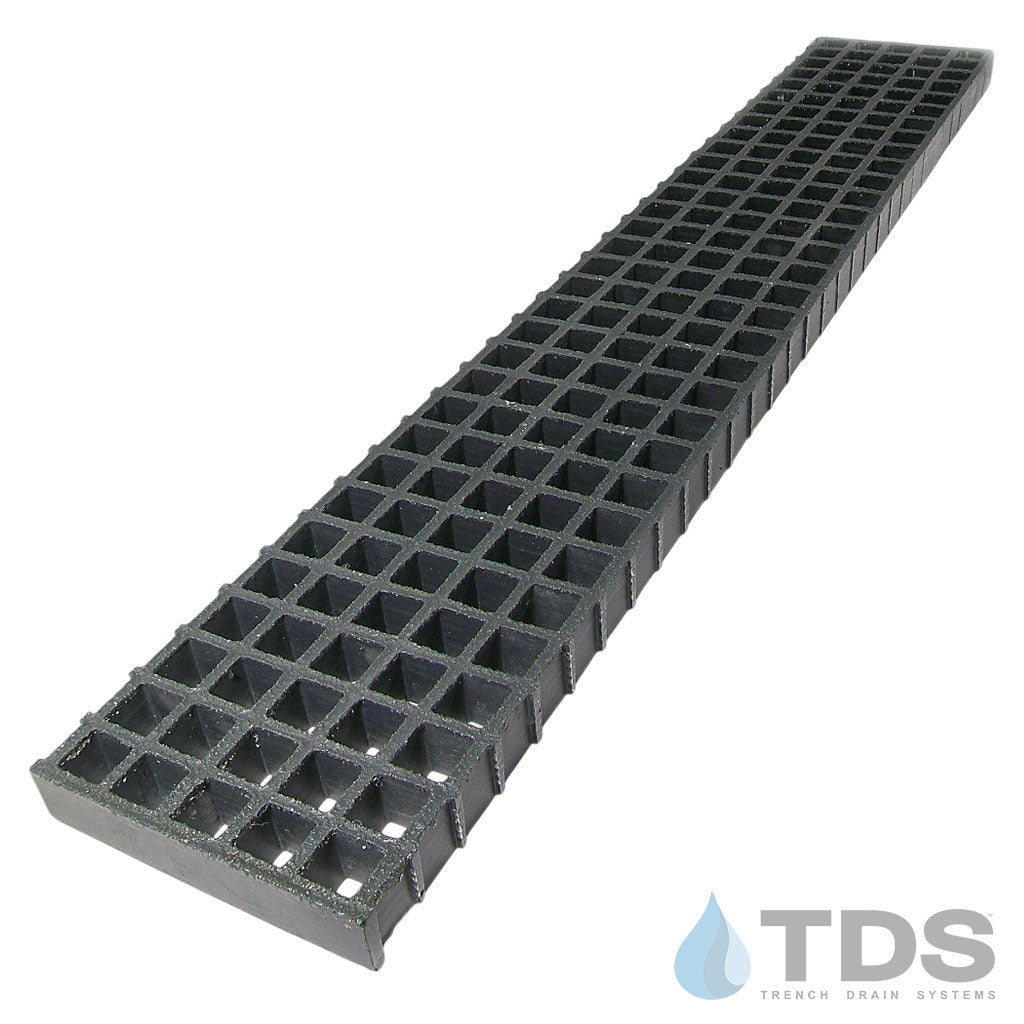

TDS FG3045 Class B Fiberglass 1.5" Sq. Mesh 8" x 48" Grate

Grate Width: 8.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - 1.50" Sq Mesh

Manufacturer: TDS (Trench Drain Systems)

System: 3000 Series (Replacement Parts Only), FE0600, FF Series, and FP1200 (Replacement Part Only)

Grate Load Class: Class B

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Fiberglass - Polyester, Cast in Place / EPS Foam, and Form Your Own OR Site Built

Channel Frame / Edging: Edging - Galvanized and Edging - Stainless

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

Fiberglass mesh Class B grate for the 3000 Series by Trench Drain Systems™. Normally used in areas where extreme chemical resistance is needed, but with no heavy loads.  Mesh openings measure 1-3/16" square. Gritted top non-slip surface. Locking devices not included (DA3042M)

Material: Fiberglass reinforced Isophthalic Polyester Resin (FRP)

Nominal measurement: 8" x 48"
