TDS DG3045 Class B Fiberglass 1.5" Sq. Mesh 8" x 48" Grate

TDS DG3045 Class B Fiberglass 1.5" Sq. Mesh 8" x 48" Grate

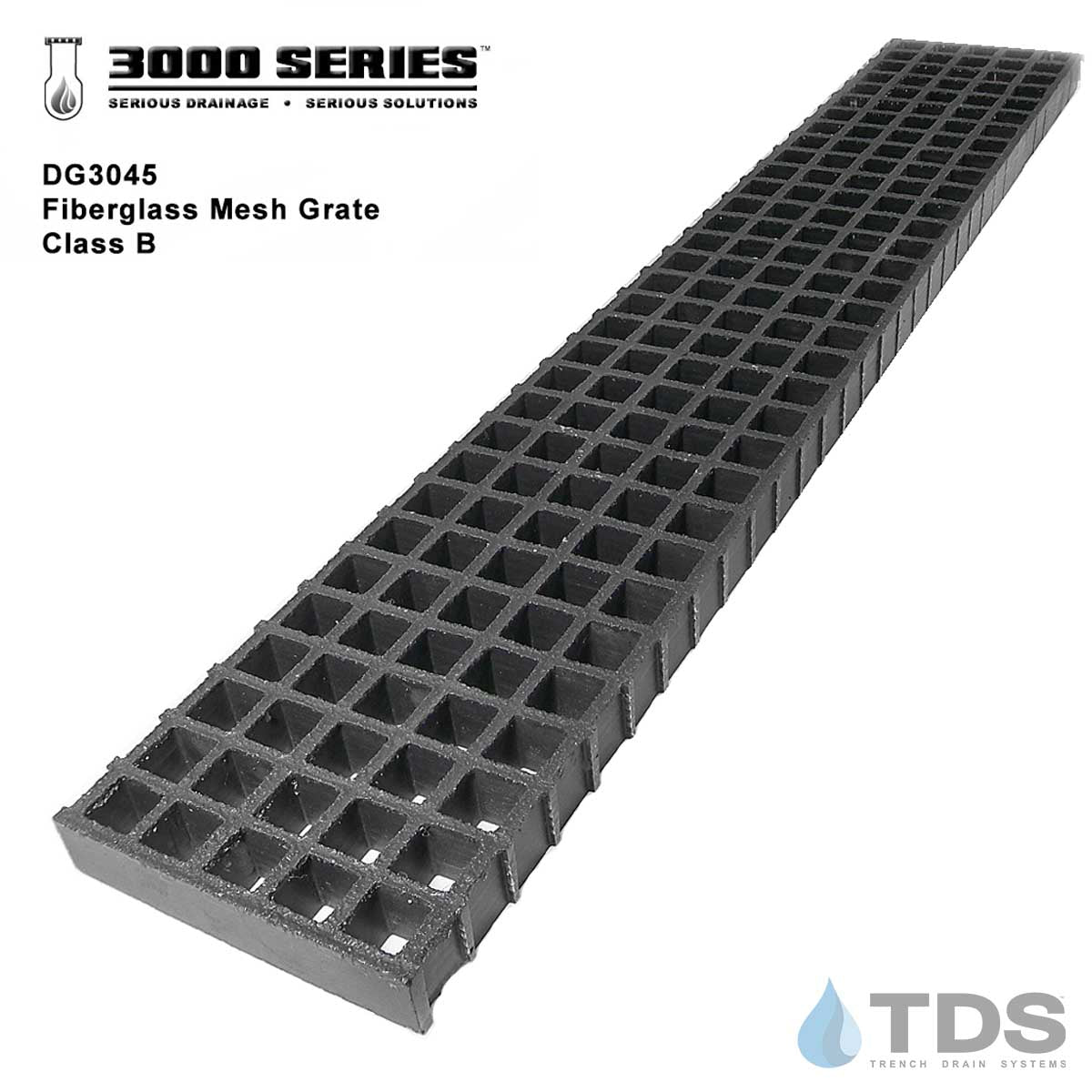

  • TDS-3000-series-fg-mesh-grate-DG3045-fullview
1 1

Drainage Kits

DG3045

Fiberglass mesh grate for 3000 Series channel. Large project? Request a Quote
$296.41 USD
$0.00 USD $296.41 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 8.00"
  • Grate Thickness: 1.50"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Fiberglass - 1.5" Mesh
  • Manufacturer: TDS
  • System: 3000 Series, FE0600, FF Series, FP1200
  • Grate Load Class: B
  • Grate Pattern: Mesh
  • Grate Pattern Style: Industrial
  • Channel Material: Fiberglass, EPS Foam, Form Your Own OR Site Built
  • Frame/Edging: Galvanized, Stainless
  • Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Transportation

Description

Fiberglass mesh grate for 3000 Series channel.
Large project? Request a Quote

Fiberglass mesh Class B grate for the 3000 Series by Trench Drain Systems™. Normally used in areas where extreme chemical resistance is needed but with no heavy loads.  Mesh openings measure 1-3/16" square. Gritted top non-slip surface. Locking devices not included (DA3042M)

Material: Fiberglass reinforced Isophthalic Polyester Resin (FRP)

Nominal measurement: 8" x 48"
