POLYCAST DG0644SPH Class C Spacing 3/8" Fiberglass BAR 6" x 24" Grate

POLYCAST DG0644SPH Class C Spacing 3/8" Fiberglass BAR 6" x 24" Grate

Skip to product information
1 of 1

Drainage Kits

SKU:DG0644SPH

Fiberglass grate for SS600 or POLYCAST®  Drain Systems.
Large project? Request a Quote
Regular price $130.50 USD
Regular price $0.00 USD Sale price $130.50 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 5.25"
  • Grate Thickness: 0.75"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Fiberglass - Bar
  • Manufacturer: Polycast
  • System: Polycast 500, Polycast 600, Polycast 700
  • Grate Load Class: C
  • Grate Pattern: Bar
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl-Ester
  • Frame/Edging: No Frame, No Edging, Galvanized, Stainless, Ductile Iron, HDPE
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Sport Complex - Recreational, Transportation

Description

Fiberglass grate for SS600 or POLYCAST®  Drain Systems.
Large project? Request a Quote

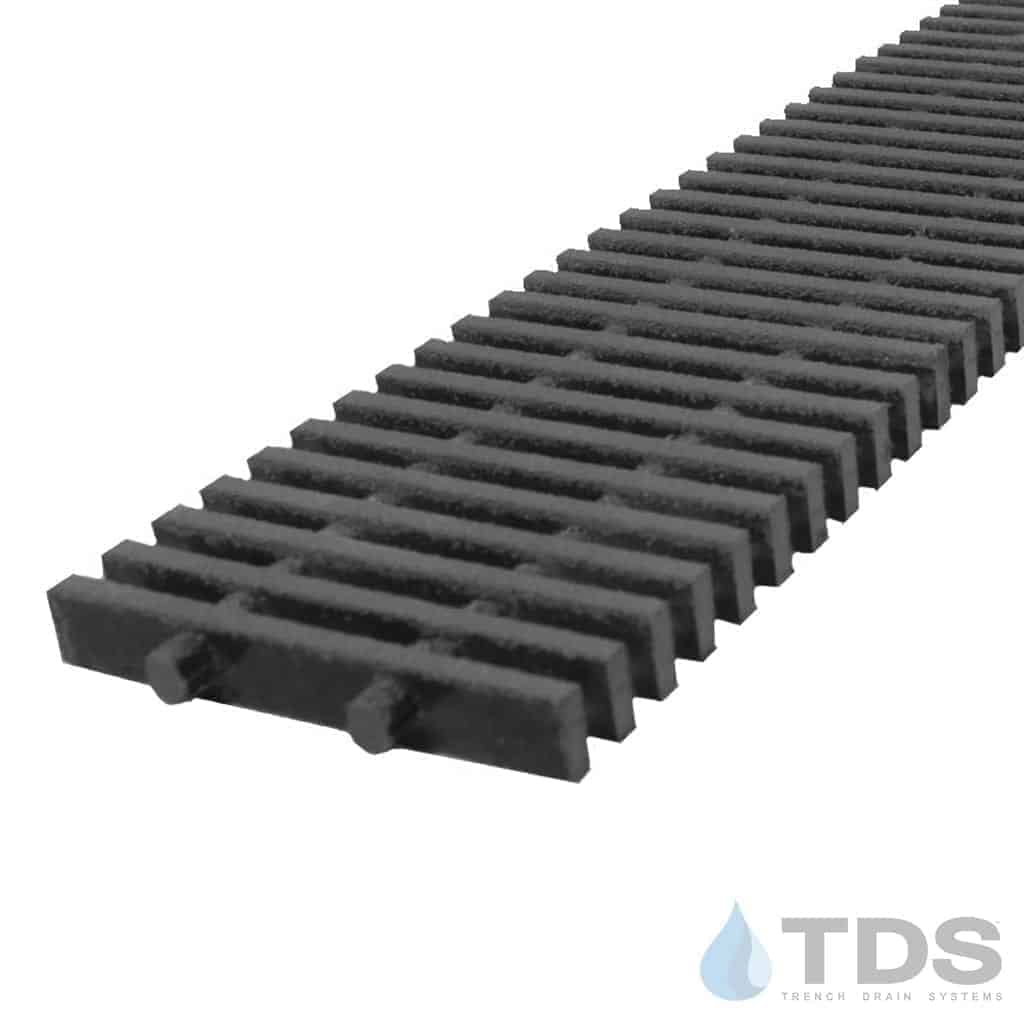

Fiberglass reinforced Isophthalic Polyester Resin (FRP) trench grates. Designed to fit the SS600 Series drain and the POLYCAST®  500, 600 and 700 Series channel drain system. Normally used in areas where extreme chemical resistance is needed but with no heavy loads.  Separation between bars is 0.38".  Gritted top non-slip surface.

Locking devices not included. Select a system below for the related locking device:

POLYCAST® 600 locking device (4 per grate) for DG0644

POLYCAST® 700 locking device (4 per grate) for DG0644

Specification Sheet
