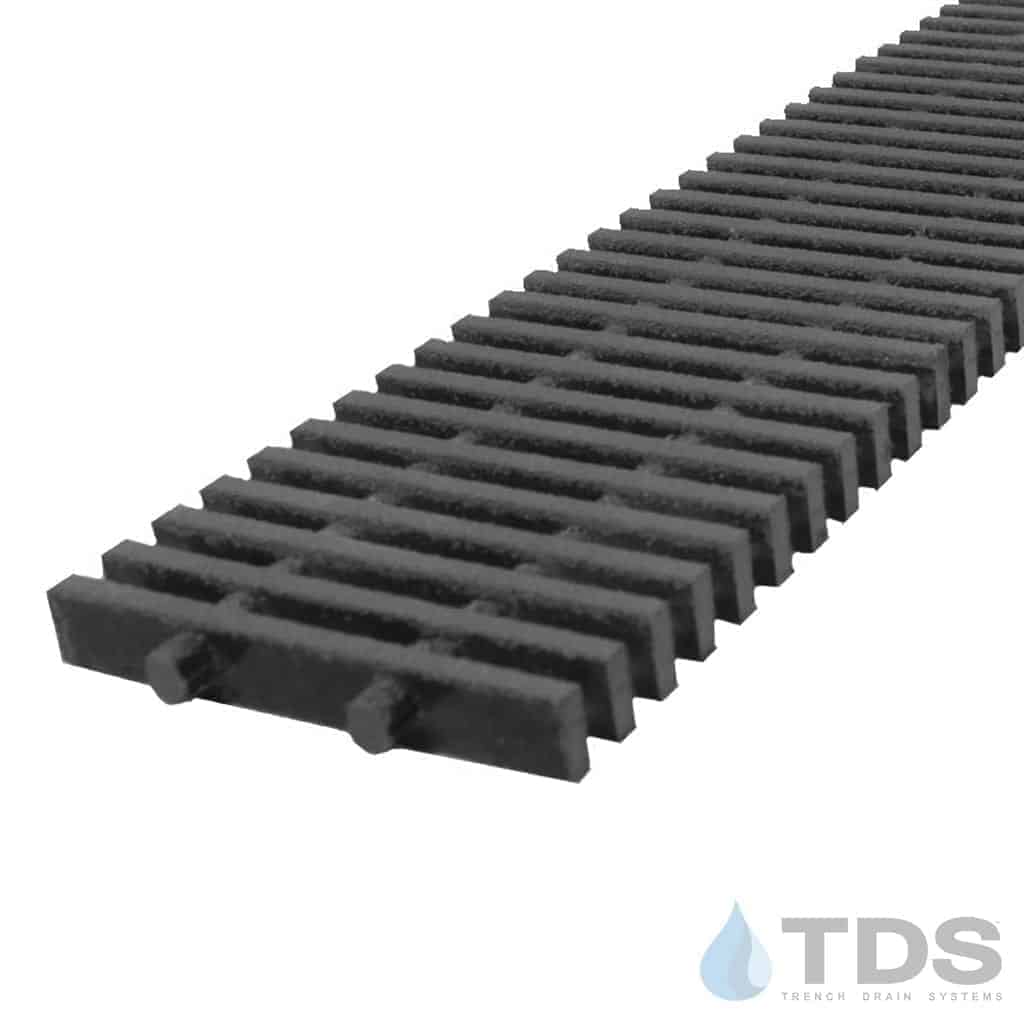

POLYCAST FG0644SP Class C Spacing 3/8" Fiberglass BAR 6" x 48" Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500, POLYCAST 600, and POLYCAST 700

Grate Load Class: Class C

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Fiberglass grate for SS600 or POLYCAST® Drain Systems.
Large project? Request a Quote

Fiberglass-reinforced Isophthalic Polyester Resin (FRP) trench grates. Designed to fit the SS600 Series drain and the POLYCAST® 500, 600 and 700 Series channel drain system. Normally used in areas where extreme chemical resistance is needed but with no heavy loads. The separation between bars is 0.38". Gritted top non-slip surface.

Locking devices are not included. Select a system below for the related locking device:

POLYCAST® 500 locking device (2 per grate) for FG0644

POLYCAST® 600 locking device (2 per grate) for FG0644

POLYCAST® 700 locking device (2 per grate) for FG0644

Specification Sheet for FG0644SP
